1NO + 1NC Contacts
The XE2-SP2151 provides two poles with one normally open and one normally closed contact.

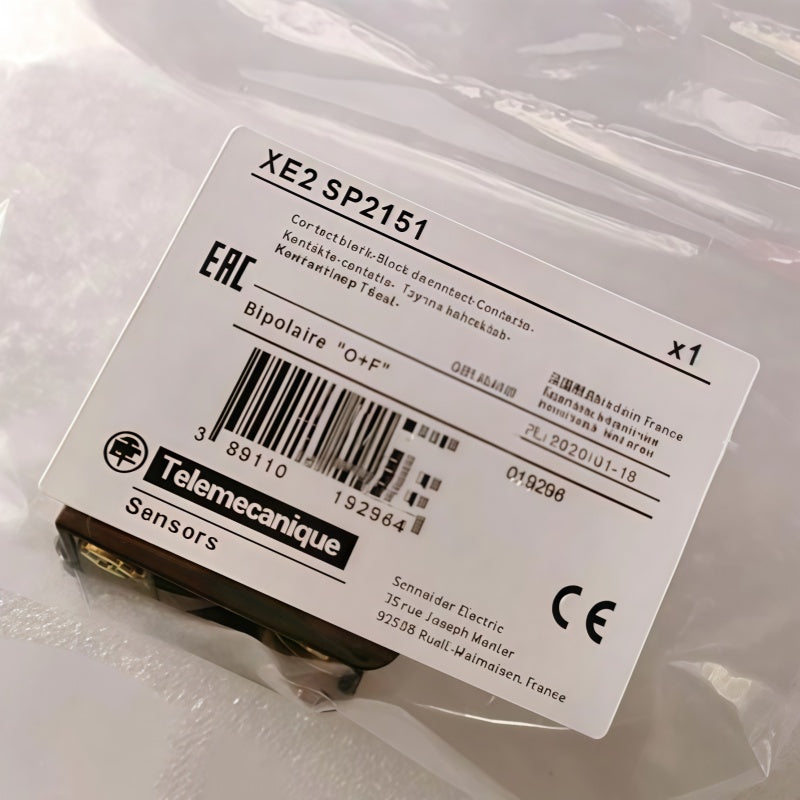

Schneider XE2-SP2151 Limit Switch Contact Block 1NO+1NC Snap Action
Available in stock (200)
Regular price
$15.37
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | XE2-SP2151 |
| Product Category | Limit Switch Contact Block |
| Product Range | OsiSense XC |
| Series Format | Standard Format |
| Device Short Name | XE2S |
| Number of Poles | 2 |
| Contact Configuration | 1 NO + 1 NC |
| Contact Operation | Snap Action |
| Electrical Connection | Screw-Clamp Terminals |
| Clamping Capacity | 1 x 0.34 to 2 x 1.5 mm² |
| Contact Material | Silver-Plated Contacts |
| Positive Opening | With |
| Minimum Actuation Speed | 0.01 mm/s |
| AC Contact Rating | A300, AC-15, 240 V, 3 A |
| DC Contact Rating | Q300, DC-13, 250 V, 0.27 A |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Withstand Voltage | 6 kV |
| Resistance Across Terminals | <25 mΩ |
Key Features
Snap-Action Operation
Schneider documentation identifies snap-action contact operation for this limit switch contact block.
Screw-Clamp Terminals
The electrical connection uses screw-clamp terminals with a documented conductor clamping capacity from 1 x 0.34 to 2 x 1.5 mm².
Positive Opening
The contact block incorporates the documented positive-opening contact function.
A300 AC Contact Rating
The published contact designation includes A300 AC-15 operation at 240 V and 3 A.
Q300 DC Contact Rating
The published DC contact designation is Q300 DC-13 at 250 V and 0.27 A.
Applications
- Industrial limit switch assemblies
- Machine position detection circuits
- Mechanical travel limit monitoring
- Industrial equipment control circuits
- Conveyor position control
- Machine automation systems
- Production equipment switching
- Limit switch maintenance projects
Purchase Information
We support online purchase of the Schneider XE2-SP2151 Limit Switch Contact Block. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider XE2-SP2151?
Schneider XE2-SP2151 is a two-pole limit switch contact block with one normally open contact, one normally closed contact and snap-action operation.
How many poles does XE2-SP2151 have?
The documented contact block configuration has two poles.
What contact arrangement does XE2-SP2151 use?
The documented contact composition is 1 NO + 1 NC.
What type of contact operation does XE2-SP2151 use?
Schneider specifies snap-action contact operation.
What electrical connection does XE2-SP2151 use?
The contact block uses screw-clamp terminals with a documented conductor capacity from 1 x 0.34 to 2 x 1.5 mm².
What is the AC contact rating of XE2-SP2151?
The published designation is A300, AC-15, with documented values of 240 V and 3 A.
What is the DC contact rating of XE2-SP2151?
The published designation is Q300, DC-13, with documented values of 250 V and 0.27 A.
What rated insulation voltage is specified?
The documented rated insulation voltage is 500 V under IEC 60947-1 conditions.
What impulse withstand voltage is specified?
The documented rated impulse withstand voltage is 6 kV.
What is the minimum actuation speed?
The published minimum actuation speed is 0.01 mm/s.
What applications can XE2-SP2151 be considered for?
It can be considered for industrial limit-switch and machine-position control applications after the contact configuration, electrical ratings and mechanical requirements have been checked.
What should be checked before ordering XE2-SP2151?
Check the complete model number, required 1 NO + 1 NC contact configuration, snap-action operation, terminal requirements, AC or DC contact ratings and the limit-switch body requirements before ordering.
