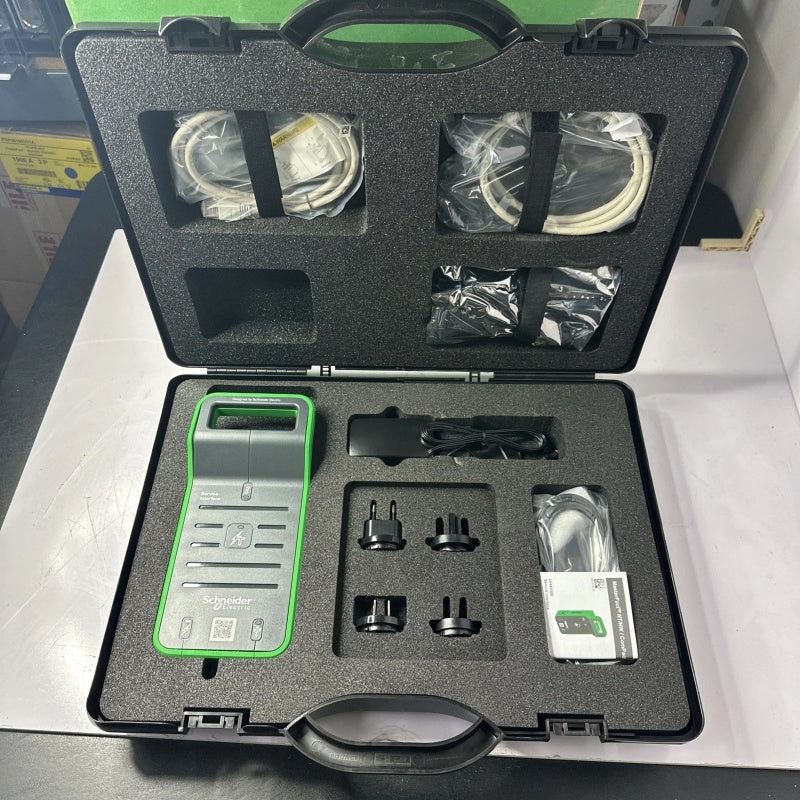

Schneider LV485500 Multi-Function Test Box 24VDC 10W USB
Available in stock (200)
Regular price
$5,447.58
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | LV485500 |
| Product Category | Multi-Function Test Box |
| Manufacturer Designation | Service Interface Kit |
| Device Type | Portable Field Testing Instrument |
| Input Voltage | 24 VDC -20%/+10% |
| Maximum Input Current | 525 mA |
| Rated Power | 10 W |
| Power Output | 24 VDC -20%/+10%, 120 mA |
| Computer Interface | Mini-B USB Port |
| External Power Adapter Input | 110-230 VAC |
| External Power Adapter Output | 24 VDC |
| External Power Adapter Rated Power | 12 W |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Mechanical Impact Rating | IK07 |
| Mounting | Wall or Table Mount Module |
| Mounting Connection | Magnet |
Key Features
10W Rated Power
Schneider specifies a rated power of 10 W for the LV485500 Service Interface.
Mini-B USB Port
A Mini-B USB port is provided for connection to a computer during supported testing and configuration procedures.
24VDC Power Output
The Service Interface provides a documented 24 VDC output rated at 120 mA for applicable external devices.
Field Testing Functions
LV485500 is designed for field testing and configuration of supported MicroLogic trip units and configuration of Enerlin'X devices.
Magnetic Mounting
The documented mechanical configuration includes magnetic mounting for positioning the Service Interface during field work.
Applications
- MicroLogic trip unit testing
- Circuit breaker configuration
- Automatic trip curve testing
- Zone-selective interlocking testing
- Force trip testing
- Enerlin'X device configuration
- Field commissioning activities
- Electrical maintenance testing
Purchase Information
We support online purchase of the Schneider LV485500 Multi-Function Test Box. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider LV485500?
Schneider LV485500 is designated by the manufacturer as a Service Interface Kit and is a portable instrument designed for field testing and configuration tasks.
What input voltage does LV485500 use?
The documented input voltage is 24 VDC with a tolerance of -20%/+10%.
What is the rated power of LV485500?
Schneider specifies a rated power of 10 W for the Service Interface.
What is the maximum input current of LV485500?
The documented maximum input current is 525 mA.
Does LV485500 provide a 24VDC output?
Yes. The documented output is 24 VDC with a -20%/+10% tolerance and a rated output current of 120 mA.
What USB interface does LV485500 use?
The Service Interface hardware includes a Mini-B USB port for computer connection.
What is the operating temperature range of LV485500?
The documented operating temperature range is -10°C to +55°C.
What mechanical impact rating is specified?
The documented mechanical impact rating is IK07 according to IEC 62262.
What mounting arrangement does LV485500 use?
Schneider specifies a wall or table mount module configuration with magnetic mounting features.
What applications can LV485500 be considered for?
It is designed for supported circuit breaker trip unit testing, configuration, commissioning and related field maintenance procedures.
Can LV485500 be used with any circuit breaker?
The specific circuit breaker family, MicroLogic trip unit, test cable and required testing function should be verified against Schneider documentation before use.
What should be checked before ordering LV485500?
Check the complete LV485500 part number, target circuit breaker and trip unit, required test functions, cable requirements, 24 VDC power requirements and computer connection requirements before purchasing.
