Reversing Contactor
The LC2D32F7C is a TeSys Deca reversing contactor designed for reversing motor control circuits.

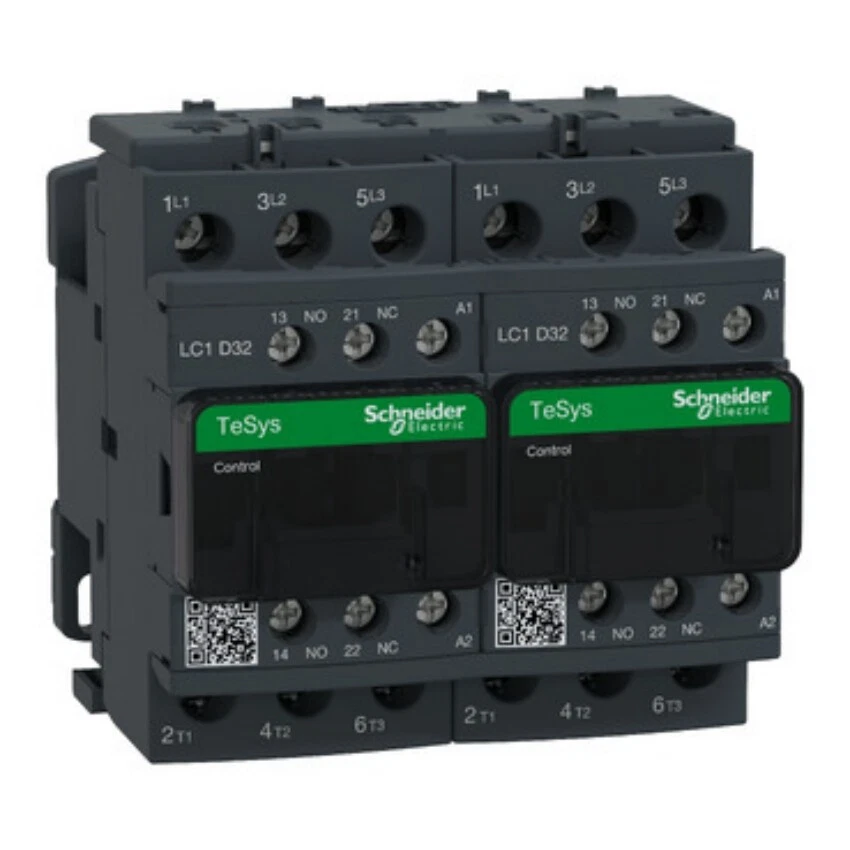

Schneider LC2D32F7C Reversing Contactor 32A 110VAC 3-Pole
Available in stock (200)
Regular price
$100.79
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | LC2D32F7C |
| Product Category | Reversing Contactor |
| Product Range | TeSys Deca |
| Poles | 3P |
| Power Pole Contact Composition | 3 NO |
| Rated Operational Current | 32 A |
| Utilisation Category | AC-3 |
| Operational Voltage | Up to 440 VAC |
| Control Circuit Voltage | 110 VAC |
| Control Circuit Frequency | 50/60 Hz |
| Connection Type | Screw Clamp Terminals |
Key Features
32A AC-3 Rating
The documented rated operational current is 32 A for AC-3 motor switching applications.
110VAC Coil
The documented control circuit uses a 110 VAC coil operating at 50/60 Hz.
3-Pole Configuration
The power circuit configuration uses three poles with three normally open power contacts.
Up to 440VAC
The documented AC-3 operational voltage is specified up to 440 VAC.
Screw Clamp Terminals
The LC2D32F7C uses screw clamp terminals for documented electrical connections.
Applications
- Three-phase motor reversing control
- Forward and reverse motor circuits
- Industrial machine motor control
- Conveyor direction control
- Material handling equipment control
- Industrial control panels
- Automation motor switching circuits
- Machine direction control systems
Purchase Information
We support online purchase of the Schneider LC2D32F7C Reversing Contactor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider LC2D32F7C?
Schneider LC2D32F7C is a TeSys Deca three-pole reversing contactor for motor control applications.
What is the rated operational current of LC2D32F7C?
The documented rated operational current is 32 A for AC-3 applications.
What coil voltage does LC2D32F7C use?
The documented control circuit voltage is 110 VAC at 50/60 Hz.
How many power poles does LC2D32F7C have?
The documented configuration uses three power poles with three normally open contacts.
What utilisation category is specified for LC2D32F7C?
Schneider specifies AC-3 for the documented motor switching rating.
What operational voltage is specified for LC2D32F7C?
The documented AC-3 operational voltage is up to 440 VAC.
What terminal type does LC2D32F7C use?
The documented electrical connection uses screw clamp terminals.
What applications can LC2D32F7C be considered for?
It can be considered for three-phase motor reversing, forward and reverse control, conveyor direction control and industrial machine motor circuits after the electrical requirements have been checked.
Can LC2D32F7C be used for forward and reverse motor control?
Yes. The LC2D32F7C is a reversing contactor configuration intended for motor direction control applications within its documented electrical ratings.
Can LC2D32F7C be considered for an existing motor control system?
The complete model number, motor current, utilisation category, operational voltage, 110 VAC control circuit and connection requirements should be checked against the existing system.
What should be checked before ordering LC2D32F7C?
Check the complete LC2D32F7C model number, 32 A AC-3 rating, three-pole configuration, motor operating voltage, 110 VAC 50/60 Hz control voltage and terminal requirements before purchasing.
