Reversing Contactor
The LC2D32F7 is a TeSys Deca reversing contactor designed for motor control and direction switching applications.

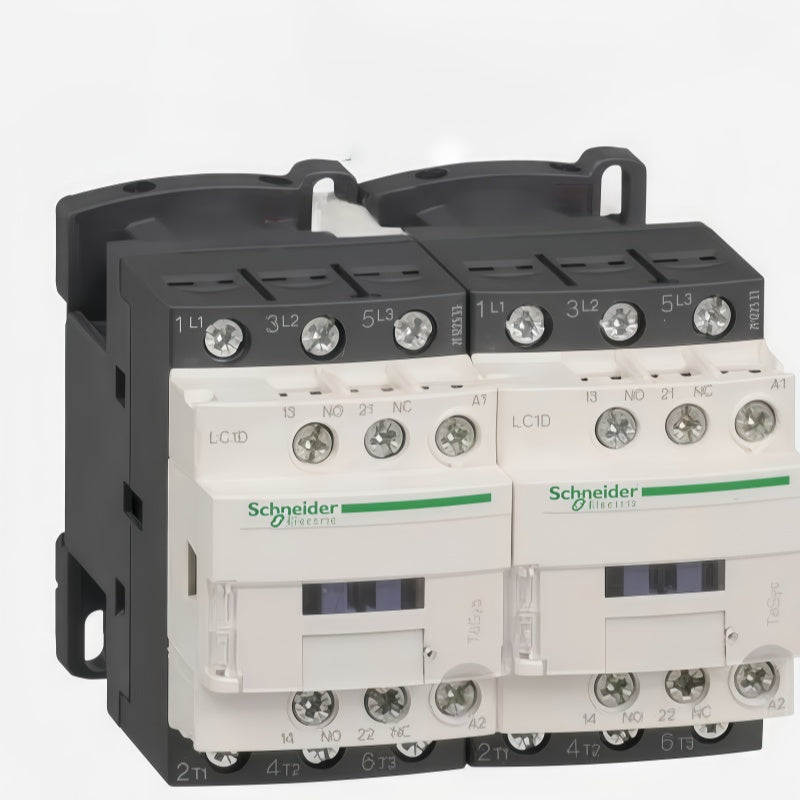

Schneider LC2D32F7 Reversing Contactor 32A 110VAC 3-Pole
Available in stock (200)
Regular price
$180.64
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | LC2D32F7 |
| Product Category | Reversing Contactor |
| Product Range | TeSys Deca |
| Device Short Name | LC2D |
| Contactor Application | Motor Control |
| Poles | 3P |
| Power Pole Contact Composition | 3 NO |
| Rated Operational Current | 32 A at ≤440 VAC, AC-3 |
| Utilisation Category | AC-1, AC-3 |
| Rated Operational Voltage | ≤690 VAC, 25-400 Hz |
| Control Circuit Type | AC, 50/60 Hz |
| Control Circuit Voltage | 110 VAC |
| Motor Power | 15 kW at 380-440 VAC, 50 Hz |
| Device Presentation | Preassembled with Reversing Power Busbar |
| Connection Type | Screw Clamp Terminals |
Key Features
32A AC-3 Rating
The documented rated operational current is 32 A at up to 440 VAC for AC-3 motor control applications.
110VAC Control Coil
The documented control circuit voltage is 110 VAC with operation at 50/60 Hz.
3-Pole Power Circuit
The power circuit uses a three-pole configuration with three normally open power contacts.
15kW Motor Rating
Schneider specifies a motor power rating of 15 kW at 380-440 VAC and 50 Hz.
Preassembled Reversing Circuit
The LC2D32F7 is supplied as a reversing contactor assembly with a reversing power busbar and mechanical interlocking arrangement.
Applications
- Three-phase motor reversing control
- Forward and reverse motor circuits
- Industrial machine motor control
- Conveyor direction control
- Material handling equipment control
- Industrial control panels
- Automation motor switching circuits
- Machine direction control systems
Purchase Information
We support online purchase of the Schneider LC2D32F7 Reversing Contactor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider LC2D32F7?
Schneider LC2D32F7 is a TeSys Deca three-pole reversing contactor designed for motor control applications.
What is the rated operational current of LC2D32F7?
The documented rated operational current is 32 A at up to 440 VAC for AC-3 applications.
What control voltage does LC2D32F7 use?
The documented control circuit voltage is 110 VAC at 50/60 Hz.
How many power poles does LC2D32F7 have?
The documented power circuit configuration uses three poles with three normally open power contacts.
What utilisation categories are specified for LC2D32F7?
Schneider documentation specifies AC-1 and AC-3 utilisation categories.
What motor power is specified for LC2D32F7?
The documented motor power rating is 15 kW at 380-440 VAC and 50 Hz.
What is the rated operational voltage of LC2D32F7?
The documented power circuit rated operational voltage is up to 690 VAC at 25-400 Hz.
What connection type does LC2D32F7 use?
The documented electrical connection uses screw clamp terminals.
Is LC2D32F7 supplied as a reversing contactor assembly?
Yes. Schneider specifies the device as preassembled with a reversing power busbar and mechanical interlocking arrangement.
What applications can LC2D32F7 be considered for?
It can be considered for three-phase motor reversing, forward and reverse motor control, conveyor direction control and industrial machine motor circuits after the electrical requirements have been checked.
Can LC2D32F7 be considered for an existing motor control system?
The complete model number, motor current, motor power, utilisation category, operational voltage, 110 VAC control circuit and connection requirements should be verified against the existing system requirements.
What should be checked before ordering LC2D32F7?
Check the complete LC2D32F7 model number, 32 A AC-3 rating, three-pole configuration, motor voltage and power requirements, 110 VAC 50/60 Hz control voltage and terminal requirements before purchasing.
