Omron

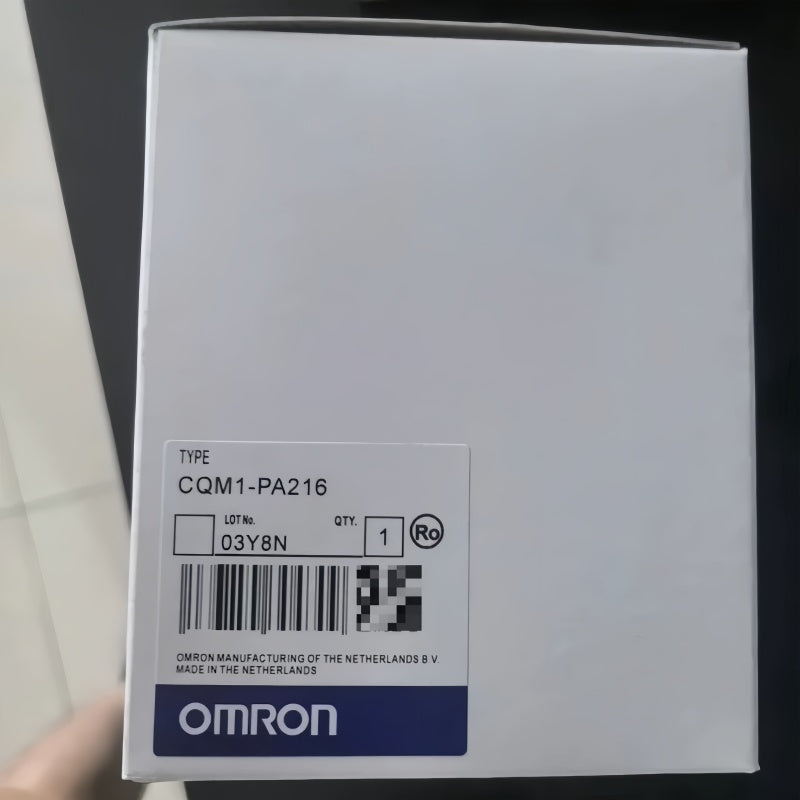

Omron CQM1-PA216 Power Supply Module 100/230 VAC for CQM1 PLC Systems
PRODUCT PRICE
USD
$265.19
0 pcs / pack
Available to order
Request a QuoteBulk Orders, Part Number Assistance, or Alternative Payment Options? Contact Our Team!
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
💳 Need a Different Payment Method?Add your items to cart and contact our team before checkout. We'll help you explore available payment arrangements.
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Omron CQM1-PA216 Power Supply Module 100/230 VAC for CQM1 PLC Systems
Product Overview
Buy Omron CQM1-PA216 Module online. The CQM1-PA216 is an AC Power Supply Module designed for Omron CQM1 programmable controller systems used in Industrial Automation and Industrial Control equipment. It accepts selectable 100 or 230 VAC input power and supplies power to the CPU Unit, I/O Units, and other compatible Automation Components within the specified system capacity.
The module provides 5 VDC at 6 A together with a 24 VDC service output rated at 0.5 A, with a total output capacity of 30 W. Its integrated power indicator supports visual status checking, while the side-connecting CQM1 construction enables installation within compact PLC assemblies for Machine Control, OEM equipment, and other Industrial Applications.
Technical Specifications & Features
- Brand: Omron
- Manufacturer Part Number: CQM1-PA216
- Category: Power Supply Module
- Product Series: CQM1
- Rated Current: 6 A at 5 VDC and 0.5 A at 24 VDC
- Rated Voltage: 100 or 230 VAC selectable
- Frequency: 50/60 Hz
- Power Rating: 30 W total output capacity
- Mounting Type: DIN track system mounting
- Connection Type: External screw terminals for crimp connectors
- Dimensions: 85.5 x 110 x 113.7 mm
- Weight: 560 g maximum
- Operating Temperature: 0 to 55°C
- Certification: EN 61131-2
The selectable AC input supports 100 VAC and 230 VAC power systems, with operating voltage ranges specified for each selector position. The module also includes a dedicated 24 VDC output for supplying compatible DC input circuits.
Designed as part of the modular CQM1 platform, the CQM1-PA216 connects directly to adjacent controller units and provides centralized power for compatible PLC configurations. It is suitable for servicing established Electrical Equipment where the model is required as an OEM component or as one of the system-specific Replacement Parts.
Applications
The Omron CQM1-PA216 is used in CQM1 PLC Systems for factory automation, production machinery, process equipment, control panels, material-handling systems, and other Machine Control installations. It supplies operating power to compatible CPU and I/O configurations in Industrial Automation environments.
This Power Supply Module is also applicable to maintenance, repair, and refurbishment of legacy Industrial Control equipment. It can support OEM machinery, manufacturing equipment, and Industrial Applications that require the specified CQM1 power supply configuration and compatible Automation Components.
Bulk purchase and RFQ are available. Contact us for quantity pricing, lead time, and shipping options.
Need help confirming a model?
Send us your part number and technical requirements.
