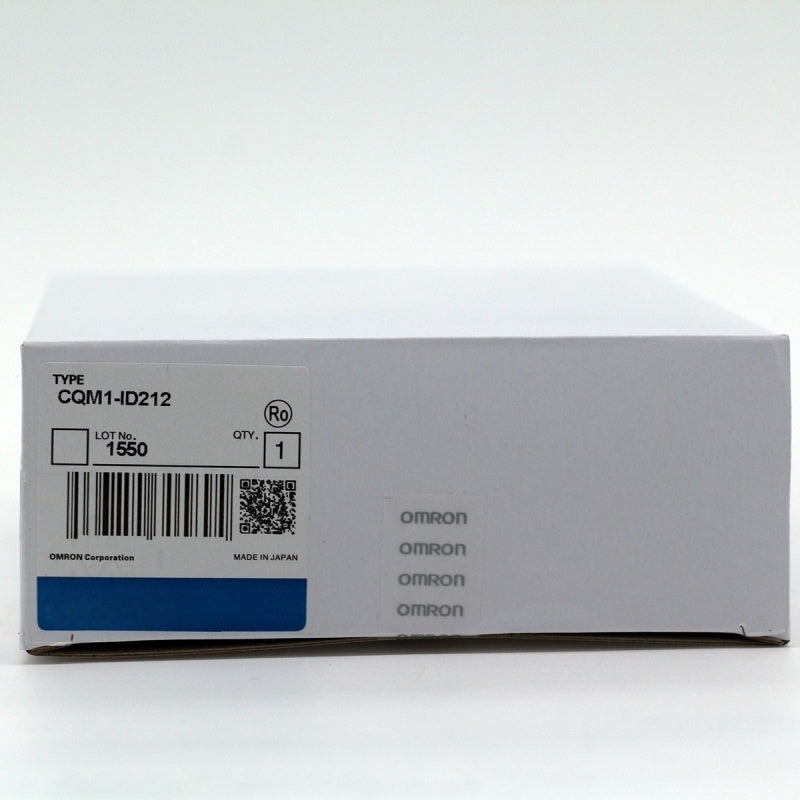

Omron CQM1-ID212 DC Input Module 16-Point 24 V DC for PLC Systems

PRODUCT PRICE USD

$23.98

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.

View Our Return Policy

Payments

Available payment methods

Bank transfer

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Omron CQM1-ID212 DC Input Module 24VDC for PLC Systems

Product Overview

Buy Omron CQM1-ID212 Module online. The CQM1-ID212 is a 16-point 24 V DC input unit for Omron CQM1 programmable controller systems, designed to bring discrete field signals into PLC-based Industrial Automation and Industrial Control equipment. Its terminal-block connection and commoned input arrangement support organized integration into control panels and Machine Control systems.

As part of the CQM1 series of Automation Components, this module provides defined input thresholds, configurable input response delays through the PLC setup, and input status indicators for signal monitoring. It is suitable for maintaining installed Electrical Equipment, OEM machinery, and Replacement Parts requirements where the CQM1-ID212 model is specified.

Typical Industrial Applications include factory automation, manufacturing equipment, packaging machinery, assembly systems, and PLC control panels using compatible CQM1 hardware.

Technical Specifications & Features

Brand: Omron
Manufacturer Part Number: CQM1-ID212
Category: DC Input Module
Product Series: CQM1
Rated Voltage: 24 V DC +10% / -15%
Connection Type: Terminal block
Weight: 180 g max.

The CQM1-ID212 provides 16 input points arranged as 16 points per common in one circuit. Official specifications include 3.9 kΩ input impedance, 6 mA typical input current at 24 V DC, a minimum ON voltage of 14.4 V DC, and a maximum OFF voltage of 5.0 V DC.

The default ON and OFF response delays are 8 ms maximum and can be configured from 1 to 128 ms through the PLC setup. Internal current consumption is rated at 85 mA maximum at 5 V DC, supporting stable integration into compatible CQM1 Industrial Control systems.

Applications

The Omron CQM1-ID212 is intended for discrete signal acquisition in PLC Systems, factory automation equipment, machine control panels, production machinery, and other Industrial Automation installations. It can interface with compatible switches, sensors, pushbuttons, and discrete field devices operating within the specified input requirements.

This module is also suitable for OEM equipment maintenance and Replacement Parts projects involving existing CQM1 control systems. Confirm controller compatibility, input voltage, terminal wiring, and common configuration against the applicable Omron documentation before installation.
