Omron

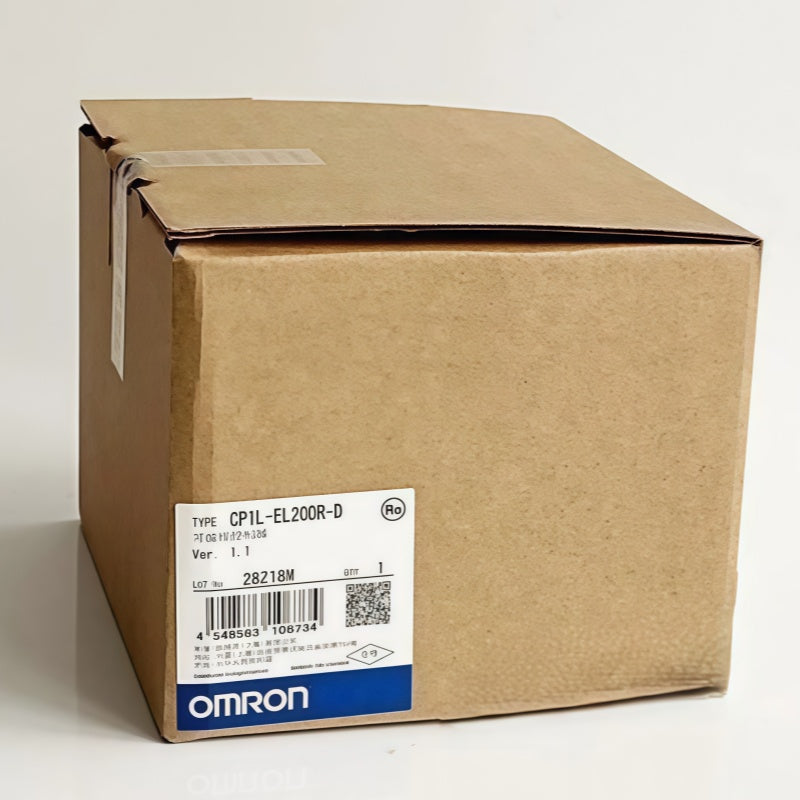

Omron CP1L-EL20DR-D CPU Module with Ethernet and Relay Outputs for Machine Control
PRODUCT PRICE
USD
$263.60
0 pcs / pack
Available to order
Request a QuoteBulk Orders, Part Number Assistance, or Alternative Payment Options? Contact Our Team!
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
💳 Need a Different Payment Method?Add your items to cart and contact our team before checkout. We'll help you explore available payment arrangements.
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Omron CP1L-EL20DR-D CPU Module with Ethernet and Relay Outputs
Product Overview
Buy Omron CP1L-EL20DR-D Module online. The Omron CP1L-EL20DR-D is a CP1L series CPU module designed for compact Industrial Automation and Machine Control systems. It combines a 24 VDC power supply, 20 built-in I/O points, relay outputs, and an embedded Ethernet port in one programmable controller platform.
The module provides 12 digital inputs and 8 relay outputs with a 5K-step program capacity. Built-in Ethernet connectivity supports integration with Industrial Control networks, while four 100 kHz high-speed counter axes support responsive control tasks in manufacturing equipment and other Industrial Applications.
This product is suitable for new control panels, OEM machinery, and maintenance projects involving Electrical Equipment and Automation Components. It can also serve in Replacement Parts planning when the complete model, power supply, I/O configuration, software version, and system requirements match the existing installation.
Technical Specifications & Features
- Brand: Omron
- Manufacturer Part Number: CP1L-EL20DR-D
- Category: Module
- Product Series: CP1L
- Rated Voltage: 24 VDC
- Connection Type: Built-in Ethernet port
- Dimensions: 130 × 90 × 85 mm (W × H × D)
- Weight: 400 g
- Operating Temperature: 0 to 55°C
The integrated Ethernet interface enables controller communication without requiring a separate Ethernet option board. The 20-point built-in I/O configuration combines 12 digital inputs with 8 relay outputs, supporting compact panel layouts and straightforward integration into industrial control equipment.
The CP1L platform supports function block programming and structured text, along with expansion through compatible CP1W series units. These capabilities make the module suitable for scalable automation designs, equipment upgrades, and OEM control system development.
Applications
The Omron CP1L-EL20DR-D can be used in compact factory automation systems, machine control panels, manufacturing equipment, and programmable control applications that require Ethernet communication and relay outputs. Its integrated I/O arrangement supports control of compatible field devices within the specified electrical limits.
It is also applicable to OEM equipment, industrial control upgrades, and maintenance or replacement projects where the CP1L-EL20DR-D model, 24 VDC supply, Ethernet connectivity, relay-output configuration, and expansion requirements are compatible with the target system.
Bulk purchase and RFQ are available. Contact us for quantity pricing, lead time, and shipping options.
Need help confirming a model?
Send us your part number and technical requirements.
