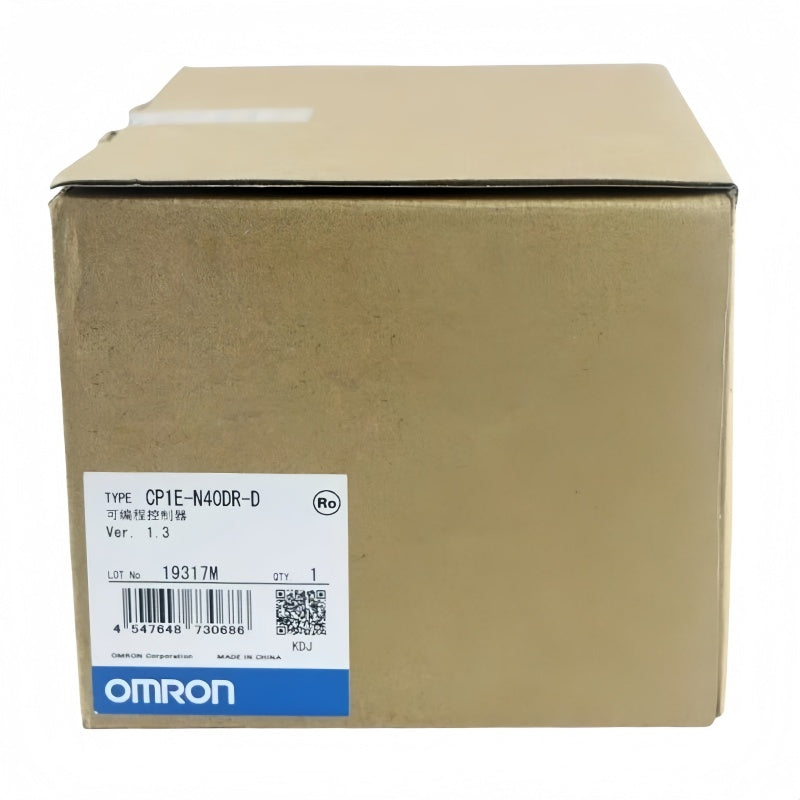

Omron CP1E-N40DR-D CP1E CPU Module 40 I/O Relay Output for Machine Control
PRODUCT PRICE
USD
$138.26
0 pcs / pack
Available to order
Request a QuoteBulk Orders, Part Number Assistance, or Alternative Payment Options? Contact Our Team!
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
💳 Need a Different Payment Method?Add your items to cart and contact our team before checkout. We'll help you explore available payment arrangements.
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Omron CP1E-N40DR-D CP1E CPU Module 40 I/O Relay Output for Machine Control
Product Overview
Buy Omron CP1E-N40DR-D Module online. The Omron CP1E-N40DR-D is a CP1E Series programmable controller CPU unit designed for Industrial Automation, Industrial Control, and Machine Control applications. It operates from a 24 VDC power supply and provides 40 built-in I/O points, including 24 inputs and 16 relay outputs.
This compact controller combines an 8K-step program capacity with 8K words of data memory. Built-in USB and RS-232C communications support programming and connection to compatible industrial devices, while support for CP1W expansion units allows the control system to be expanded to a maximum of 160 I/O points.
The CP1E-N40DR-D is suitable for control panels, production machinery, OEM equipment, and other Industrial Applications requiring dependable Automation Components. Its panel-mounted construction and fixed terminal block connections support organized integration with Electrical Equipment and installed control systems.
Technical Specifications & Features
- Brand: Omron
- Manufacturer Part Number: CP1E-N40DR-D
- Category: Module
- Product Series: CP1E Series
- Product Type: CPU Unit
- Rated Voltage: 24 VDC
- Operating Voltage Range: 20.4 to 26.4 VDC
- Power Rating: 20 W maximum
- Built-in I/O: 40 points
- Digital Inputs: 24
- Digital Outputs: 16
- Output Type: Relay
- Program Capacity: 8K steps
- Data Memory Capacity: 8K words
- Maximum I/O Capacity: 160 points
- Expansion Capacity: Up to 3 CP1W Series Expansion Units
- Mounting Type: Panel mounting
- Connection Type: Fixed terminal block with M3 terminal screws
- Communication Ports: USB and RS-232C
- Dimensions: 90 × 85 × 150 mm H × D × W
- Weight: 660 g maximum
- Operating Temperature: 0 to 55°C
- Certification: Conforms to EC Directive
The integrated I/O configuration reduces the need for separate basic input and output modules in compact control systems. Relay outputs provide flexible switching for compatible industrial loads, while the built-in high-speed counter functionality supports responsive input processing.
The controller supports expansion I/O, analog I/O, and temperature input units for scalable system design. An option board slot can accommodate compatible serial, Ethernet, or analog option boards, providing additional flexibility for OEM machinery and Replacement Parts requirements.
Applications
The Omron CP1E-N40DR-D Module is designed for Industrial Automation and Industrial Control tasks such as conveyor sequencing, packaging machinery, assembly equipment, material handling systems, process support equipment, and general Machine Control. Its combination of integrated digital I/O and relay outputs makes it suitable for compact PLC Systems and control panels.
It can also be used in OEM equipment, manufacturing equipment, maintenance projects, retrofit work, and replacement applications involving compatible CP1E systems. The unit supports scalable automation architectures where dependable Electrical Equipment and standardized Automation Components are required for Industrial Applications.
