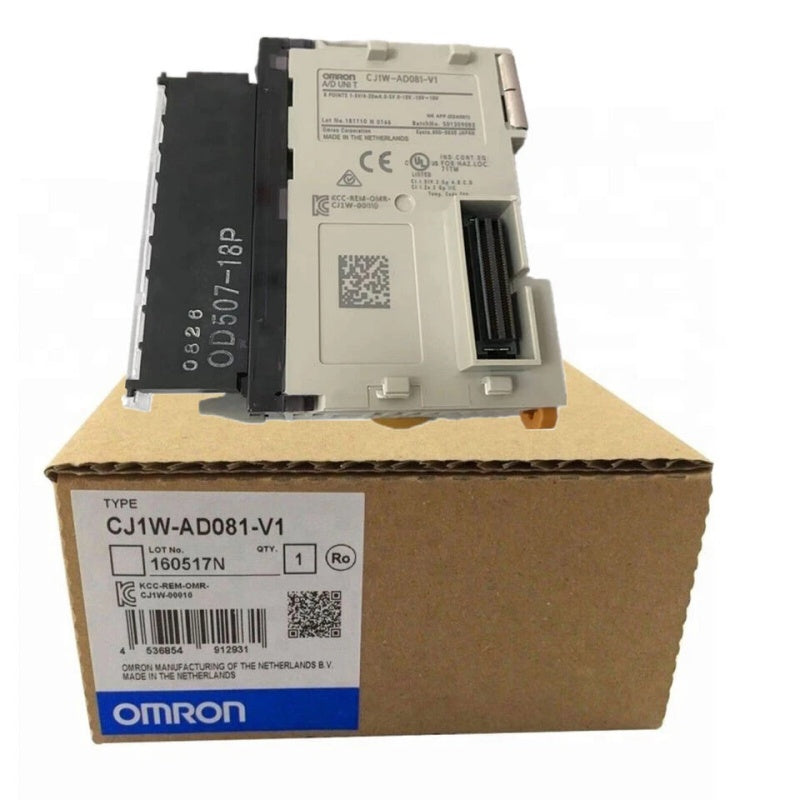

Omron CJ1W-AD081-V1 Analog Input Module with 8 Inputs
Product Overview
Buy Omron CJ1W-AD081-V1 Module online. The CJ1W-AD081-V1 is a CJ-Series analog input module designed to connect voltage and current signals to compatible Omron CJ and NJ controller systems. It provides eight analog input channels for collecting process and machine data in Industrial Automation, Industrial Control, and Machine Control applications.
This module supports multiple analog signal ranges, including -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, and 4 to 20 mA. Its configurable resolution and conversion speed support accurate signal acquisition for manufacturing equipment, control panels, and other Industrial Applications requiring dependable Automation Components.
The Omron CJ1W-AD081-V1 is suitable for new OEM Electrical Equipment as well as qualified maintenance and Replacement Parts requirements where compatibility with the installed CJ-Series control system has been verified.
Technical Specifications & Features
- Brand: Omron
- Manufacturer Part Number: CJ1W-AD081-V1
- Category: Analog Input Module
- Product Series: CJ-Series Analog I/O Units
- Number of Analog Inputs: 8
- Input Signal Ranges: -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, and 4 to 20 mA
- Resolution: 1/4,000, settable to 1/8,000
- Conversion Speed: 1 ms per point, settable to 250 microseconds per point
- Power Consumption: 420 mA maximum at 5 VDC
- Connection Type: 18-point detachable terminal block with M3 screws
- Dimensions: 31 × 90 × 65 mm
- Weight: 140 g maximum
- Isolation: Photocoupler isolation between I/O and controller signals
The module supports signal-processing functions including averaging, peak value holding, line disconnection detection, and offset and gain adjustment. These functions help provide stable analog data acquisition in demanding factory environments.
Its detachable terminal block simplifies wiring and servicing, while the compact CJ-Series form factor supports efficient integration into compatible programmable controller configurations.
Applications
The Omron CJ1W-AD081-V1 is used in PLC Systems for monitoring analog signals from compatible sensors, transmitters, measuring devices, and process instruments. Typical applications include factory machinery, production lines, process monitoring, test systems, and automated manufacturing equipment.
It is also suitable for control panel integration, OEM equipment, Machine Control upgrades, Industrial Control maintenance, and replacement projects involving compatible Omron CJ-Series Automation Components.
Bulk purchase and RFQ are available. Contact us for quantity pricing, lead time, and shipping options.
