Omron B7AP-S1 Module Stationary Power Coupler

Product Overview

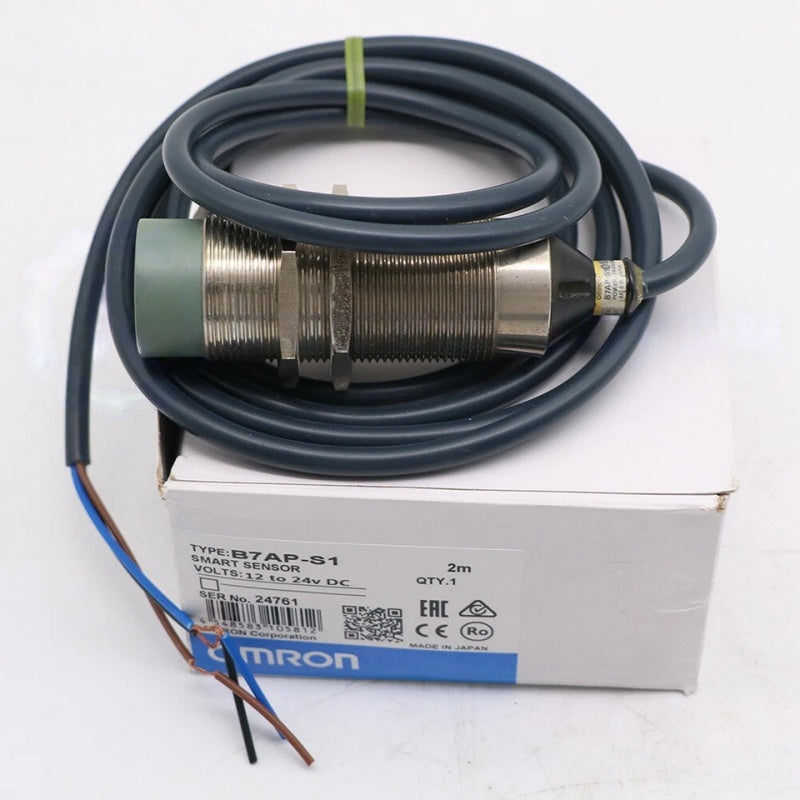

Buy Omron B7AP-S1 Module online. The Omron B7AP-S1 is the stationary unit in the B7AP Series of power couplers, designed to transmit input-device ON/OFF signals and power without contact when used with a compatible B7AP-M1 moving unit and B7A Link Terminals. This configuration supports reliable Industrial Automation and Industrial Control wiring for rotating and moving machinery.

The B7AP-S1 uses electromagnetic coupling to reduce wiring complexity across moving interfaces. It supports signal and power transmission through non-metallic materials such as plastic, glass, and wood, and its IP67 protection helps suit demanding Industrial Applications. The model is discontinued by Omron with no recommended replacement, making exact-model sourcing important for OEM equipment maintenance and Replacement Parts requirements.

Technical Specifications & Features

• Brand: Omron
• Manufacturer Part Number: B7AP-S1
• Category: Module
• Product Series: B7AP
• Rated Voltage: 24 VDC ±10%, ripple 10% max.
• Mounting Type: M30 × 1.5 threaded body with two clamping nuts
• Connection Type: Pre-wired, standard cable length 2 m
• Dimensions: 98 mm overall length, 42 mm maximum diameter
• Weight: Approx. 300 g packed
• Operating Temperature: −10 to 55°C
• Protection Rating: IEC IP67

The stationary coupler uses unidirectional, time-division multiplex transmission. With the B7AP-M1, the specified coupler transmission distance is 8 ± 1.5 mm, while the maximum transmission distance between compatible B7A input and output units is 100 m. Standard transmission delay is 19.2 ms, with a maximum of 31 ms.

A built-in gauge assists with setting the coupler distance, while the power indicator supports installation checks. The pre-wired construction, threaded mounting body, and environmental resistance make this Omron module suitable for maintaining stable Machine Control connections as part of industrial Electrical Equipment and Automation Components.

Applications

The Omron B7AP-S1 is intended for moving-interface applications such as turntables, transformation mechanisms, robot hands, and pallet-handling equipment. It can be integrated into factory automation systems that require contactless transmission of signals and power between stationary and moving sections.

Typical use includes maintenance of existing B7A-based Industrial Control systems, OEM machinery, production equipment, and other Industrial Applications where the original B7AP-S1 stationary power coupler is required as an exact Replacement Part.

Bulk purchase and RFQ are available. Contact us for quantity pricing, lead time, and shipping options.
