AC Centrifugal Design
The D2D133-AB06-30 is an AC centrifugal fan designed for forced-air cooling and airflow management in compatible industrial equipment.

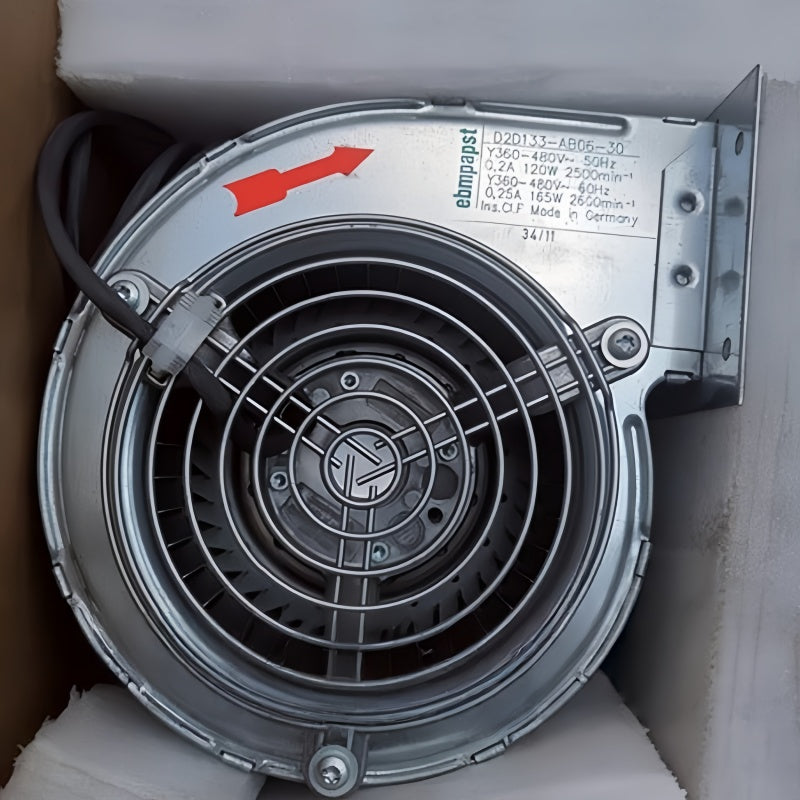

Ebmpapst D2D133-AB06-30 Centrifugal Fan 360-480VAC 120/165W
Available in stock (200)
Regular price
$274.26
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | D2D133-AB06-30 |
| Product Category | Centrifugal Fan |
| Fan Type | AC Centrifugal Fan |
| Motor Model | M2D068-BC |
| Phase | 3-Phase |
| Rated Voltage | 400 VAC |
| Frequency | 50/60 Hz |
| Power Input | 120 W at 50 Hz / 165 W at 60 Hz |
| Rated Current | 0.20 A at 50 Hz / 0.25 A at 60 Hz |
| Speed | 2500 RPM at 50 Hz / 2600 RPM at 60 Hz |
| Maximum Air Flow | 405 m³/h at 50 Hz / 425 m³/h at 60 Hz |
| Minimum Back Pressure | 250 Pa at 50 Hz / 275 Pa at 60 Hz |
| Degree of Protection | IP44 |
| Insulation Class | Class F |
| Duty | S1 |
| Weight | Approx. 3.66 kg |
Key Features
400 VAC Three-Phase Supply
Published exact-model data specifies a three-phase 400 VAC configuration with operating ratings for 50 Hz and 60 Hz.
120/165 W Power Input
The documented power input is 120 W at 50 Hz and 165 W at 60 Hz.
2500/2600 RPM Speed
The documented rotational speed is 2500 RPM at 50 Hz and 2600 RPM at 60 Hz.
405/425 m³/h Airflow
Published exact-model technical data specifies maximum airflow of 405 m³/h at 50 Hz and 425 m³/h at 60 Hz.
IP44 Protection
The documented configuration specifies IP44 protection, Class F insulation and S1 continuous duty.
Applications
- Industrial drive cooling
- Inverter cooling systems
- Industrial equipment cooling
- Electrical cabinet ventilation
- Power electronics cooling
- Industrial machinery ventilation
- Equipment air circulation
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst D2D133-AB06-30 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst D2D133-AB06-30?
It is an AC centrifugal fan used for forced-air cooling and ventilation in compatible industrial equipment.
What voltage does D2D133-AB06-30 use?
Published exact-model technical data specifies 400 VAC.
Is D2D133-AB06-30 a three-phase fan?
Yes. Exact-model product information identifies it as a three-phase AC centrifugal fan.
What frequency does D2D133-AB06-30 support?
Published technical data specifies 50/60 Hz operation.
What is the power input?
The documented power input is 120 W at 50 Hz and 165 W at 60 Hz.
What is the rated current?
The documented current is 0.20 A at 50 Hz and 0.25 A at 60 Hz.
What is the fan speed?
Published data specifies 2500 RPM at 50 Hz and 2600 RPM at 60 Hz.
What is the maximum airflow?
Published exact-model data specifies 405 m³/h at 50 Hz and 425 m³/h at 60 Hz.
What is the protection rating?
The documented protection rating is IP44 with Class F insulation.
What motor model is associated with D2D133-AB06-30?
Published exact-model information identifies the motor as M2D068-BC.
Where can D2D133-AB06-30 be used?
Typical applications include industrial drives, inverters, power electronics and other equipment requiring centrifugal forced-air cooling.
What should be checked before ordering D2D133-AB06-30?
Check the complete model number, 400 VAC three-phase supply, 50/60 Hz frequency, electrical ratings, airflow and pressure requirements, connection arrangement and mounting requirements before purchasing.
