200 mm Axial Design

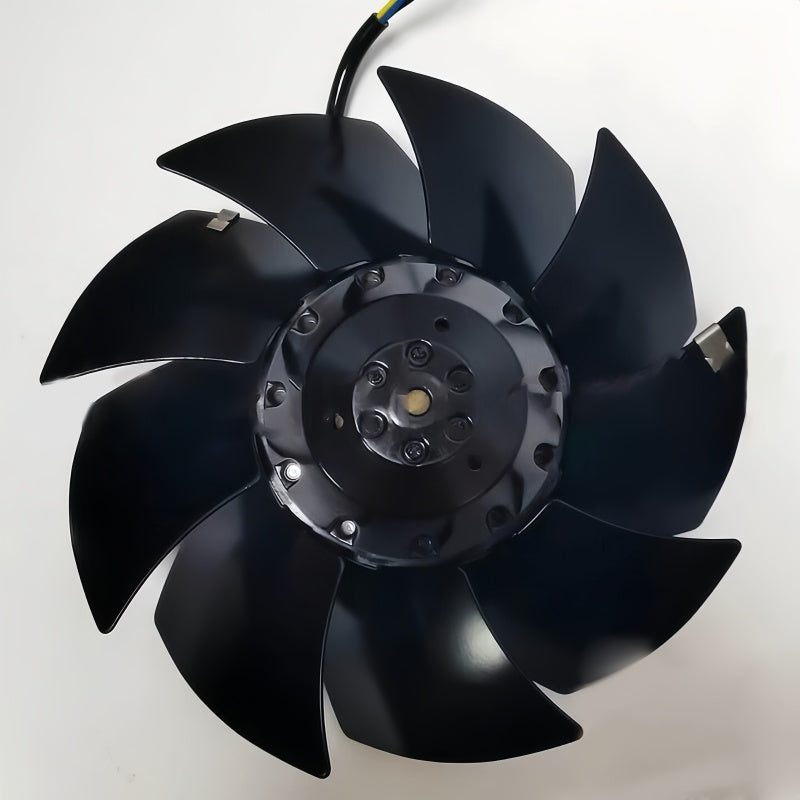

The A2E200-AH38-01 is an AC axial fan with a 200 mm impeller and nine sickle-shaped sheet-steel blades.
Ebmpapst A2E200-AH38-01 Axial Fan 230VAC 200mm 890-990m³/h
Available in stock (200)
Regular price
$184.67
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | A2E200-AH38-01 |
| Product Category | Axial Fan |
| Series | A2E200 |
| Fan Type | AC Axial Fan with Sickle-Shaped Blades |
| Motor Model | M2E068-BF |
| Fan Size | 200 mm |
| Phase | 1-Phase |
| Rated Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Input | 64 W at 50 Hz / 78 W at 60 Hz |
| Current Draw | 0.30 A at 50 Hz / 0.34 A at 60 Hz |
| Speed | 2600 RPM at 50 Hz / 2900 RPM at 60 Hz |
| Air Flow | 890 m³/h at 50 Hz / 990 m³/h at 60 Hz |
| Max. Back Pressure | 150 Pa |
| Sound Pressure Level | 65 dBA at 50 Hz / 68 dBA at 60 Hz |
| Motor Capacitor | 1.5 µF |
| Capacitor Voltage | 450 VDB |
| Number of Blades | 9 |
| Blade Material | Sheet Steel, Painted Black |
| Degree of Protection | IP44 |
| Insulation Class | Class B |
| Bearing Type | Ball Bearing |
| Motor Protection | Thermal Overload Protector, Internally Connected |
| Airflow Direction | V |
| Direction of Rotation | Counterclockwise, Viewed Toward Rotor |
| Electrical Connection | PVC 4G 0.5 mm² Cable with 4 Crimped Leads |
| Weight | 1.4 kg |
Key Features
230 VAC Operation
The fan uses a single-phase 230 VAC supply with documented operating ratings for both 50 Hz and 60 Hz.
64/78 W Power Input
Manufacturer nominal data specifies 64 W at 50 Hz and 78 W at 60 Hz.
890/990 m³/h Airflow
Manufacturer free-air data specifies 890 m³/h at 50 Hz and 990 m³/h at 60 Hz.
IP44 Protection
The documented configuration specifies IP44 protection with Class B insulation.
Ball Bearing Motor
The M2E068-BF motor uses ball bearings and an internally connected thermal overload protector.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- Control panel thermal management
- Power electronics cooling
- Heat exchanger ventilation
- HVAC equipment
- Industrial air circulation
- Axial fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst A2E200-AH38-01 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst A2E200-AH38-01?
It is a single-phase AC axial fan with a 200 mm impeller and sickle-shaped blades.
What voltage does A2E200-AH38-01 use?
The manufacturer specifies a nominal voltage of 230 VAC.
What frequency does A2E200-AH38-01 support?
Manufacturer nominal data provides ratings for both 50 Hz and 60 Hz.
What is the power input?
The documented power input is 64 W at 50 Hz and 78 W at 60 Hz.
What is the rated current?
The documented current draw is 0.30 A at 50 Hz and 0.34 A at 60 Hz.
What is the fan speed?
The documented speed is 2600 RPM at 50 Hz and 2900 RPM at 60 Hz.
What is the airflow?
Manufacturer free-air data specifies 890 m³/h at 50 Hz and 990 m³/h at 60 Hz.
What is the fan size?
The documented fan size is 200 mm.
What is the protection rating?
The manufacturer specifies IP44 protection and Class B insulation.
What bearing type is used?
The motor uses ball bearings.
What motor is used?
The manufacturer identifies the motor as M2E068-BF.
What should be checked before ordering A2E200-AH38-01?
Check the complete model number, 230 VAC supply, 50/60 Hz frequency, 200 mm fan size, electrical ratings, airflow requirement, capacitor, connection and mounting arrangement before purchasing.
