119mm Square Frame
Standard 119 x 119 x 38mm axial fan frame for industrial cooling.
1 / 2
Ebmpapst

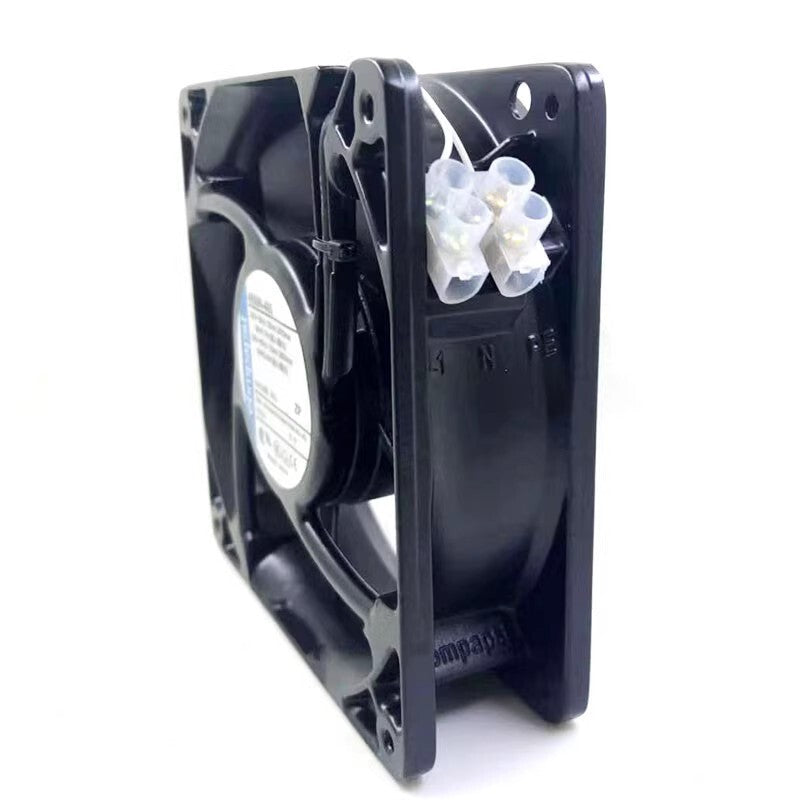

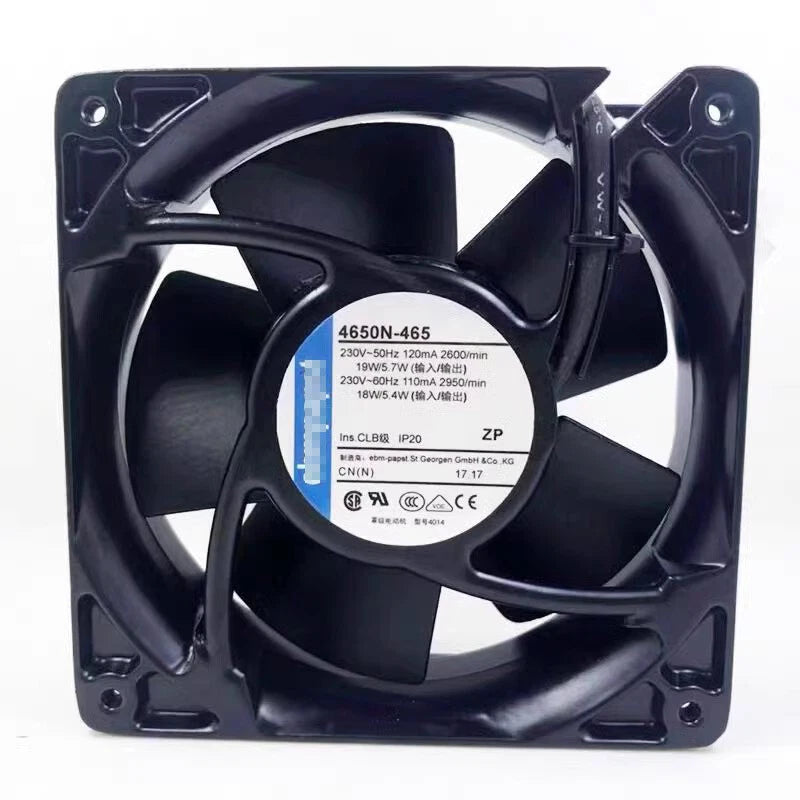

Ebmpapst 4650N Axial Fan 230VAC 50/60Hz 19W
PRODUCT PRICE
USD
$22.75
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 4650N |
| Product Category | Axial Fan |
| Voltage | 230VAC |
| Frequency | 50/60 Hz |
| Power | 19 W |
| Current | 0.21 A |
| Dimensions | 119 x 119 x 38 mm |
| Air Flow | 160 m³/h / 94.1 CFM |
| Speed | 2650 rpm |
| Noise Level | 46 dBA |
| Bearing Type | Sleeve |
| Operating Temperature | -10°C to +55°C |
Key Features
230VAC Operation
Runs directly from a 230VAC 50/60Hz supply.
Sleeve Bearing
Sleeve bearing construction for the fan motor.
160 m³/h Air Flow
Delivers 160 m³/h (94.1 CFM) airflow at 2650 rpm.
46 dBA Noise Level
Published noise level of 46 dBA.
Applications
- Cabinet and enclosure cooling
- Industrial control panel ventilation
- Equipment heat dissipation
- HVAC air circulation
- Fan replacement in 119mm frame installations
- General industrial axial cooling duties
Purchase Information
We support online purchase of the Ebmpapst 4650N Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 4650N? It is a 119 x 119 x 38mm axial fan rated for 230VAC.
What is the voltage and frequency? It operates on 230VAC at 50/60Hz.
What is the power consumption? The fan consumes 19W.
What is the airflow? The airflow is 160 m³/h (94.1 CFM).
What is the speed? It runs at 2650 rpm.
What bearing type does it use? It uses a sleeve bearing.
What is the noise level? The noise level is 46 dBA.
What is the operating temperature range? The operating temperature range is -10°C to +55°C.
What current does it draw? The current rating is 0.21A.
