Low-Inertia Servo Motor
The MPL-B430P-MJ72AA belongs to the Kinetix MPL family of low-inertia brushless servo motors for industrial rotary motion-control applications.

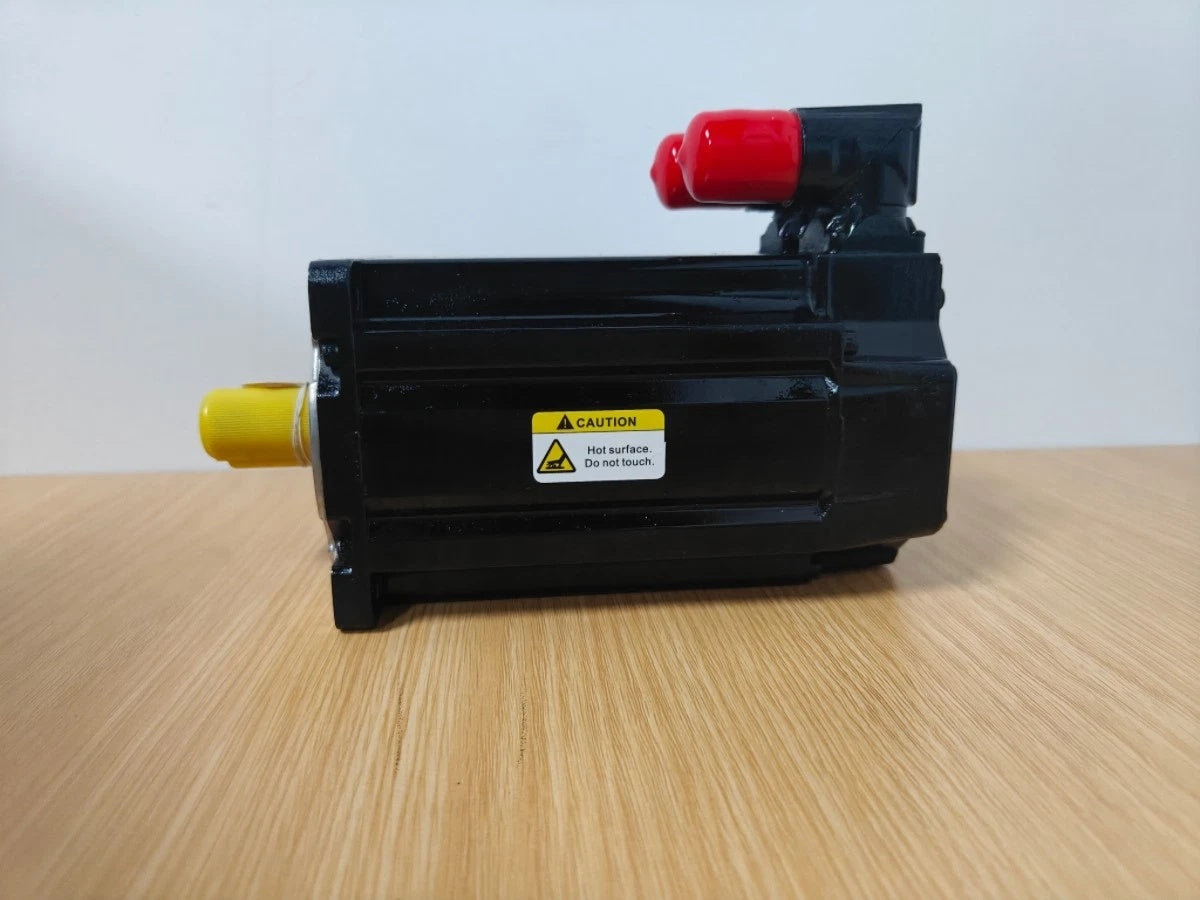

Allen-Bradley MPL-B430P-MJ72AA Servo Motor 460V 5000RPM 115mm Frame
Available in stock (400)
Regular price
$1,332.19
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | MPL-B430P-MJ72AA |
| Product Category | Servo Motor |
| Product Family | Kinetix MPL Low-Inertia Servo Motors |
| Motor Type | Low-Inertia Brushless Servo Motor |
| Voltage | 460 V |
| Frame Size | 115 mm (4.53 in.) |
| Magnet Stack Length | 76.2 mm (3.0 in.) |
| Rated Speed | 5000 RPM |
| Feedback | Multi-turn High-resolution Encoder, Absolute Feedback |
| Shaft | Keyed Shaft Extension |
| Connector | SpeedTEC DIN, Right Angle, 180° Rotatable Quick Connect |
| Brake | No Brake |
| Mounting | IEC Metric, Free Mounting Holes Type FF |
| UPC | 820919980916 |
Key Features
460 V Configuration
This exact catalog configuration is specified for 460 V operation with a rated speed of 5000 RPM.
115 mm Frame
The motor uses a 115 mm frame and a 76.2 mm magnet stack length as defined for this catalog number.
Absolute Encoder Feedback
A multi-turn high-resolution encoder provides absolute feedback for closed-loop positioning and servo-control applications.
SpeedTEC DIN Connector
The right-angle SpeedTEC DIN connector can rotate through 180 degrees to support applicable machine installation orientations.
Keyed Shaft Without Brake
This configuration combines a keyed shaft extension with a no-brake option and IEC metric Type FF mounting.
Applications
- Industrial motion-control systems
- Packaging machinery
- Converting equipment
- Material handling systems
- Automated assembly machinery
- Precision positioning equipment
- Production line automation
- Low-inertia servo applications
Purchase Information
We support online purchase of the Allen-Bradley MPL-B430P-MJ72AA Servo Motor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Allen-Bradley MPL-B430P-MJ72AA?
It is a Kinetix MPL low-inertia brushless servo motor specified for 460 V operation.
What is the rated speed of MPL-B430P-MJ72AA?
The rated speed for this catalog configuration is 5000 RPM.
What is the frame size?
The MPL-B430P-MJ72AA uses a 115 mm (4.53 in.) frame.
What is the magnet stack length?
The specified magnet stack length is 76.2 mm (3.0 in.).
What feedback device does this motor use?
It uses a multi-turn high-resolution encoder with absolute feedback.
Does MPL-B430P-MJ72AA include a brake?
No. This catalog configuration is specified without a brake.
What shaft configuration is used?
The motor has a keyed shaft extension.
What connector does this servo motor use?
It uses a right-angle SpeedTEC DIN connector with a 180° rotatable quick-connect configuration.
Can MPL-B430P-MJ72AA replace another servo motor?
It can be considered after the complete model number and technical requirements have been checked, including voltage, speed, frame size, feedback, shaft, connector and brake configuration.
What should be checked before ordering?
Electrical, mechanical and installation requirements should be checked before ordering, together with the complete motor and servo-drive system requirements.
