Allen-Bradley Brand New 2080-L70E-24QWBN PLC Controller 24VDC

SKU: LL1-AB-2080L70E24QWBN

$637.85

Available

PRODUCT GALLERY 01 / 7

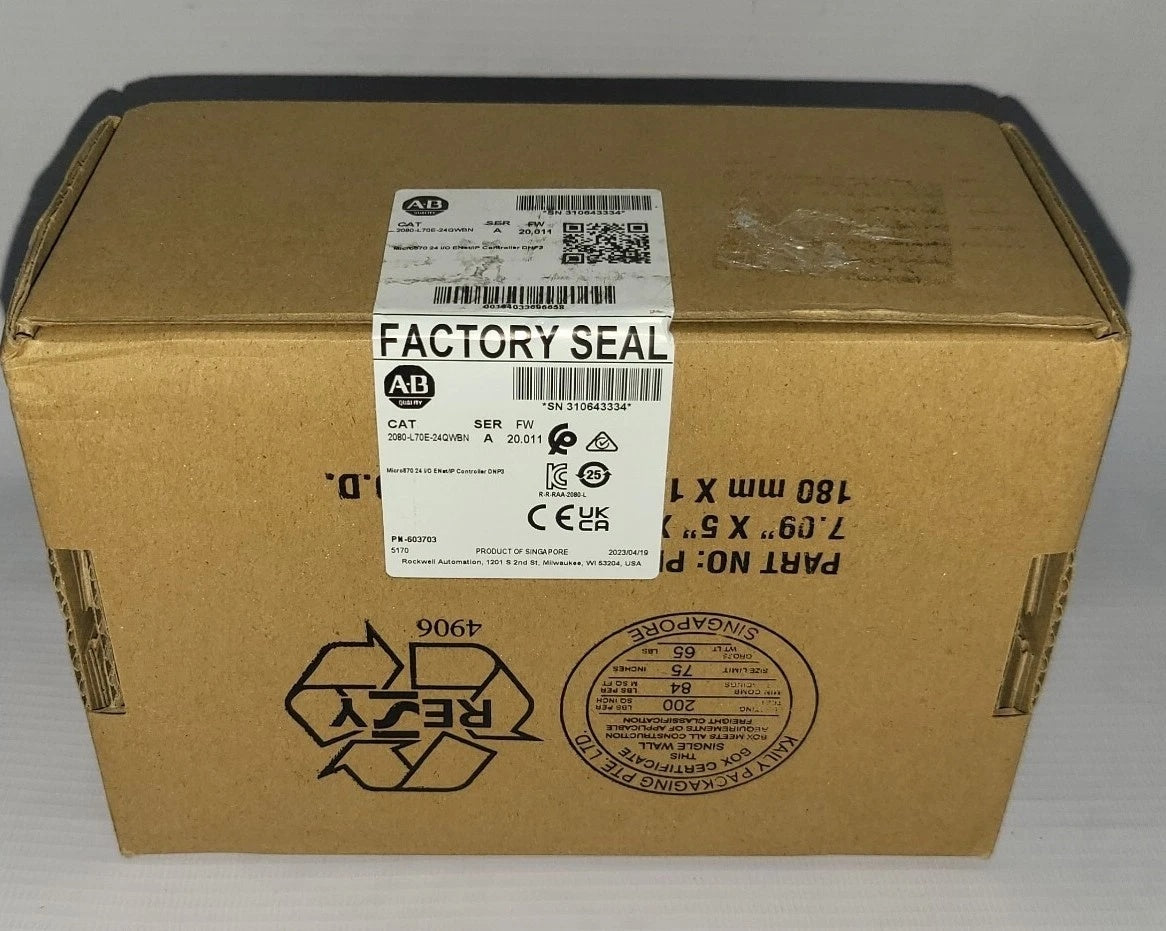

✓ Product images for part identification

Allen-Bradley

Allen-Bradley Brand New 2080-L70E-24QWBN PLC Controller 24VDC

SKU: LL1-AB-2080L70E24QWBN

PRODUCT PRICE USD

$637.85

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Allen-Bradley
Model Number	2080-L70E-24QWBN
Product Category	PLC Controller
Product Family	Micro870
Controller Series	Micro800
Controller Type	Programmable Logic Controller
Total Embedded I/O	24 Points
Digital Inputs	14 Points
Input Voltage Category	24V DC/AC
Digital Input Circuit Type	Sink/Source
High-Speed Counter Support	Up to 4 Embedded HSC
Digital Outputs	10 Relay Outputs
Relay Output Maximum Load Current	2 A per Point
Maximum Relay Current per Common	5 A
Nominal Controller Power Supply	24 VDC
Power Supply Voltage Range	21.4-26.4 VDC
Power Consumption Without Expansion	8 W Maximum
Power Consumption With Expansion	28 W Maximum
Ethernet Communication	EtherNet/IP
Ethernet Interface	10/100 Base-T RJ-45
DNP3 Protocol Support	DNP3 Serial and DNP3 over IP
DNP3 Subset Levels	SAV2 and SAV5
Serial Communication	RS-232/RS-485 Combination Port
USB Interface	USB Type B Programming Port
Plug-in Module Capacity	Up to 3 Modules
Expansion I/O Capacity	Up to 8 Modules
Ethernet Node Support	Up to 8 Nodes with Supported Firmware
Programming Software	Connected Components Workbench
Dimensions (H × W × D)	90 × 157 × 80 mm
Approximate Shipping Weight	0.47 kg
Enclosure Type	Open Style
Conformal Coating	No

Key Features

24 Embedded I/O Points

The Micro870 controller provides 14 digital inputs and 10 relay outputs for industrial machine control and monitoring applications.

DNP3 Protocol Support

The 2080-L70E-24QWBN supports DNP3 communication over configured serial and Ethernet channels for compatible remote monitoring and automation systems.

EtherNet/IP Communication

An embedded 10/100 Base-T RJ-45 Ethernet interface provides EtherNet/IP connectivity for supported industrial automation networks.

10 Relay Outputs

The controller includes ten relay outputs with a documented maximum load current of 2 A per point and 5 A per common, subject to relay load specifications.

Expandable I/O Architecture

The Micro870 platform supports up to three plug-in modules and eight expansion I/O modules, subject to compatible hardware configurations and power requirements.

24VDC Controller Power

The controller uses a nominal 24 VDC supply with a documented voltage range of 21.4 to 26.4 VDC and power consumption dependent on installed modules.

Applications

Industrial machine control systems
Remote telemetry and DNP3 communication
Industrial equipment status monitoring
Water and wastewater automation systems
Utility monitoring and control panels
Manufacturing production line automation
Conveyor and material handling systems
Distributed industrial automation applications

Purchase Information

We support online purchase of the Allen-Bradley 2080-L70E-24QWBN PLC Controller. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is Allen-Bradley 2080-L70E-24QWBN?
Allen-Bradley 2080-L70E-24QWBN is a Micro870 programmable logic controller with 24 embedded I/O points, EtherNet/IP connectivity and DNP3 communication support.

How many inputs and outputs does 2080-L70E-24QWBN provide?
The controller provides 14 digital inputs and 10 relay outputs, for a total of 24 embedded I/O points.

What is the digital input voltage category?
The documented digital input category is 24V DC/AC, with sink/source input configuration. Input wiring and operating limits must follow the controller specifications.

What type of outputs does 2080-L70E-24QWBN use?
The controller provides ten electromechanical relay outputs rather than transistor outputs.

What is the maximum relay output current?
The documented maximum load current is 2 A per output point, with a maximum of 5 A per common. Applicable relay contact ratings must also be observed.

What power supply does 2080-L70E-24QWBN require?
The controller requires a nominal 24 VDC power supply with a documented operating voltage range of 21.4-26.4 VDC.

Does 2080-L70E-24QWBN support DNP3 communication?
Yes. The controller supports DNP3 communication through configured serial or Ethernet channels. DNP3 configuration and the required software and firmware versions must be checked.

Does 2080-L70E-24QWBN support EtherNet/IP?
Yes. The controller includes a 10/100 Base-T RJ-45 Ethernet interface with EtherNet/IP support.

What other communication interfaces are available?
The controller includes an RS-232/RS-485 combination serial port and a USB Type B programming port.

Can 2080-L70E-24QWBN support additional I/O modules?
Yes. The Micro870 platform supports up to three plug-in modules and eight expansion I/O modules, subject to module compatibility and power requirements.

What are the dimensions of 2080-L70E-24QWBN?
The documented controller dimensions are 90 × 157 × 80 mm, measured as height, width and depth.

What should be checked before ordering 2080-L70E-24QWBN?
Verify the complete catalog number, 24 VDC supply, 14-input and 10-relay-output configuration, DNP3 requirements, Ethernet communication, expansion module compatibility, firmware requirements and installation dimensions against the existing system documentation.
