6mm Sensing Distance
The 871TM-M6NP12-D4 provides a 6 mm nominal switching distance for non-contact detection of metallic targets.
1 / 10
Allen-Bradley

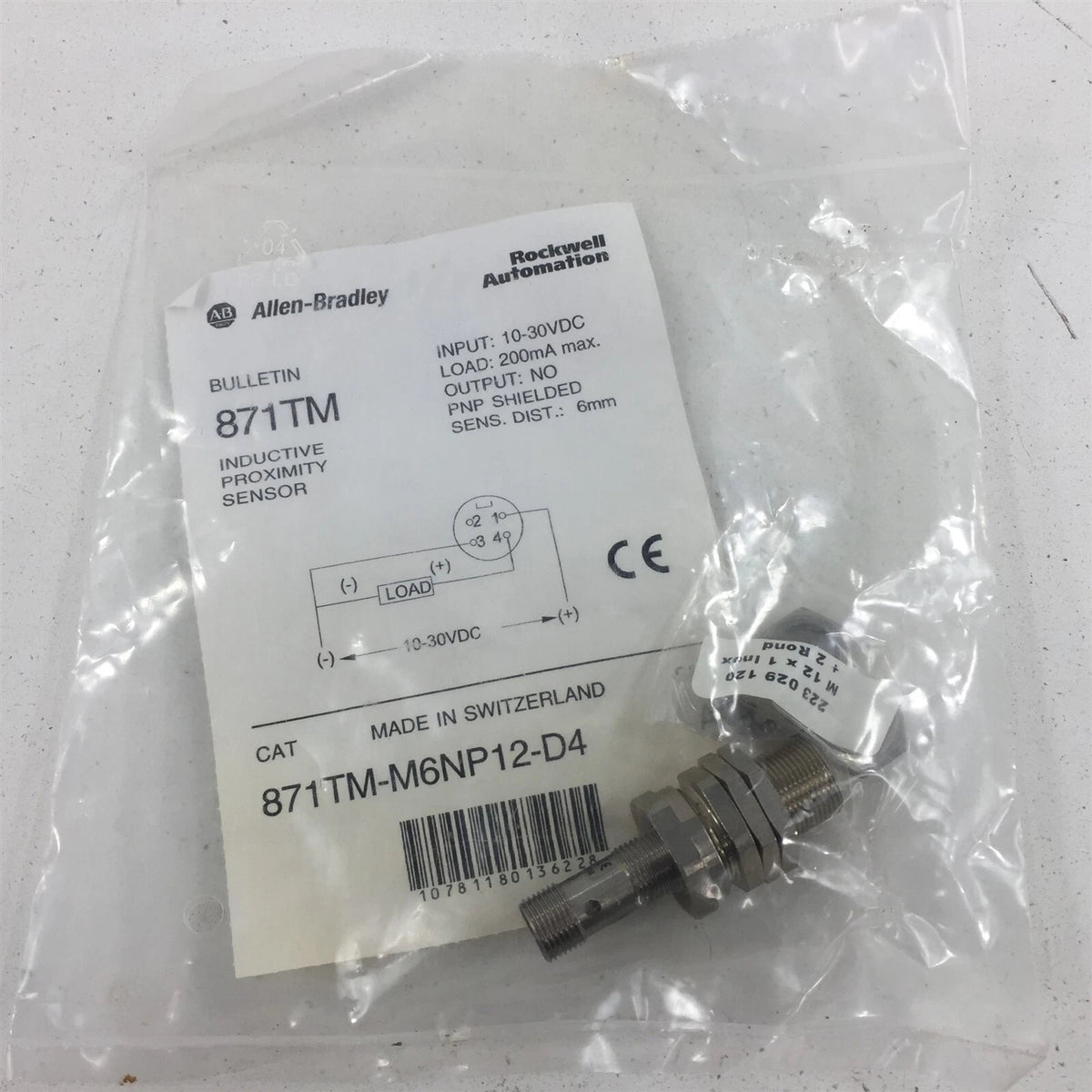

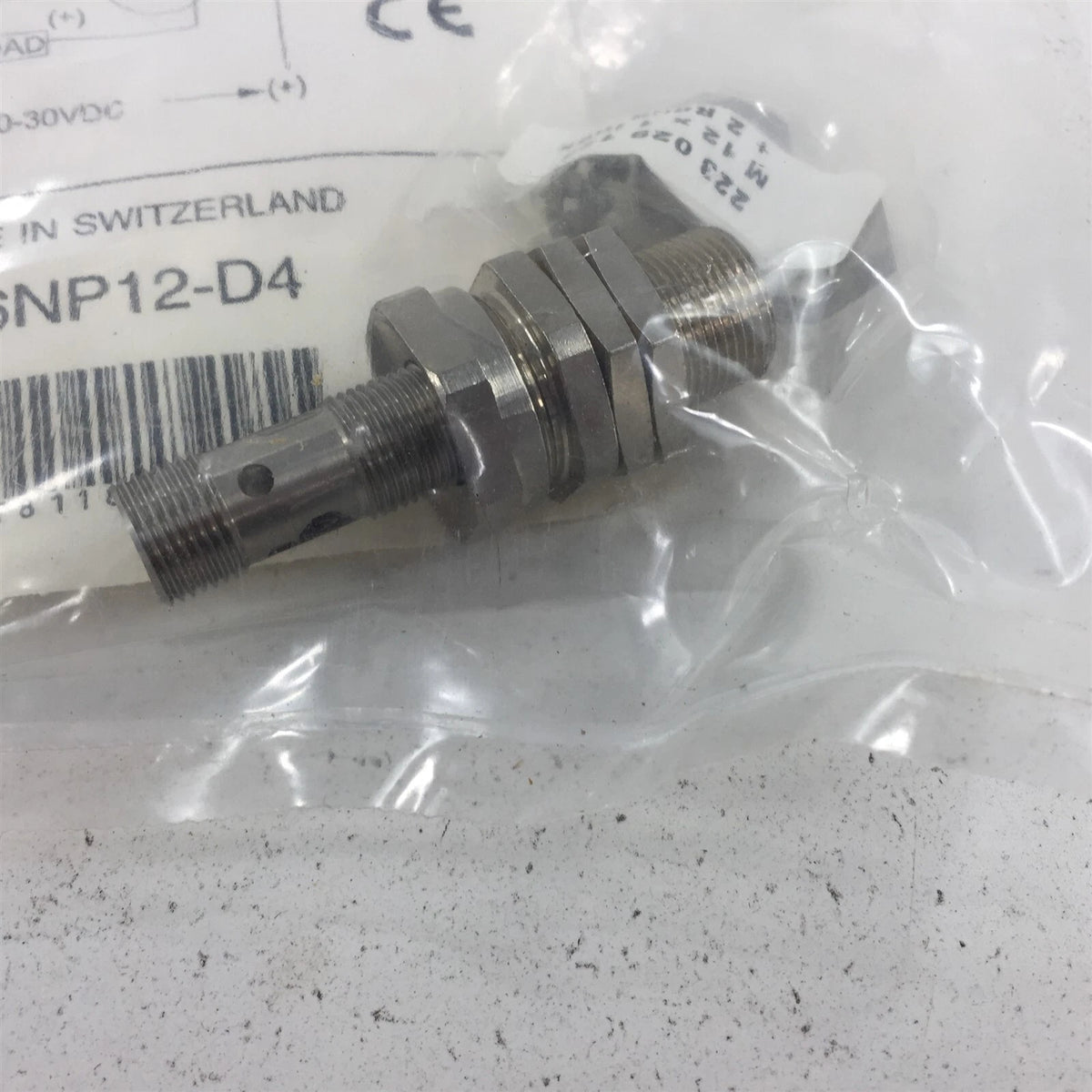

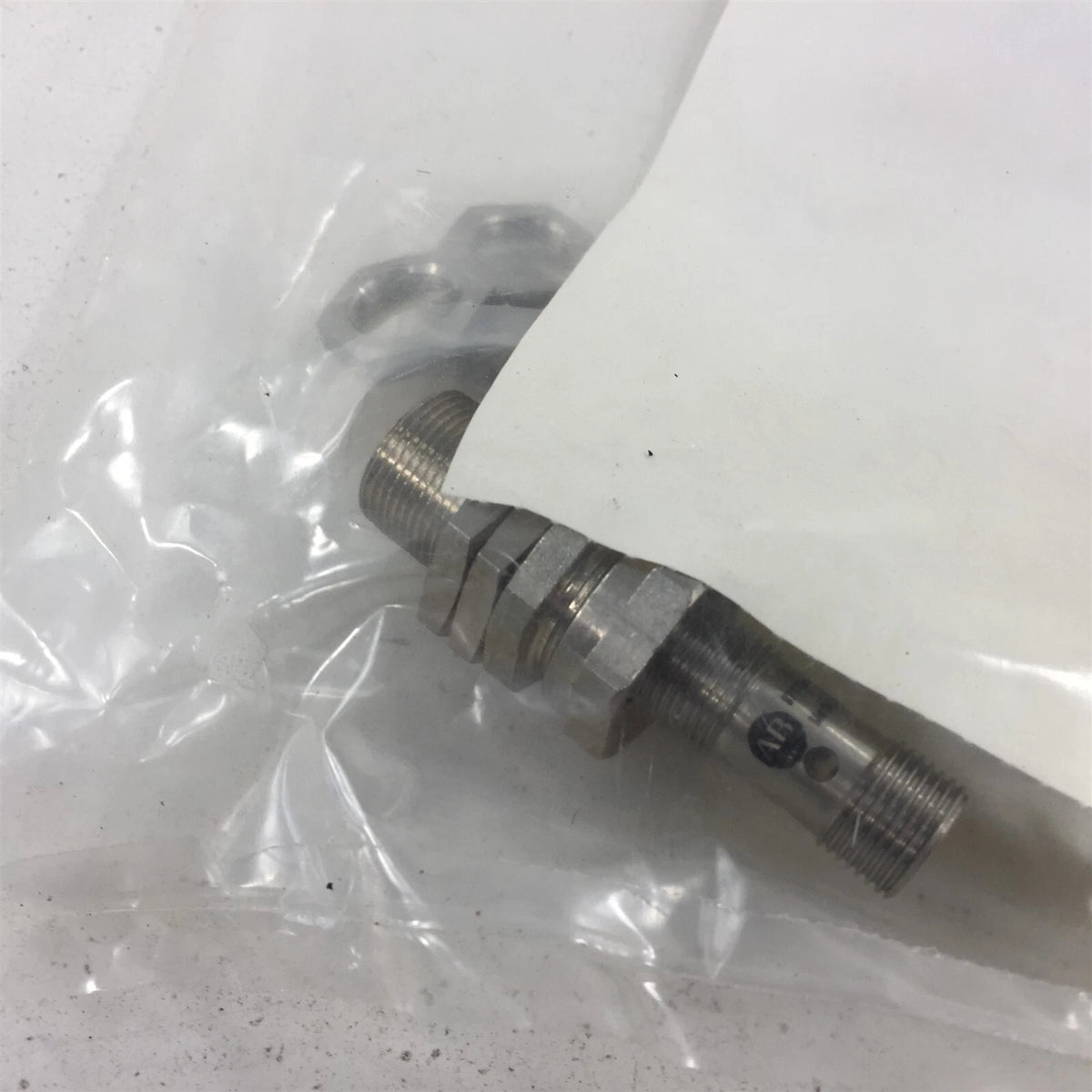

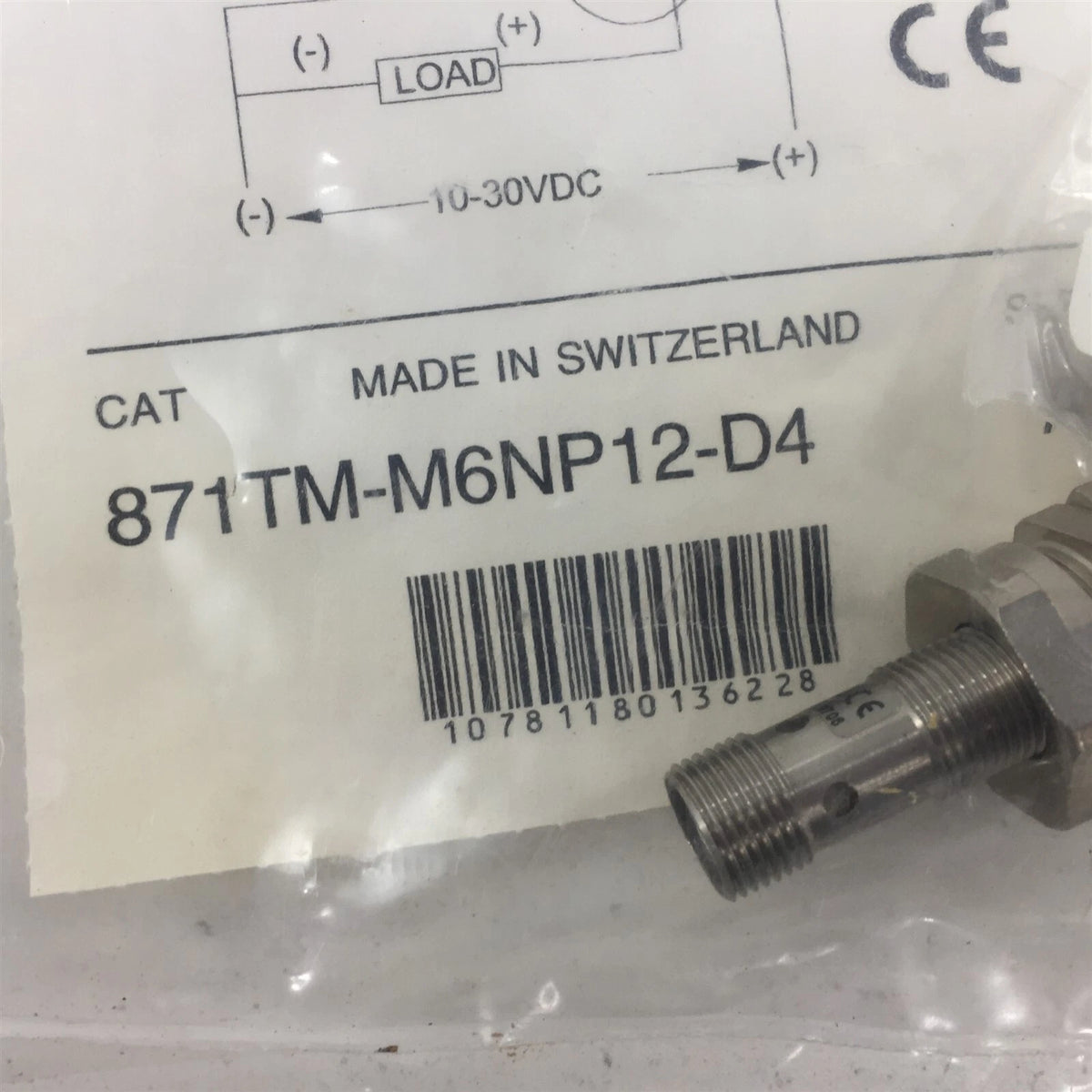

Allen-Bradley 871TM-M6NP12-D4 Proximity Sensor 6mm 10-30VDC PNP NO
PRODUCT PRICE
USD
$27.01
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 871TM-M6NP12-D4 |
| Product Category | Proximity Sensor |
| Sensor Technology | Inductive |
| Proximity Sensor Type | 3-Wire DC Extended Range Standard Barrel |
| Barrel Diameter | 12 mm |
| Nominal Sensing Distance | 6 mm |
| Shielding | Shielded |
| Output Configuration | Normally Open, Source (PNP) |
| Voltage Rating | 10-30 V DC |
| Connection Type | Micro Quick-Disconnect (DC), M12 Connector |
| Housing Material | Stainless Steel 304 |
| Sensing Face | Metal Face |
| IO-Link | Enabled, Protocol 1.1 |
| Switching Frequency | 400 Hz |
| Degree of Protection | IP68, IP69K |
| Sensor Length | 60 mm |
Key Features
Stainless Steel Metal Face
The tubular sensor uses a Stainless Steel 304 housing with a metal sensing face.
PNP Normally Open Output
The documented output configuration is normally open with a source PNP switching output.
IO-Link Enabled
The 871TM-M6NP12-D4 supports IO-Link and is documented with IO-Link protocol version 1.1.
IP68 and IP69K Protection
The sensor has documented IP68 and IP69K degrees of protection for applicable industrial installations.
M12 Quick-Disconnect
The sensor uses a Micro Quick-Disconnect DC connection with an M12 connector interface.
Applications
- Metallic target presence detection
- Machine position sensing
- Industrial automation equipment
- Production line object detection
- Material handling systems
- Machine control applications
- Equipment position monitoring
- IO-Link sensor applications
Purchase Information
We support online purchase of the Allen-Bradley 871TM-M6NP12-D4 Proximity Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 871TM-M6NP12-D4?
The 871TM-M6NP12-D4 is a 3-wire DC inductive proximity sensor with a 12 mm stainless steel tubular housing, metal sensing face and 6 mm nominal sensing distance.
What is the sensing distance of 871TM-M6NP12-D4?
The documented nominal sensing distance is 6 mm.
What is the barrel diameter of 871TM-M6NP12-D4?
The documented barrel diameter is 12 mm.
What output configuration does 871TM-M6NP12-D4 use?
The sensor uses a normally open source PNP output configuration.
What voltage does 871TM-M6NP12-D4 use?
The documented supply voltage range is 10-30 V DC.
Does 871TM-M6NP12-D4 support IO-Link?
Yes. The sensor is IO-Link enabled, and current Rockwell Automation product data lists IO-Link protocol version 1.1.
Is 871TM-M6NP12-D4 shielded?
Yes. The documented sensing configuration is shielded.
What connection type does 871TM-M6NP12-D4 use?
The sensor uses a Micro Quick-Disconnect DC connection with an M12 connector.
What is the housing material?
The documented housing material is Stainless Steel 304 with a metal sensing face.
What protection ratings does 871TM-M6NP12-D4 have?
Rockwell Automation lists IP68 and IP69K degrees of protection for this catalog number.
What is the operating temperature range?
The documented temperature range is -25 to +85 °C.
What should be checked before ordering 871TM-M6NP12-D4?
Check the complete catalog number, 12 mm barrel diameter, 6 mm sensing distance, 10-30 V DC supply, PNP normally open output, shielded configuration, IO-Link requirements and M12 connection against the application requirements.
