Plug-In Construction
The 802T-HP uses the 802T plug-in style for integration into applicable industrial limit switch installations.

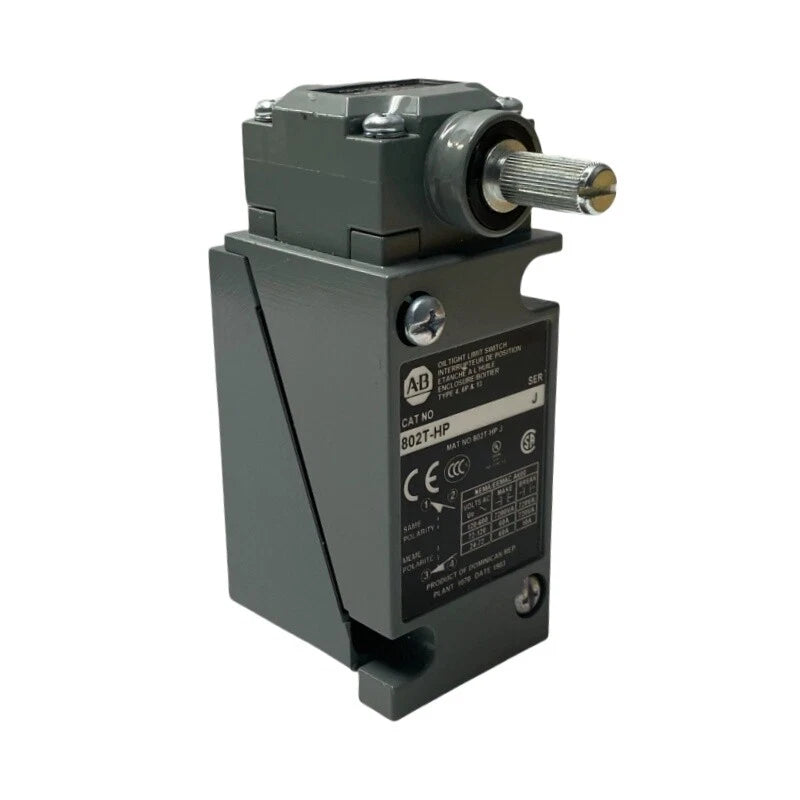

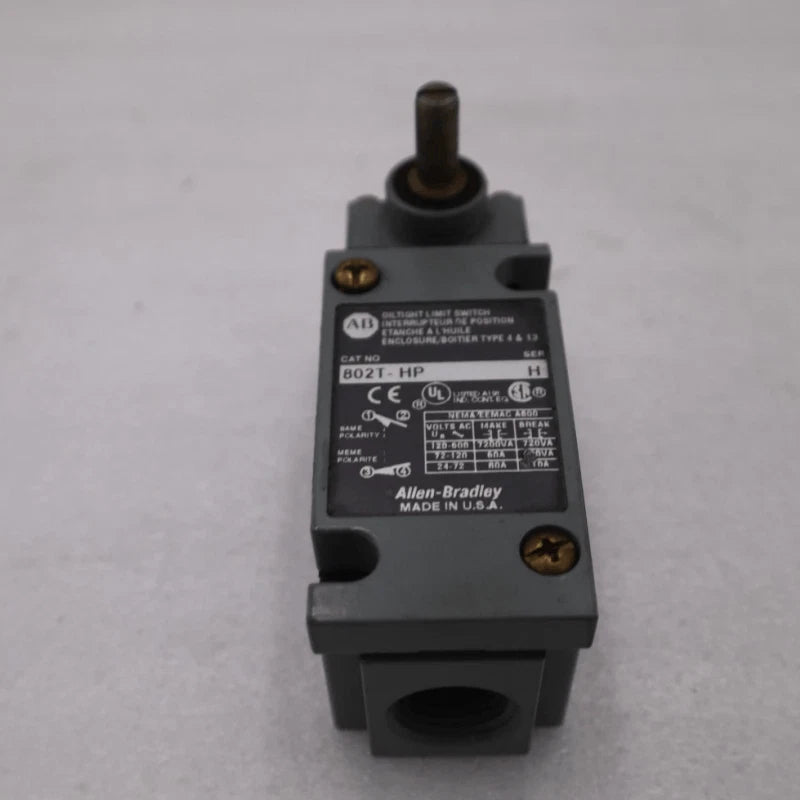

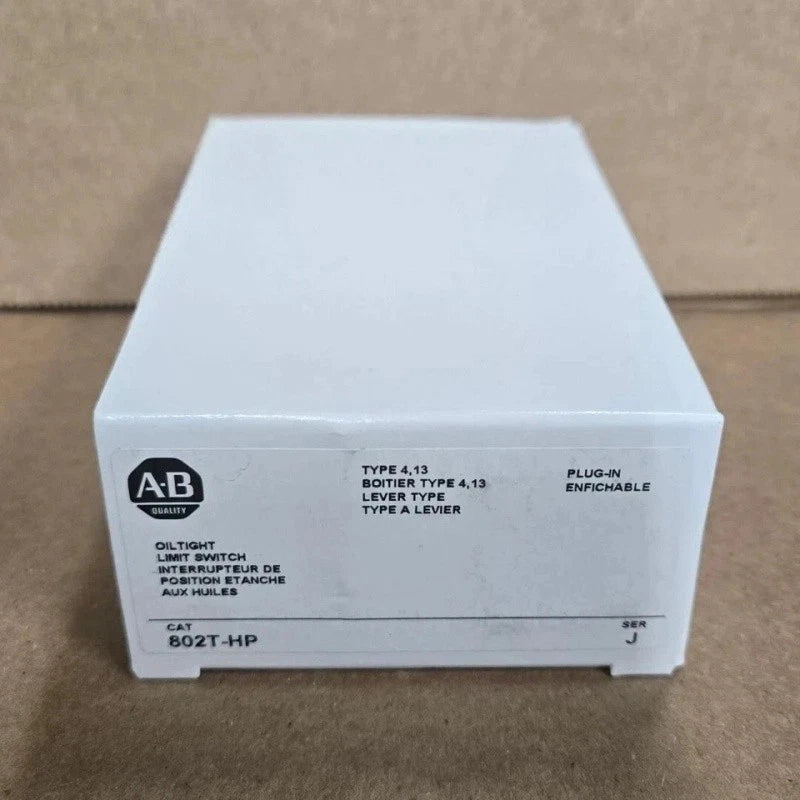

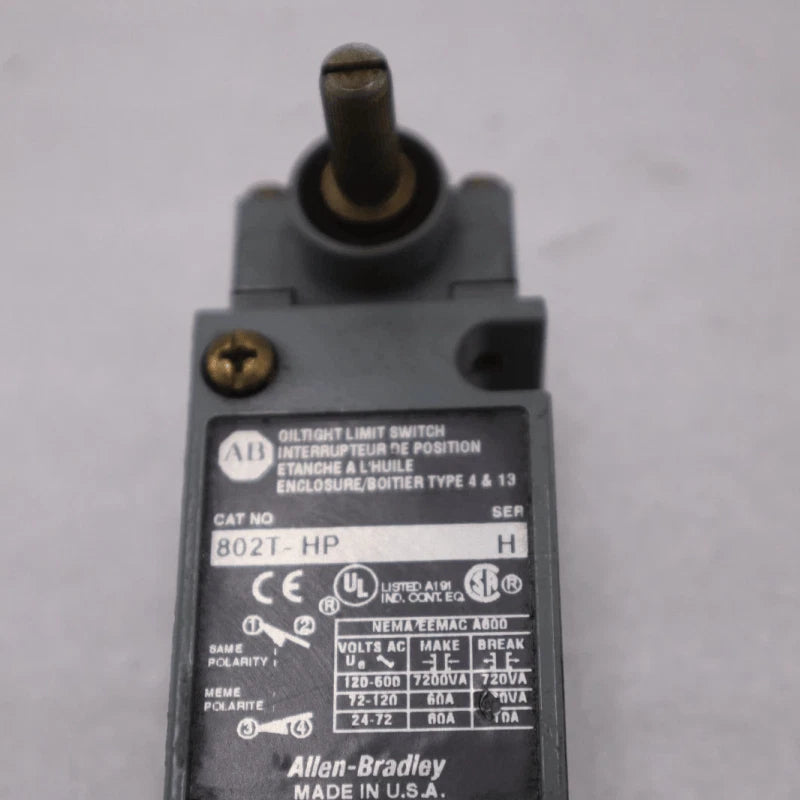

Allen-Bradley 802T-HP Limit Switch Plug-In 2-Circuit NEMA 4/13
Available in stock (400)
Regular price
$79.54
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 802T-HP |
| Product Category | Limit Switch |
| Type | Oiltight Limit Switch |
| Construction | NEMA Type 4 and 13 Oiltight |
| Style | Plug-In |
| Switch Components | Complete Switch |
| Actuation Type | Lever Type, Spring Return, High Operating Torque |
| Number of Circuits | 2-Circuit |
| Mode of Operation | CW and CCW |
| Action | Snap Acting, Standard Contacts |
| Actuator | Rotary Lever Arm |
| Travel to Operate Contacts | 9° Nominal |
| Torque to Operate Contacts | 0.56 N-m (5 lb-in) Maximum |
| Travel to Reset Contacts | 3.5° Maximum |
| Maximum Travel | 90° |
| Operating Lever | Operating Lever Not Selected |
Key Features
2-Circuit Switching
The complete switch is configured with two circuits for mechanical position and travel detection applications.
Spring Return Lever Type
The documented actuation configuration is lever type with spring return and high operating torque.
CW and CCW Operation
The operating head supports both clockwise and counterclockwise actuation.
90 Degree Maximum Travel
The documented maximum actuator travel is 90 degrees, with nominal contact operation at 9 degrees.
NEMA Type 4 and 13
The 802T-HP is specified with NEMA Type 4 and 13 oiltight construction for applicable industrial environments.
Applications
- Machine position detection
- Mechanical end-of-travel detection
- Conveyor control systems
- Material handling equipment
- Industrial machinery control
- Production equipment monitoring
- Factory automation systems
- Mechanical motion detection
Purchase Information
We support online purchase of the Allen-Bradley 802T-HP Limit Switch. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 802T-HP?
The 802T-HP is a plug-in oiltight limit switch with lever-type spring-return actuation, two circuits and clockwise or counterclockwise operation.
Is 802T-HP a complete limit switch?
Yes. Rockwell Automation identifies the 802T-HP switch component configuration as a complete switch.
Is 802T-HP a plug-in limit switch?
Yes. The documented construction is the 802T plug-in style.
How many circuits does 802T-HP have?
The switch has a documented 2-circuit configuration.
What type of actuation does 802T-HP use?
It uses lever-type, spring-return actuation with high operating torque.
Can 802T-HP operate clockwise and counterclockwise?
Yes. The documented mode of operation supports both CW and CCW actuation.
What is the maximum travel of 802T-HP?
The documented maximum travel is 90 degrees.
What is the travel required to operate the contacts?
The nominal travel to operate the contacts is 9 degrees.
What is the maximum operating torque?
The documented maximum torque to operate the contacts is 0.56 N-m (5 lb-in).
Does 802T-HP include a selected operating lever?
The product configuration lists the operating lever as not selected, so the lever requirements should be checked for the intended installation.
What enclosure construction is specified for 802T-HP?
Rockwell Automation specifies NEMA Type 4 and 13 oiltight construction for this catalog number.
What should be checked before ordering 802T-HP?
Check the complete catalog number, plug-in style, 2-circuit requirement, lever configuration, CW and CCW operation, operating torque and the operating lever requirements for the intended installation.
