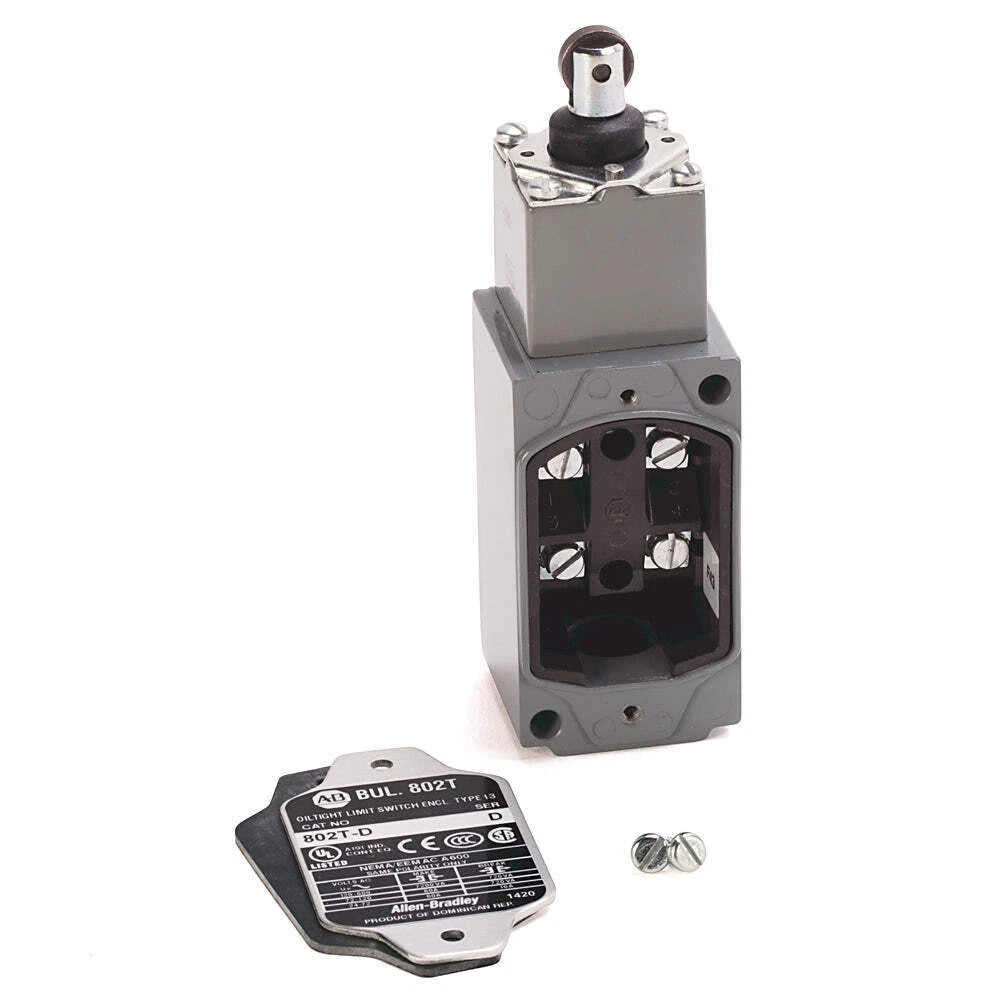

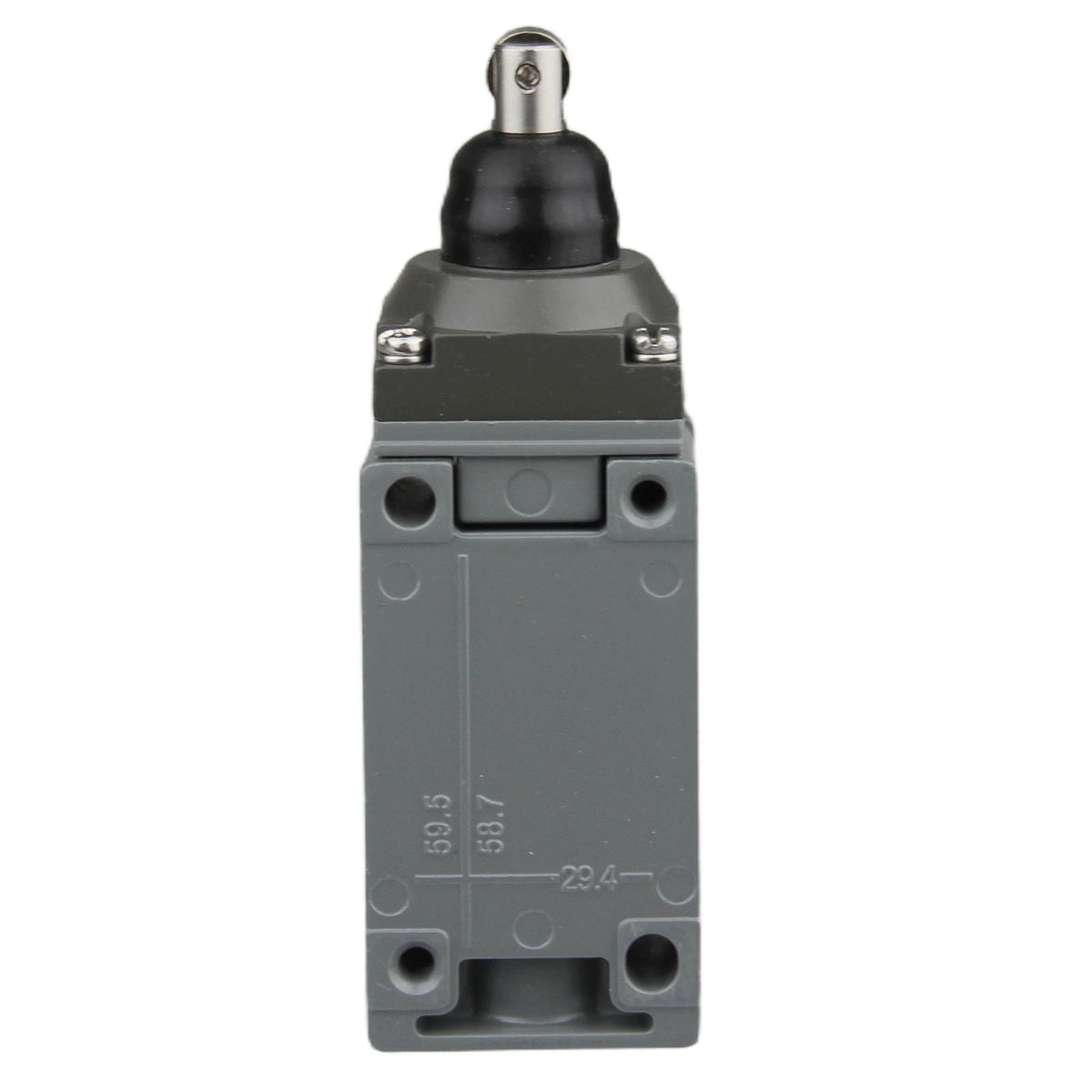

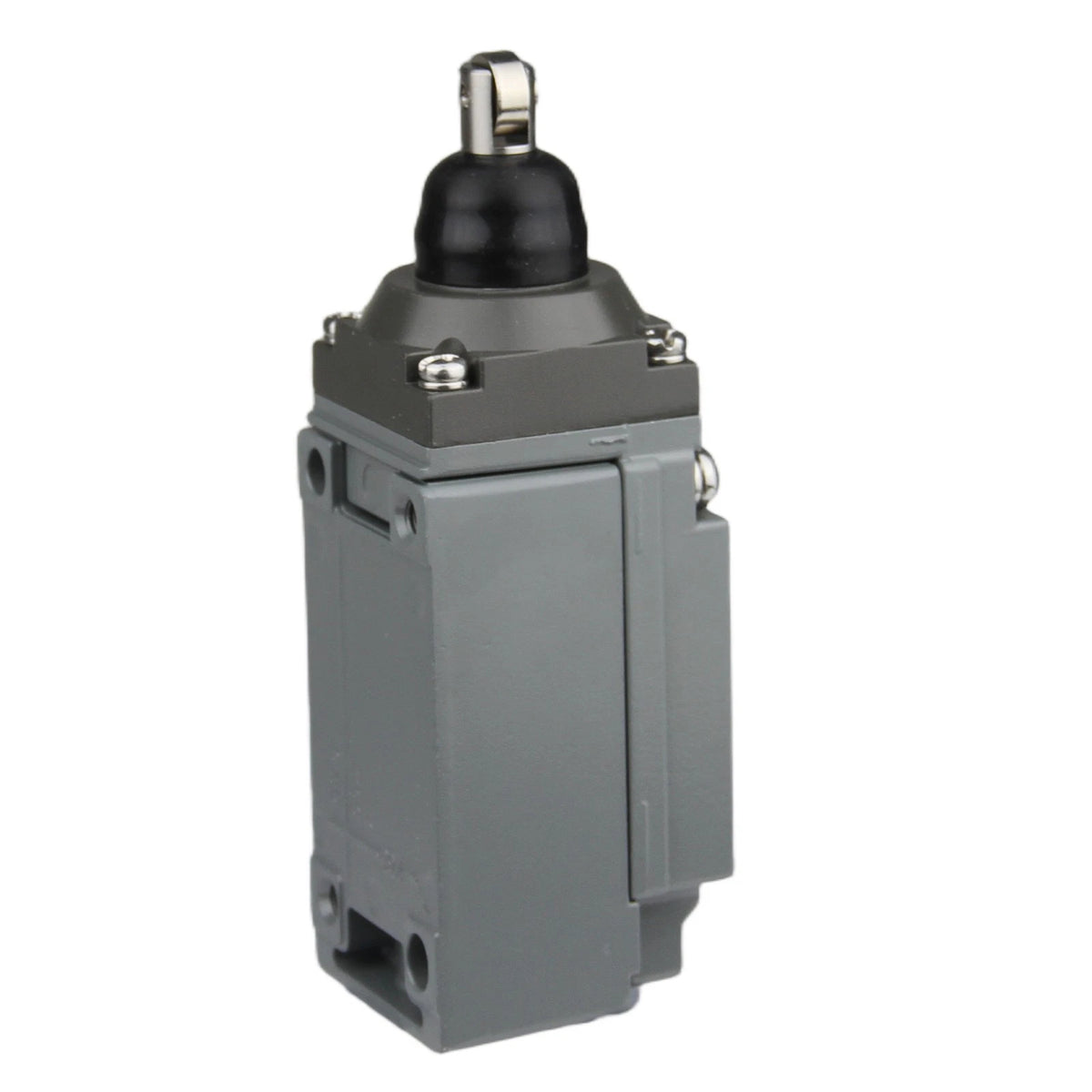

Top Push Roller Actuator
The 802T-D uses a top push roller actuator for mechanical position and travel detection in applicable industrial machinery.
1 / 13
Allen-Bradley
Allen-Bradley 802T-D Limit Switch Top Push Roller 2-Circuit NEMA 4/13
PRODUCT PRICE
USD
$365.39
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 802T-D |
| Product Category | Limit Switch |
| Product Type | Standard Oiltight Limit Switch |
| Construction | NEMA Type 4 and 13 Oiltight |
| Style | Standard Non-Plug-In |
| Switch Components | Whole Switch |
| Actuator | Top Push Roller |
| Number of Circuits | 2-Circuit |
| Contact Action | Snap Acting, Standard Contacts |
| Enclosure | Metal |
Key Features
2-Circuit Configuration
The complete switch is configured with two circuits for integration into applicable machine control and sensing circuits.
Non-Plug-In Design
The 802T-D is specified as a standard non-plug-in limit switch configuration.
Snap-Acting Contacts
The documented switching mechanism uses snap-acting standard contacts for mechanical switching applications.
NEMA Type 4 and 13
The 802T-D is specified with NEMA Type 4 and 13 oiltight construction for applicable industrial installations.
Metal Enclosure
Rockwell Automation product data specifies a metal enclosure for this standard limit switch configuration.
Applications
- Machine position detection
- Mechanical end-of-travel detection
- Conveyor control systems
- Material handling equipment
- Industrial machinery control
- Production equipment monitoring
- Factory automation systems
- Mechanical motion detection
Purchase Information
We support online purchase of the Allen-Bradley 802T-D Limit Switch. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 802T-D?
The 802T-D is a standard non-plug-in oiltight limit switch with a top push roller actuator and 2-circuit configuration.
What actuator does 802T-D use?
The documented actuator type is a top push roller.
How many circuits does 802T-D have?
The switch has a documented 2-circuit configuration.
Is 802T-D a plug-in limit switch?
No. Rockwell Automation identifies the 802T-D as a standard non-plug-in configuration.
Is 802T-D a complete switch?
Yes. The product description identifies the 802T-D as a whole switch.
What contact action does 802T-D use?
The documented contact action is snap acting with standard contacts.
What enclosure material does 802T-D use?
Rockwell Automation specifies a metal enclosure.
What is the operating temperature range of 802T-D?
The documented operating temperature range is -18 to 54 °C.
What enclosure construction is specified for 802T-D?
The product is specified with NEMA Type 4 and 13 oiltight construction.
What applications can 802T-D be considered for?
It can be considered for mechanical position, travel and end-position detection in industrial machinery where a top push roller limit switch meets the application requirements.
Can 802T-D be considered for an existing limit switch installation?
It can be considered after the complete catalog number, non-plug-in construction, top push roller actuator, 2-circuit configuration, mounting and electrical requirements have been checked against the existing installation.
What should be checked before ordering 802T-D?
Check the complete catalog number, top push roller actuator, 2-circuit configuration, non-plug-in construction, enclosure requirements, mounting arrangement and electrical requirements of the intended application.
