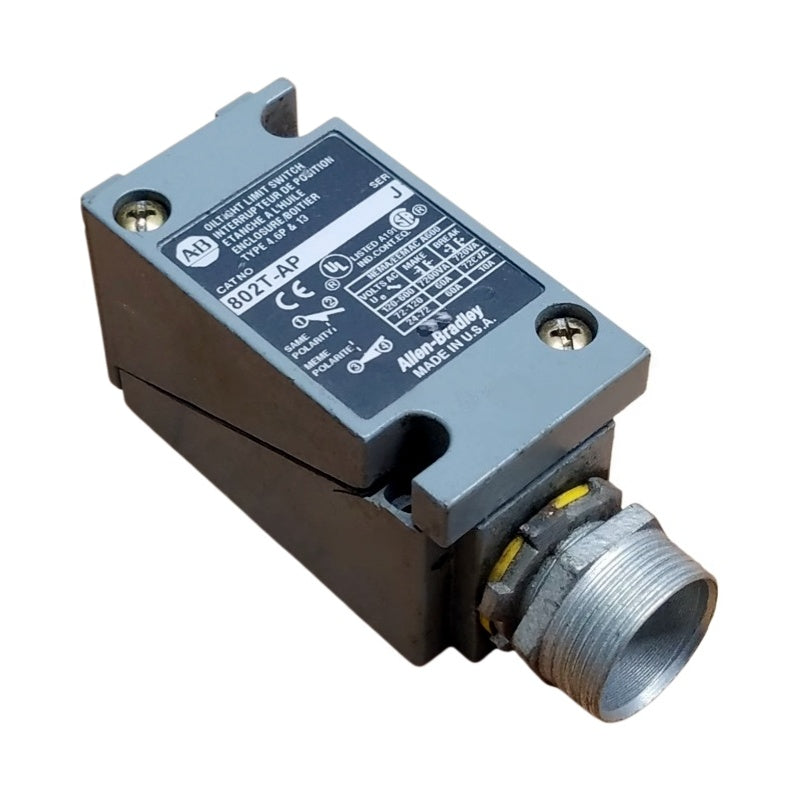

Allen-Bradley 802T-AP Plug-In 2-Circuit Oiltight Limit Switch
PRODUCT PRICE
USD
$66.91
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Allen-Bradley 802T-AP Plug-In 2-Circuit Oiltight Limit Switch
The Allen-Bradley 802T-AP Limit Switch is a complete Bulletin 802T position-sensing switch for electrical control systems and machine equipment. It features a plug-in construction, lever-type actuator, spring-return operation, standard operating torque, and two switching circuits. The switch supports clockwise and counterclockwise actuation for mechanical position detection in compatible control arrangements.
Product Features
The plug-in design allows the switch head and body to be serviced or replaced while the installed wiring base remains in position, helping reduce rewiring during maintenance. Its lever-operated, spring-return mechanism supports repeatable mechanical actuation by cams, moving machine components, and equipment parts. The two-circuit configuration provides switching functionality for OEM machinery, factory control systems, equipment upgrades, and replacement maintenance.
Technical Specifications
| Brand | Allen-Bradley |
| Model | 802T-AP |
| Product Category | Limit Switch |
| Product Family | Bulletin 802T |
| Product Type | Metal Plug-In Oiltight Limit Switch |
| Construction | Plug-In, Complete Switch |
| Actuation Type | Lever Type, Spring Return |
| Operating Torque | Standard Operating Torque |
| Number of Circuits | 2-Circuit |
| Mode of Operation | Clockwise and Counterclockwise |
| Protection Rating | NEMA Type 4 and 13 |
Product Advantages
The Allen-Bradley 802T-AP Limit Switch combines a serviceable plug-in structure with a metal oiltight construction for use in machine control environments. Its replaceable switch body arrangement can simplify maintenance procedures by reducing the need to disconnect and reconnect field wiring. The standard lever mechanism and bidirectional operation also support flexible integration into compatible machine designs and existing Bulletin 802T installations.
Applications
The Allen-Bradley 802T-AP Limit Switch is used for mechanical position sensing in industrial automation, factory automation, machine equipment, OEM equipment, material-handling systems, and electrical control systems. Typical functions include detecting equipment travel, component position, machine movement, and end-of-travel conditions.
We support online purchase of Allen-Bradley 802T-AP Limit Switch. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
