On-Delay Timing Function
The 700-HRM configuration provides a single-function on-delay timing operation for industrial control sequencing applications.

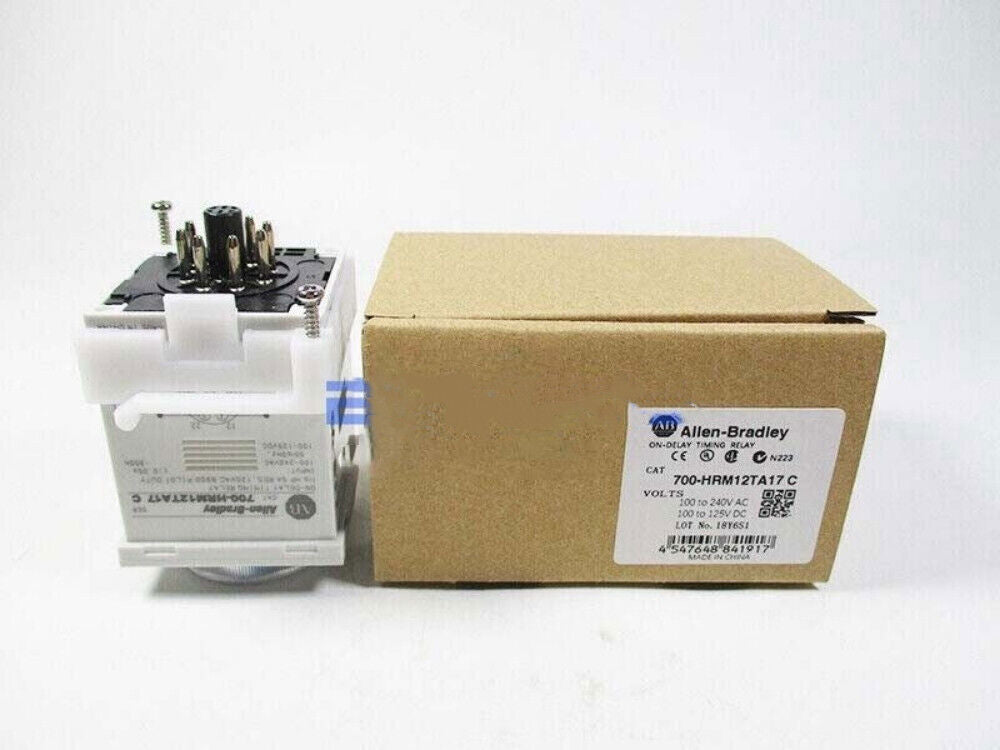

Allen-Bradley 700-HRM12TA17C On-Delay Timing Relay
Available in stock (200)
Regular price
$43.70
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 700-HRM12TA17C |
| Product Category | On-Delay Timing Relay |
| Product Family | 700-HR |
| Timer Type | Single-Function On-Delay |
| Contact Configuration | DPDT Timed |
| Number of Timed Contacts | 2 |
| Timing Range | 0.05 s to 300 h |
| Supply Voltage | 100-240 V AC 50/60 Hz / 100-125 V DC |
| Nominal Contact Current | 5 A |
| Connection Type | Plug-In |
| Base Configuration | 8-Pin Tube Base |
| Degree of Protection | IP40, Panel Surface |
Key Features
0.05s to 300h Timing Range
The documented timing range extends from 0.05 seconds to 300 hours, allowing the required delay interval to be selected within the available ranges.
DPDT Timed Contacts
The relay uses a DPDT timed contact arrangement with two timed contacts for control circuit switching.
Multi-Voltage Supply
The documented supply range is 100-240 V AC at 50/60 Hz or 100-125 V DC.
5A Contact Rating
Rockwell Automation technical data specifies a nominal contact current rating of 5 A for the 700-HRM timing relay configuration.
Plug-In Tube Base
The timing relay uses a plug-in tube-base configuration for use with the applicable 8-pin socket arrangement.
Applications
- Industrial control timing circuits
- Machine sequence delay control
- Motor control timing applications
- Control panel timing functions
- Process sequence control
- Equipment start-delay circuits
- Industrial automation timing systems
- Control system maintenance projects
Purchase Information
We support online purchase of the Allen-Bradley 700-HRM12TA17C On-Delay Timing Relay. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 700-HRM12TA17C?
Allen-Bradley 700-HRM12TA17C is an on-delay timing relay in the 700-HR timing relay range.
What timing function does 700-HRM12TA17C use?
The documented 700-HRM12TA17 configuration uses a single-function on-delay timing mode.
What is the timing range?
The documented timing range for this 700-HRM configuration is 0.05 seconds to 300 hours.
What contact configuration is used?
The documented contact arrangement is DPDT timed with two timed contacts.
What supply voltage is specified?
The documented supply range is 100-240 V AC at 50/60 Hz or 100-125 V DC.
What contact current rating is specified?
Rockwell Automation technical data identifies a nominal contact current rating of 5 A for the 700-HRM timing relay configuration.
What connection type does the timing relay use?
The documented connection method is a plug-in tube-base arrangement.
What socket arrangement is used?
The 700-HRM timing relay configuration uses an 8-pin tube base. The required socket should be checked against the installation requirements before ordering.
What applications can 700-HRM12TA17C be considered for?
It can be considered for control sequencing, start delays, machine timing and other industrial timing functions after circuit requirements have been checked.
Can 700-HRM12TA17C be used in an existing timing circuit?
The complete catalog number, supply voltage, timing range, DPDT contact requirements, socket configuration and circuit wiring should be verified against the existing system.
What should be checked before selecting a socket?
Check the 8-pin tube-base configuration, terminal arrangement and installation requirements against the socket and control panel design.
What should be checked before ordering 700-HRM12TA17C?
Check the complete 700-HRM12TA17C catalog number, required on-delay function, timing range, supply voltage, DPDT timed contacts and 8-pin socket requirements before purchasing.
