On-Delay Timing Function
The 700-HRM12TA17 provides a single on-delay timing function for time-controlled industrial switching circuits.
1 / 8
Allen-Bradley

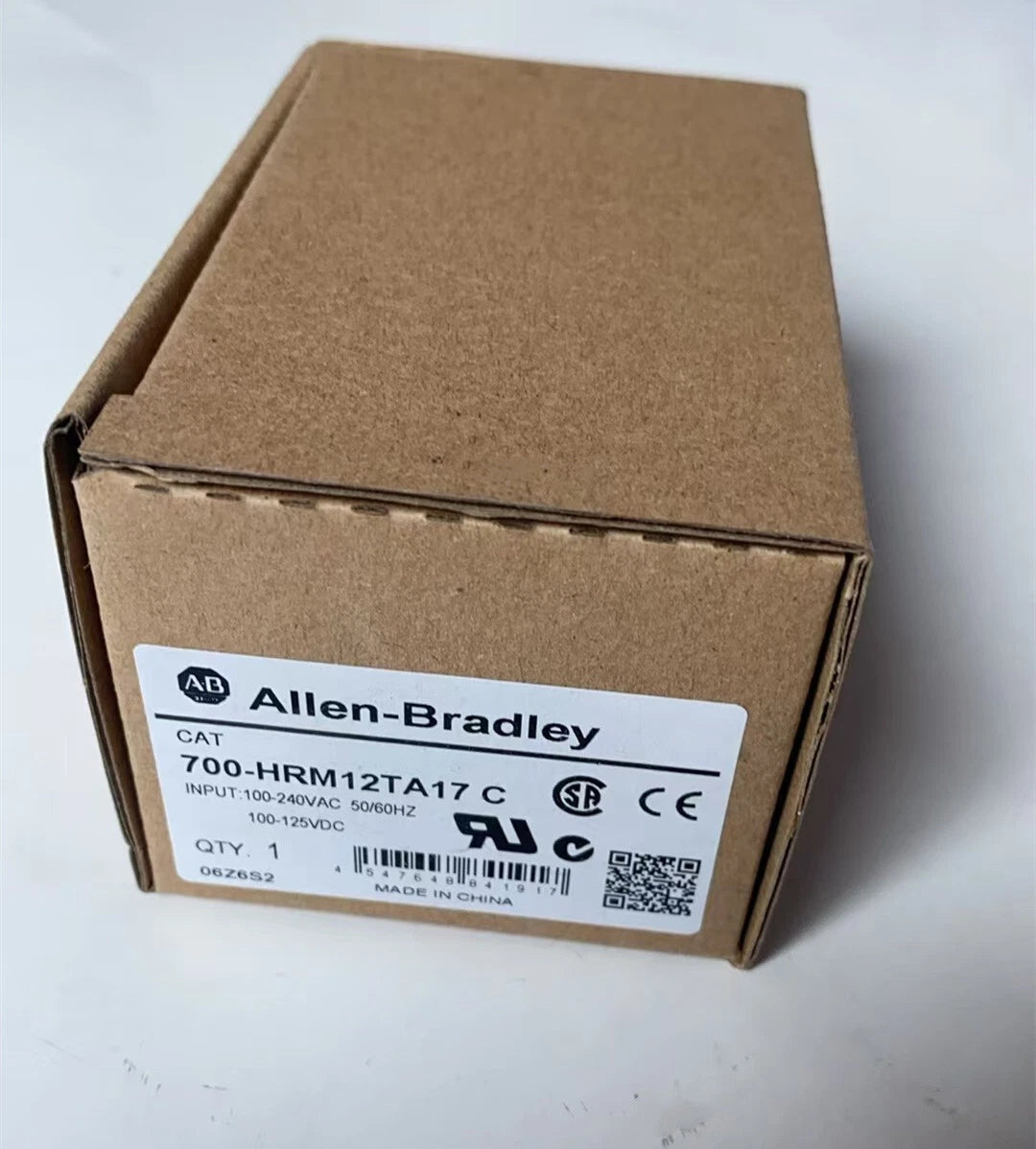

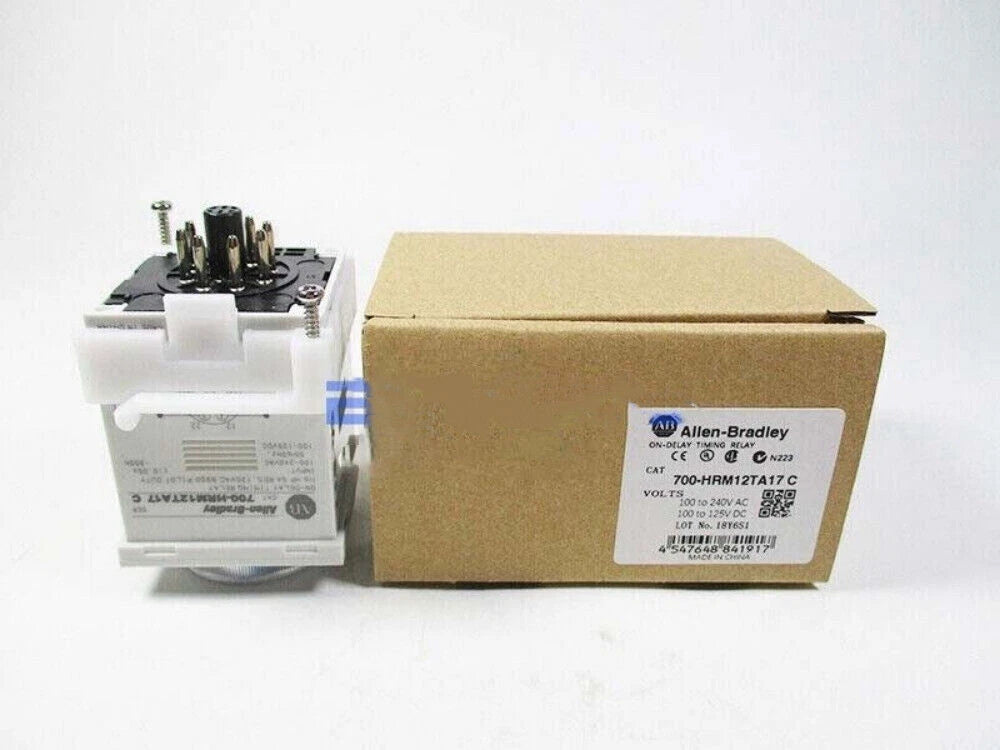

Allen-Bradley 700-HRM12TA17 Timing Relay On-Delay DPDT 0.05s-300h
PRODUCT PRICE
USD
$37.55
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 700-HRM12TA17 |
| Product Category | Timing Relay |
| Series | 700-HR |
| Product Type | Tube Base Dial Timing Relay |
| Timer Type | Single Function, Two Timed Contacts |
| Timing Mode | On-Delay |
| Contact Configuration | DPDT Timed Contact Arrangement |
| Timing Range | 0.05 Seconds to 300 Hours |
| Supply Voltage | 100–240 V AC 50/60 Hz / 100–125 V DC |
| Connection Type | Plug-In Connection |
| Nominal Current | 5 A |
| Electrical Life | Minimum 100,000 Operations at 5 A, 250 V AC Resistive Load |
| Power Consumption | 2.1 VA at 240 V AC, Output ON |
| Degree of Protection | IP40, Panel Surface |
| Dielectric Strength | 2000 V AC, Pole-to-Pole, 50/60 Hz for 1 Minute |
| Width | 48 mm |
| Depth | 81.5 mm |
Key Features
0.05s to 300h Timing Range
The adjustable timing range extends from 0.05 seconds to 300 hours for applications requiring short or extended delay periods.
DPDT Timed Contacts
The relay provides two timed contacts in a DPDT contact arrangement for applicable control circuit requirements.
AC/DC Supply
The documented supply range is 100–240 V AC at 50/60 Hz or 100–125 V DC.
Plug-In Connection
The timing relay uses a plug-in electrical connection for integration with a suitable socket arrangement.
Dial Timing Relay
The Bulletin 700-HR design provides dial-based timing adjustment for industrial control and sequencing applications.
Applications
- Machine sequence timing
- Industrial control panels
- Process delay circuits
- Conveyor timing controls
- Motor control sequences
- Production equipment controls
- Factory automation systems
- Time-dependent switching circuits
Purchase Information
We support online purchase of the Allen-Bradley 700-HRM12TA17 Timing Relay. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 700-HRM12TA17?
The 700-HRM12TA17 is a Bulletin 700-HR tube base dial timing relay with an on-delay timing function and two timed contacts.
What timing function does 700-HRM12TA17 use?
The documented timing mode is on-delay.
What is the timing range of 700-HRM12TA17?
The documented adjustable timing range is 0.05 seconds to 300 hours.
What contact configuration does 700-HRM12TA17 have?
The timing relay uses a DPDT timed contact arrangement with two timed contacts.
What supply voltage does 700-HRM12TA17 use?
The documented supply range is 100–240 V AC at 50/60 Hz or 100–125 V DC.
What connection type does 700-HRM12TA17 use?
The relay uses a plug-in electrical connection.
What is the nominal current rating?
The documented nominal current is 5 A.
What is the documented electrical life?
Rockwell Automation specifies a minimum of 100,000 operations at 5 A and 250 V AC with a resistive load under the stated test conditions.
What degree of protection is specified?
The documented degree of protection is IP40 at the panel surface.
Does 700-HRM12TA17 include a plug-in socket?
The relay is specified with a plug-in connection, while the product data identifies the plug-in socket as not included.
Can 700-HRM12TA17 be considered for an existing timing circuit?
It can be considered after the complete catalog number, on-delay function, timing range, DPDT contact arrangement, supply voltage and socket requirements have been checked against the existing circuit.
What should be checked before ordering 700-HRM12TA17?
Check the complete catalog number, 0.05-second to 300-hour timing range, on-delay function, DPDT timed contacts, AC or DC supply requirements and the required plug-in socket arrangement.
