2NO and 2NC Contacts
The 700-CF220D provides two normally open and two normally closed contacts in a four-pole control relay configuration.
1 / 14
Allen-Bradley

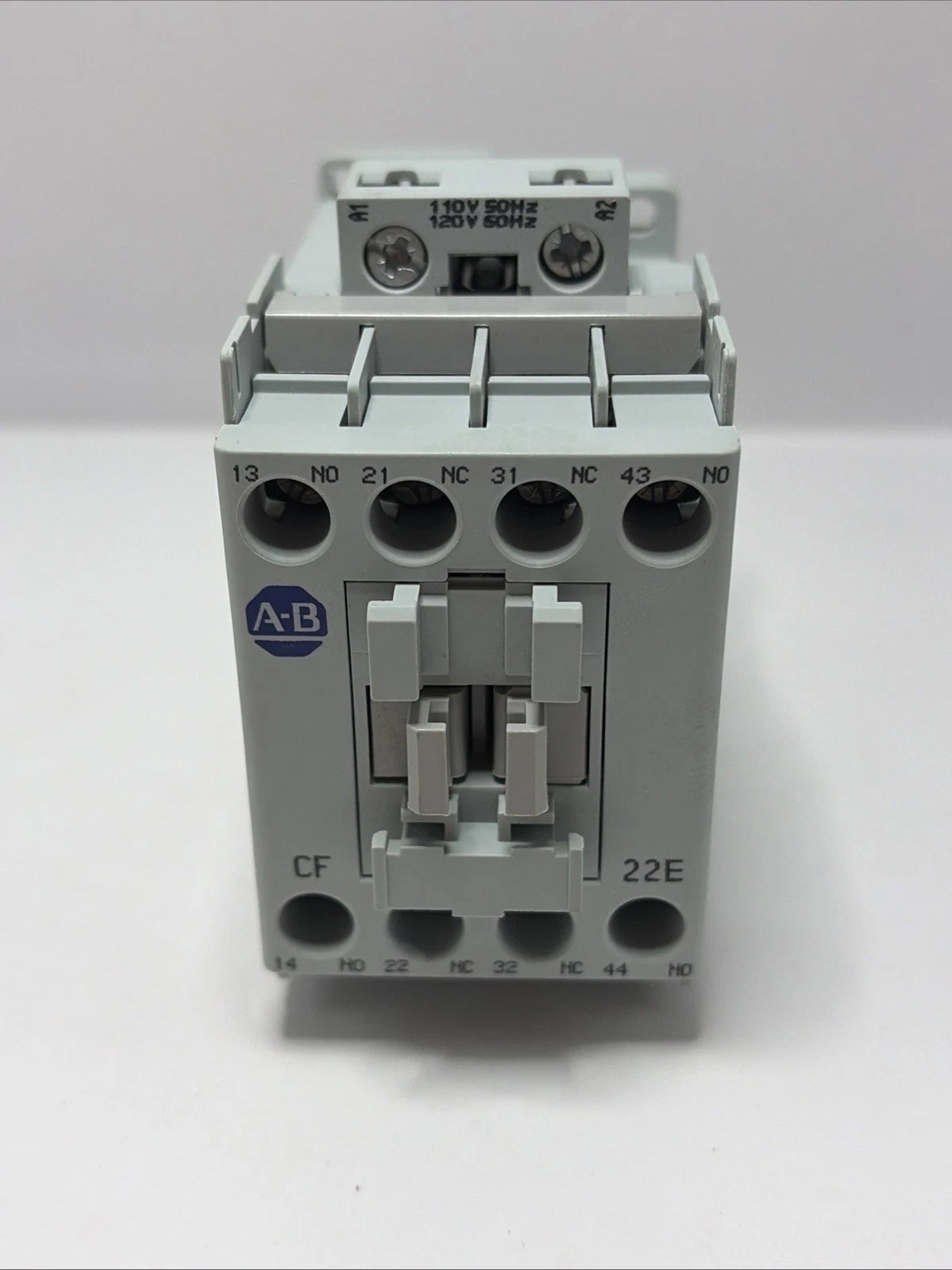

Allen-Bradley 700-CF220D Control Relay 2NO 2NC 110/120V AC Screw Terminal
PRODUCT PRICE
USD
$72.58
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 700-CF220D |
| Product Category | Control Relay |
| Series | 700-CF |
| Product Type | IEC Control Relay |
| Contact Configuration | 2 N.O. / 2 N.C. |
| Number of Poles | 4 |
| Contact Type | Standard Contacts |
| Coil Voltage at 50 Hz | 110 V AC |
| Coil Voltage at 60 Hz | 120 V AC |
| Actuating Voltage Type | AC |
| Terminal Type | Screw Terminals |
| Mounting Method | DIN Rail / Screw |
| Side Auxiliary Contact Rating | NEMA A600 / Q600 |
| Rated Impulse Strength | 6 kV |
| Mechanical Life | 15,000,000 Operations |
| Shock Resistance | 30 G, 11 ms Half-Sine |
| Weight | 390 g with AC Coil |
Key Features
110/120V AC Coil
The documented coil rating is 110 V AC at 50 Hz and 120 V AC at 60 Hz for AC-operated industrial control circuits.
IEC Control Relay
The 700-CF220D belongs to the Bulletin 700-CF IEC control relay family for industrial switching and control applications.
Screw Terminal Connection
The relay uses screw terminals for electrical connections within compatible control panel assemblies.
DIN Rail or Screw Mounting
The documented mounting methods include DIN rail and screw mounting for integration into industrial control cabinets.
Standard Contact Design
The relay is configured with standard contacts and a balanced 2 N.O. / 2 N.C. arrangement for multiple control paths.
Applications
- Industrial control panels
- Machine automation circuits
- Motor control systems
- PLC interface circuits
- Industrial interlocking circuits
- Control cabinet assemblies
- Production equipment controls
- Factory automation systems
Purchase Information
We support online purchase of the Allen-Bradley 700-CF220D Control Relay. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 700-CF220D?
The 700-CF220D is a Bulletin 700-CF IEC control relay with four poles and a 2 N.O. / 2 N.C. standard contact arrangement.
What contact configuration does 700-CF220D have?
The documented configuration is two normally open contacts and two normally closed contacts.
What coil voltage does 700-CF220D use?
The coil is rated 110 V AC at 50 Hz and 120 V AC at 60 Hz.
Is 700-CF220D an AC or DC operated relay?
The documented actuating voltage type is AC.
What terminal type does 700-CF220D use?
The relay uses screw terminals.
How can 700-CF220D be mounted?
The documented mounting methods are DIN rail and screw mounting.
How many poles does 700-CF220D have?
The relay has four poles, consisting of two normally open and two normally closed contacts.
What auxiliary contact rating is documented?
Rockwell Automation specifies NEMA A600 and Q600 ratings for applicable side-mounted auxiliary contacts.
What is the mechanical life of 700-CF220D?
The documented mechanical life is 15,000,000 operations.
What impulse strength is specified?
The documented rated impulse strength is 6 kV.
Can 700-CF220D be considered for an existing control relay application?
It can be considered after the complete catalog number, 110/120 V AC coil requirement, 2 N.O. / 2 N.C. contact arrangement, terminal type and mounting requirements have been checked against the existing system.
What should be checked before ordering 700-CF220D?
Check the complete model number, AC coil frequency and voltage, four-pole 2 N.O. / 2 N.C. contact configuration, screw-terminal connection and mounting requirements of the intended control circuit.
