8 Analog Input Channels
The 5094-IF8 provides eight single-ended analog input channels for collecting voltage and current signals in FLEX 5000 I/O systems.

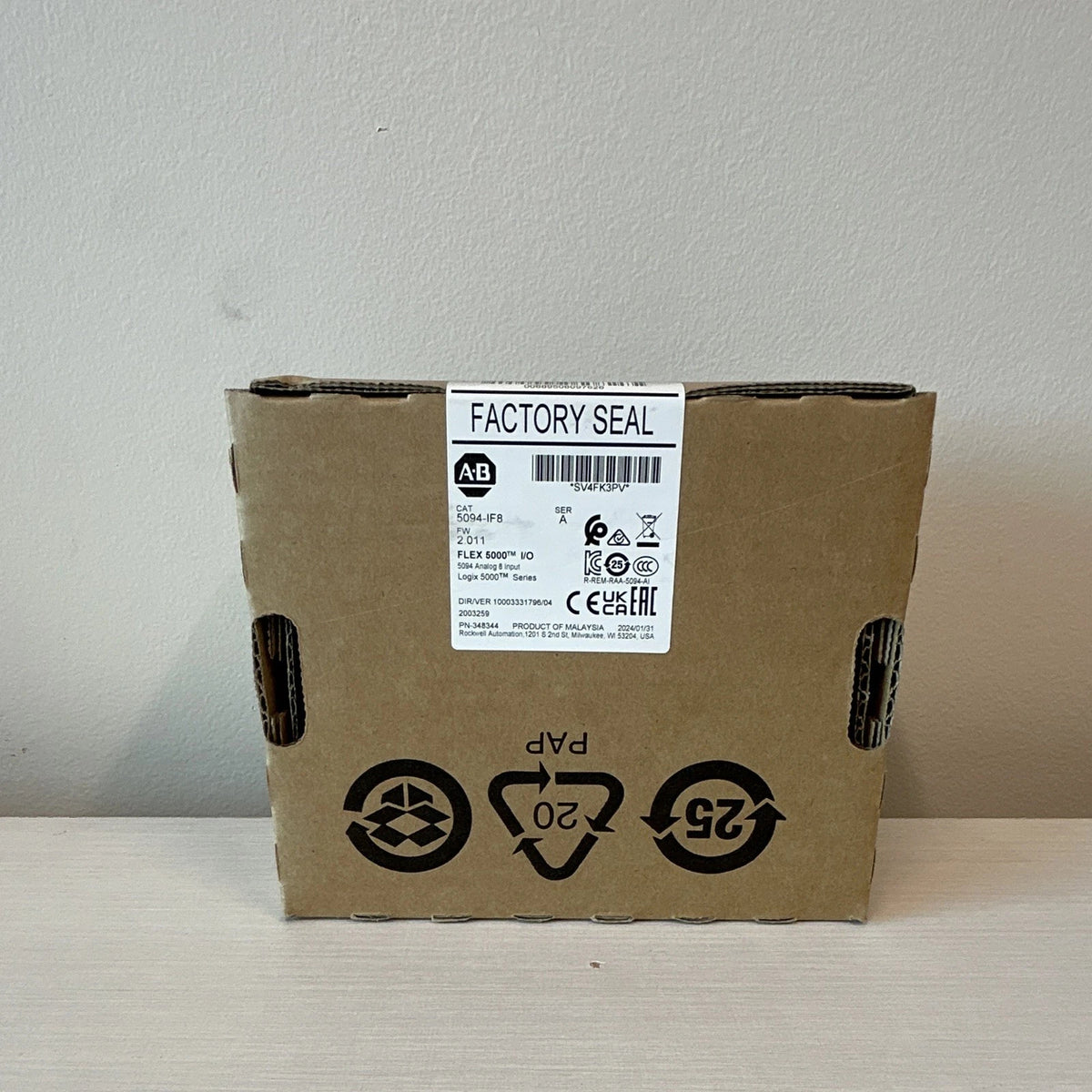

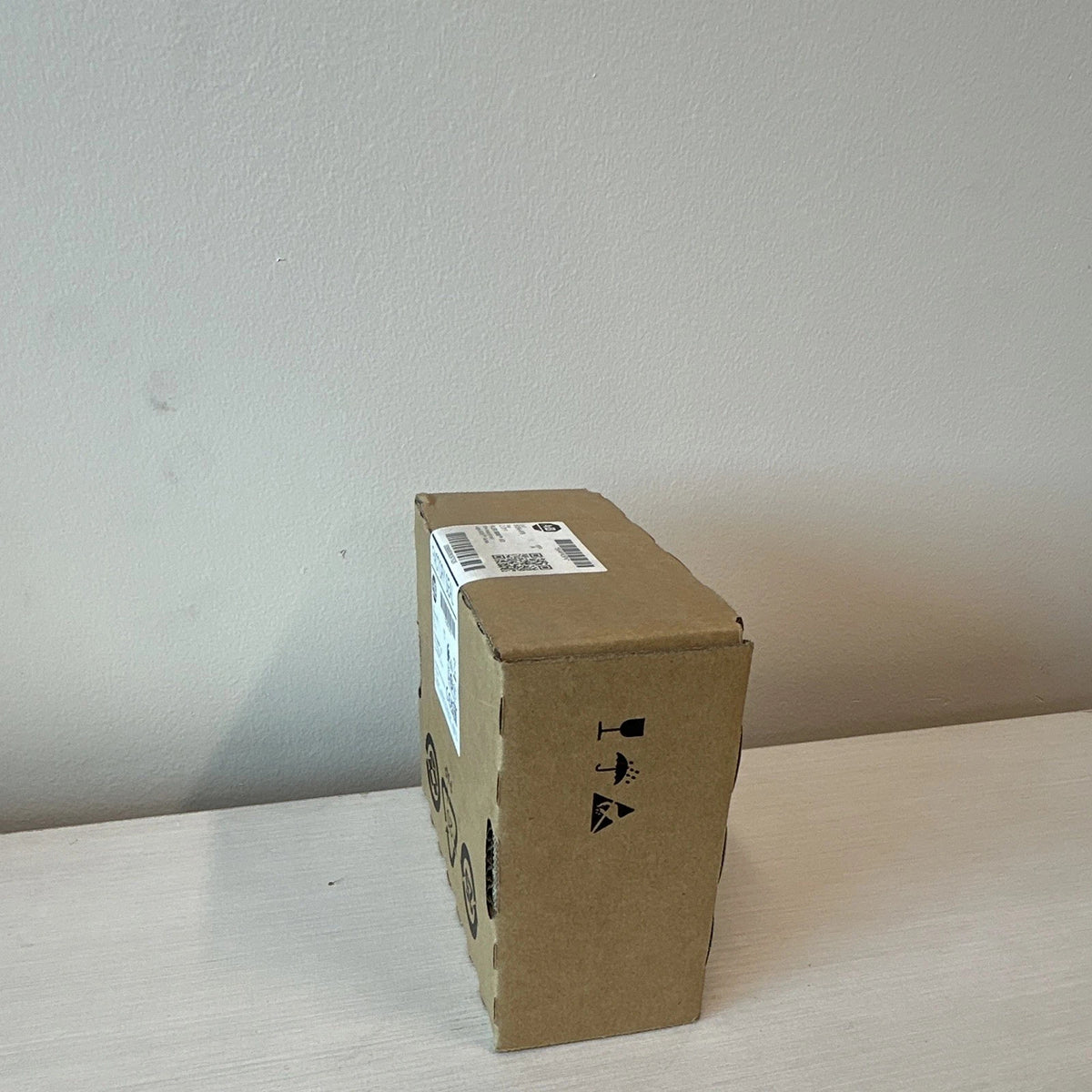

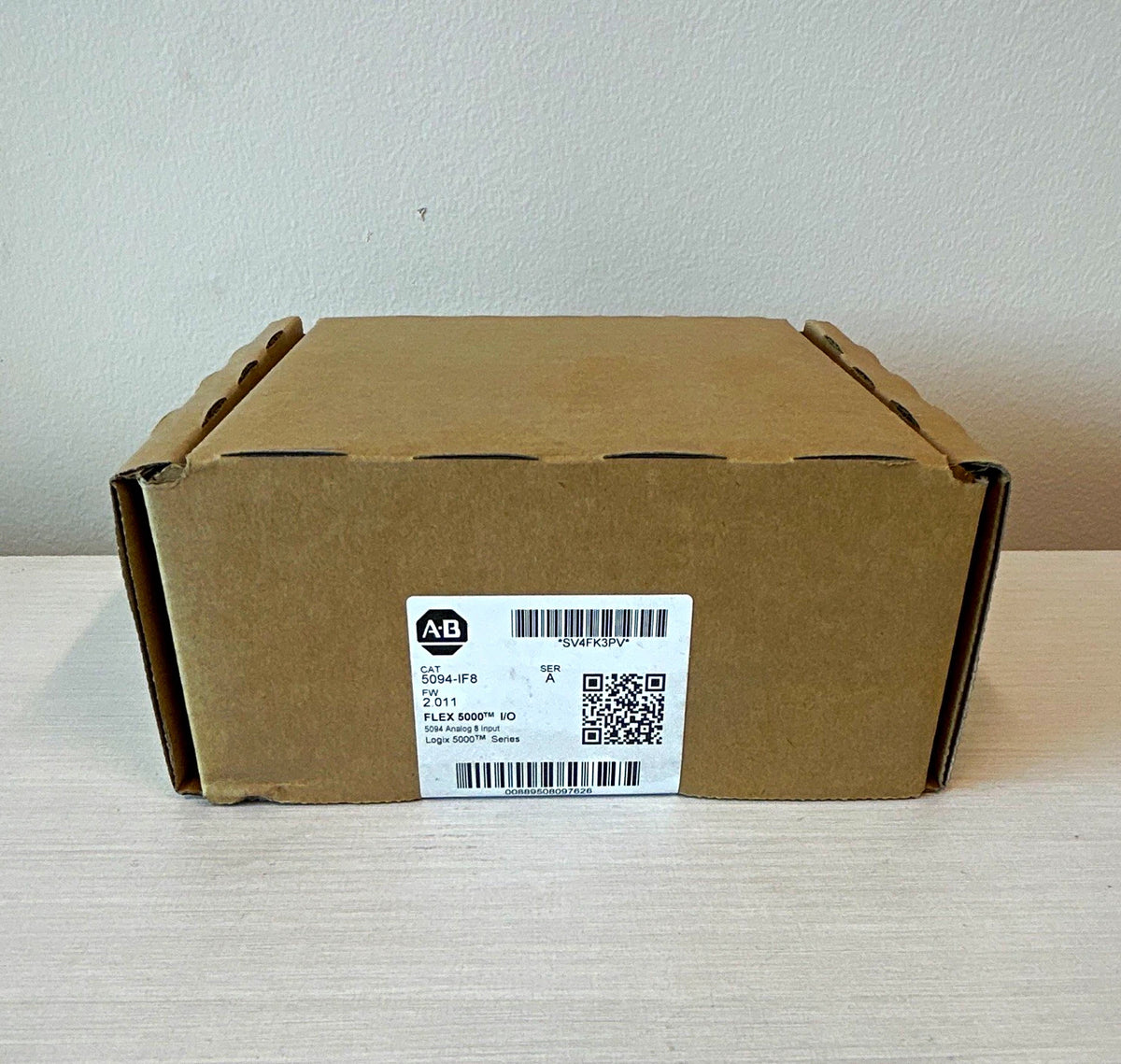

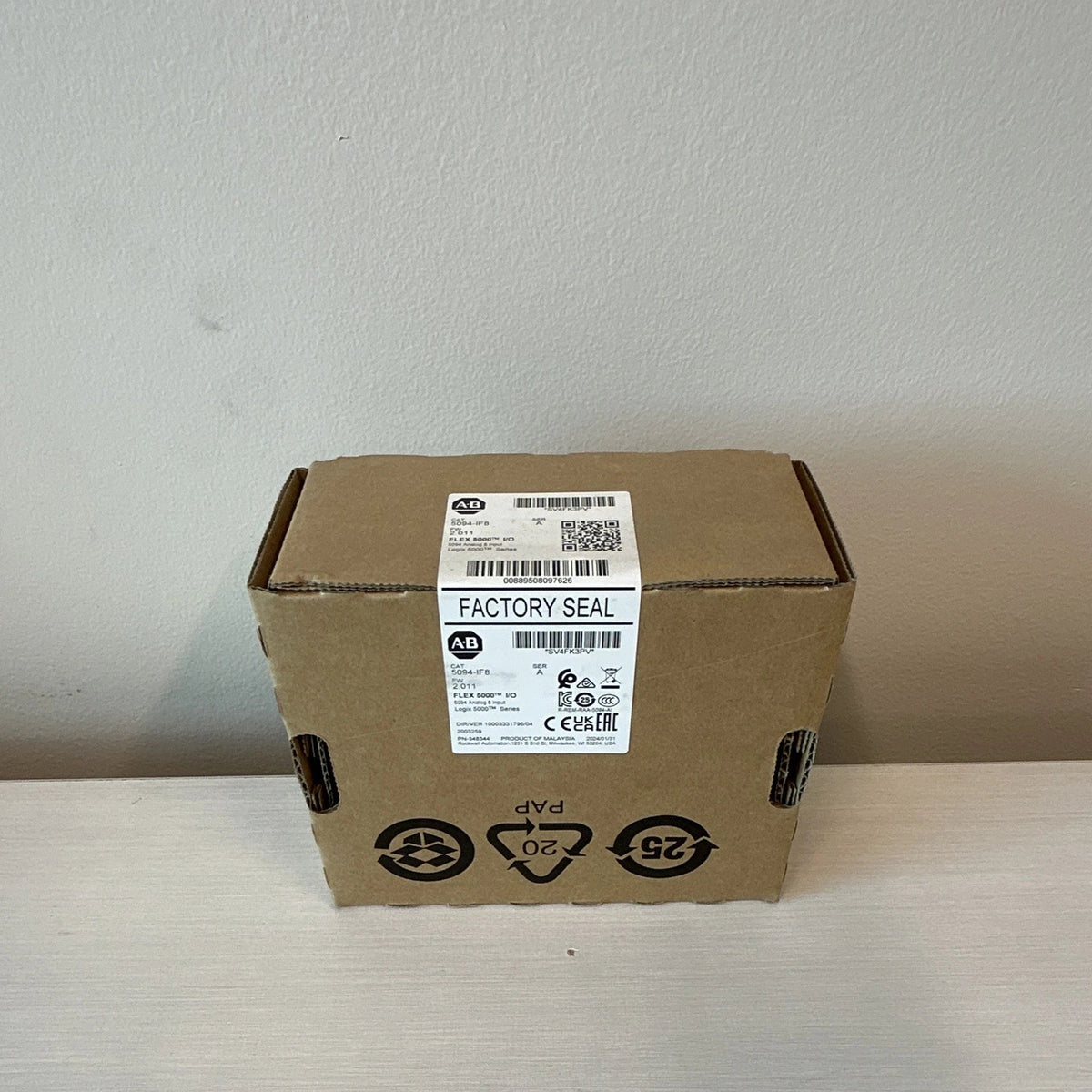

Allen-Bradley 5094-IF8 Analog Input Module 8-Channel ±10V 4-20mA
Available in stock (400)
Regular price
$601.89
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 5094-IF8 |
| Product Category | Analog Input Module |
| Series | FLEX 5000 |
| Product Type | Analog Input Module |
| Number of Inputs | 8 Single-Ended |
| Supported Input Types | Voltage and Current |
| Voltage Input Ranges | ±10 V; 0–10 V; 0–5 V |
| Current Input Ranges | 0–20 mA; 4–20 mA |
| Voltage Input Impedance | >1 MΩ |
| Current Input Impedance | 250 Ω Typical |
| Conversion Method | Sigma-Delta, Two 24-Bit Multiplexed ADCs |
| Voltage Resolution | <320 µV/count at ±10.5 V; <160 µV/count at 0–10.5 V; <80 µV/count at 0–5.25 V |
| Current Resolution | <0.32 µA/count |
| Calibrated Accuracy at 25 °C | 0.05% Full Scale for Voltage and Current |
| Input Channel Isolation | Non-Isolated Channels |
| Notch Filter Settings | 5, 10, 15, 20, 50, 60, 100, 200, 500, 1000 Hz |
Key Features
Voltage and Current Inputs
Each channel can be configured for supported voltage or current input types according to the measurement requirements of the application.
Multiple Input Ranges
Supported ranges include ±10 V, 0–10 V, 0–5 V, 0–20 mA and 4–20 mA, selected on a channel-by-channel basis.
24-Bit ADC Architecture
The module uses a Sigma-Delta conversion method with two multiplexed 24-bit analog-to-digital converters.
Configurable Notch Filtering
Multiple notch filter settings are available to attenuate line noise and support different sampling and noise-rejection requirements.
FLEX 5000 Platform
The 5094-IF8 is part of the Allen-Bradley FLEX 5000 distributed I/O family and is configured through applicable Logix Designer systems.
Applications
- Process instrumentation inputs
- 4–20 mA transmitter signals
- Voltage sensor measurements
- Industrial process monitoring
- Machine automation systems
- PLC distributed I/O systems
- Factory automation equipment
- Analog field signal acquisition
Purchase Information
We support online purchase of the Allen-Bradley 5094-IF8 Analog Input Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 5094-IF8?
The 5094-IF8 is a FLEX 5000 eight-channel single-ended analog input module for voltage and current signals.
How many input channels does 5094-IF8 have?
The module provides eight single-ended analog input channels.
What voltage ranges does 5094-IF8 support?
The documented voltage input ranges are ±10 V, 0 to 10 V and 0 to 5 V.
What current ranges does 5094-IF8 support?
The documented current input ranges are 0 to 20 mA and 4 to 20 mA.
Can voltage and current ranges be configured by channel?
Yes. The input type and available range are selected on a channel-by-channel basis.
What is the input impedance of 5094-IF8?
The documented voltage input impedance is greater than 1 MΩ, while current input impedance is typically 250 Ω.
What conversion method does the module use?
The module uses Sigma-Delta conversion with two multiplexed 24-bit analog-to-digital converters.
What calibrated accuracy is specified?
Rockwell Automation specifies calibrated accuracy at 25 °C of 0.05% of full scale for both voltage and current inputs.
Are the eight channels isolated from each other?
The 5094-IF8 channels are documented as single-ended, non-isolated channels.
Does 5094-IF8 include a notch filter?
Yes. Available notch filter settings include 5, 10, 15, 20, 50, 60, 100, 200, 500 and 1000 Hz.
Can 5094-IF8 be considered for an existing FLEX 5000 system?
It can be considered after the complete catalog number, analog signal type, required input range, terminal base requirements and controller configuration have been checked.
What should be checked before ordering 5094-IF8?
Check the complete model number, required number of channels, voltage or current signal ranges, channel wiring method, FLEX 5000 terminal base requirements and system configuration.
