16 DC Output Channels
The 5069-OB16 provides 16 sourcing digital outputs for driving compatible DC field devices in Compact 5000 I/O systems.

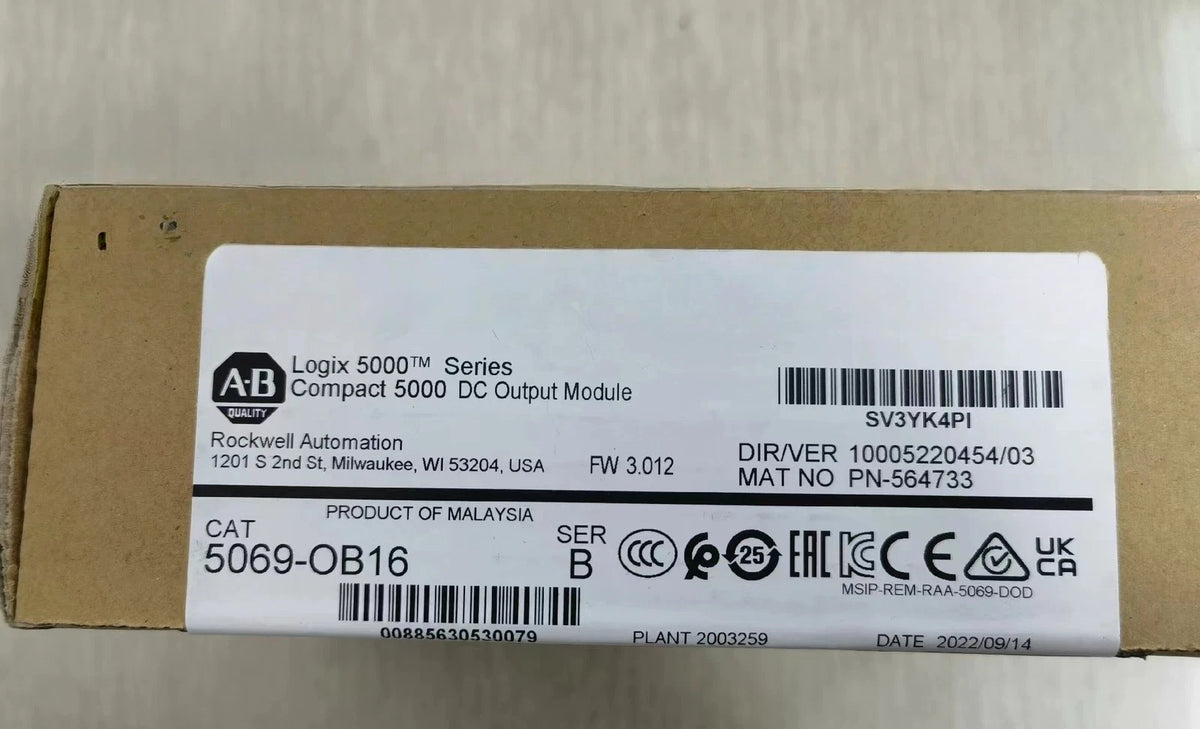

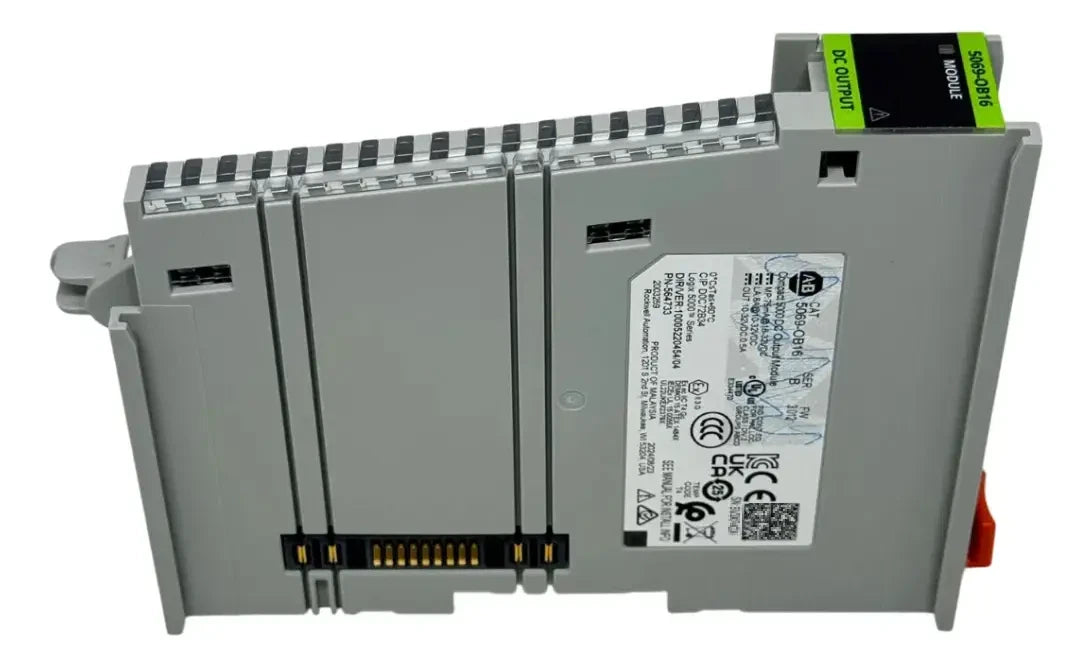

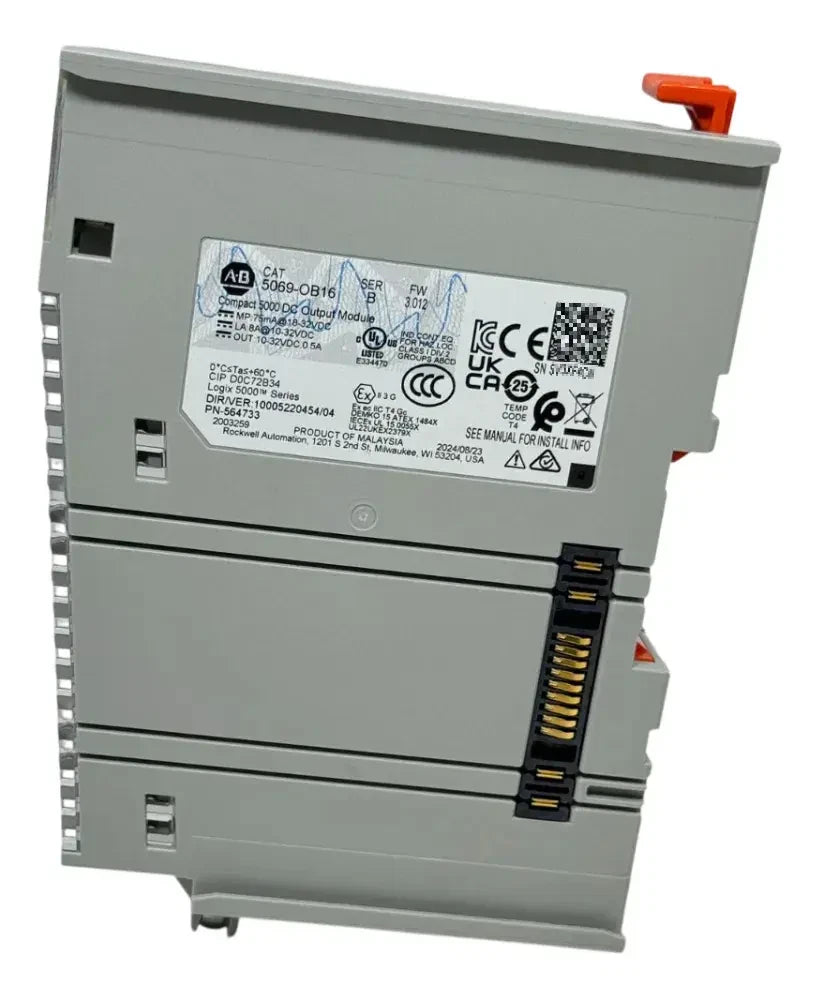

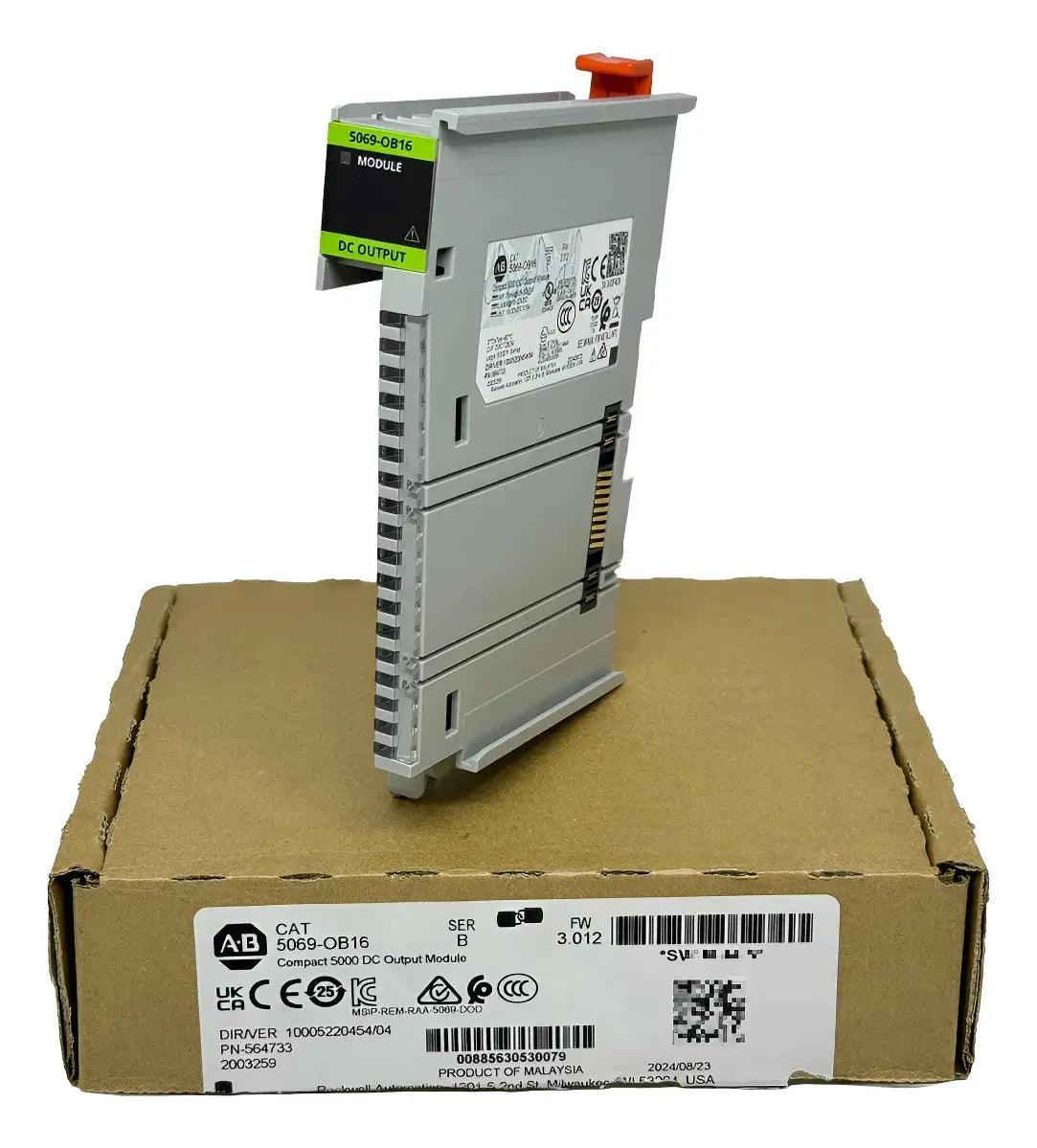

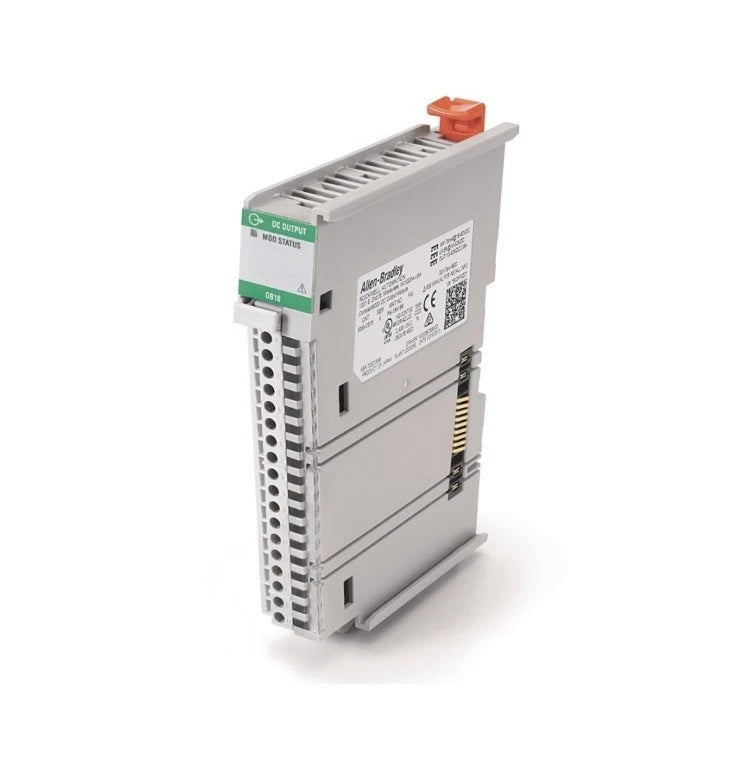

Allen-Bradley 5069-OB16 Output Module 16-Point 24V DC Source 0.5A
Available in stock (400)
Regular price
$249.82
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 5069-OB16 |
| Product Category | Output Module |
| Series | Compact 5000 |
| Product Type | DC Digital Output Module |
| Number of Outputs | 16 |
| Output Type | 24 V DC Source Output |
| On-State Voltage Range | 10–32 V DC |
| Nominal Voltage | 24 V DC |
| Output Current per Channel | 0.5 A Maximum |
| Output Current per Module | 8 A Maximum |
| Power Dissipation | 3.25 W Maximum at 16 Channels × 0.5 A |
| Thermal Dissipation | 11.09 BTU/hr Maximum |
| Isolation Voltage | 250 V Continuous, Basic Insulation Type |
| Channel Isolation | No Isolation Between Individual Output Ports |
| Status Indicators | 1 Green/Red Module Status; 16 Yellow/Red I/O Status |
| Required RTB | 5069-RTB18-SCREW or 5069-RTB18-SPRING |
Key Features
24V DC Source Output
The module is designed as a 24 V DC source output module with a documented on-state voltage range of 10 to 32 V DC.
0.5A per Channel
Each output supports up to 0.5 A, with a documented maximum aggregate output current of 8 A for the module.
Channel Status Indicators
Sixteen I/O status indicators provide individual channel status information, together with a separate module status indicator.
Removable Terminal Blocks
The module uses an 18-position removable terminal block and supports the 5069-RTB18-SCREW or 5069-RTB18-SPRING terminal kit.
Compact 5000 Platform
The 5069-OB16 is part of the Allen-Bradley Compact 5000 I/O family for supported Logix-based industrial automation architectures.
Applications
- 24 V DC field device control
- Solenoid and actuator switching
- Machine automation systems
- PLC distributed I/O systems
- Industrial control panels
- Factory automation equipment
- Indicator and signaling circuits
- DC digital load control
Purchase Information
We support online purchase of the Allen-Bradley 5069-OB16 Output Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 5069-OB16?
The 5069-OB16 is a Compact 5000 16-channel 24 V DC sourcing digital output module.
How many outputs does 5069-OB16 provide?
The module provides 16 digital output channels.
Is 5069-OB16 a sourcing output module?
Yes. Rockwell Automation identifies the 5069-OB16 as a 24 V DC source output module.
What voltage range does 5069-OB16 support?
The documented on-state voltage range is 10 to 32 V DC, with 24 V DC as the nominal value.
What is the maximum output current per channel?
The documented maximum output current is 0.5 A per channel.
What is the maximum output current for the complete module?
The documented maximum module output current is 8 A.
Are individual outputs isolated from each other?
Rockwell Automation specifies no isolation between individual output ports.
What status indicators does 5069-OB16 provide?
The module has one green/red module status indicator and 16 yellow/red I/O status indicators.
Which terminal blocks are used with 5069-OB16?
Rockwell Automation identifies the 5069-RTB18-SCREW and 5069-RTB18-SPRING terminal kits for the module.
What is the operating temperature range?
The documented operating temperature range is 0 to 60 °C, or 32 to 140 °F.
Can 5069-OB16 be considered for 24 V DC solenoids and actuators?
It can be considered when the field device operates within the module voltage and current ratings. Load characteristics, wiring and system requirements should be checked before selection.
What should be checked before ordering 5069-OB16?
Check the complete catalog number, required output count, sourcing output requirement, field voltage, load current, terminal block type and Compact 5000 system configuration.
