CompactLogix 5380 Controller
The 5069-L306ER is a CompactLogix 5380 controller designed for Logix-based machine and industrial automation control systems.

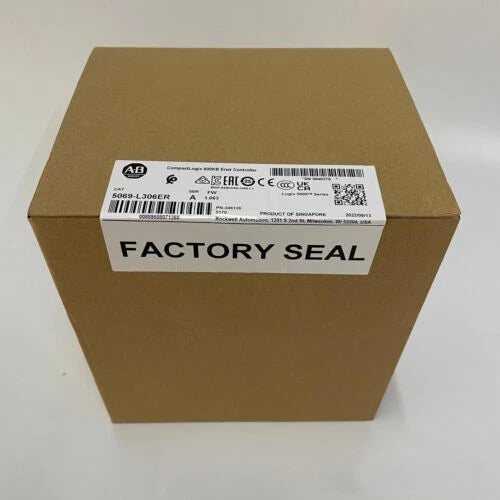

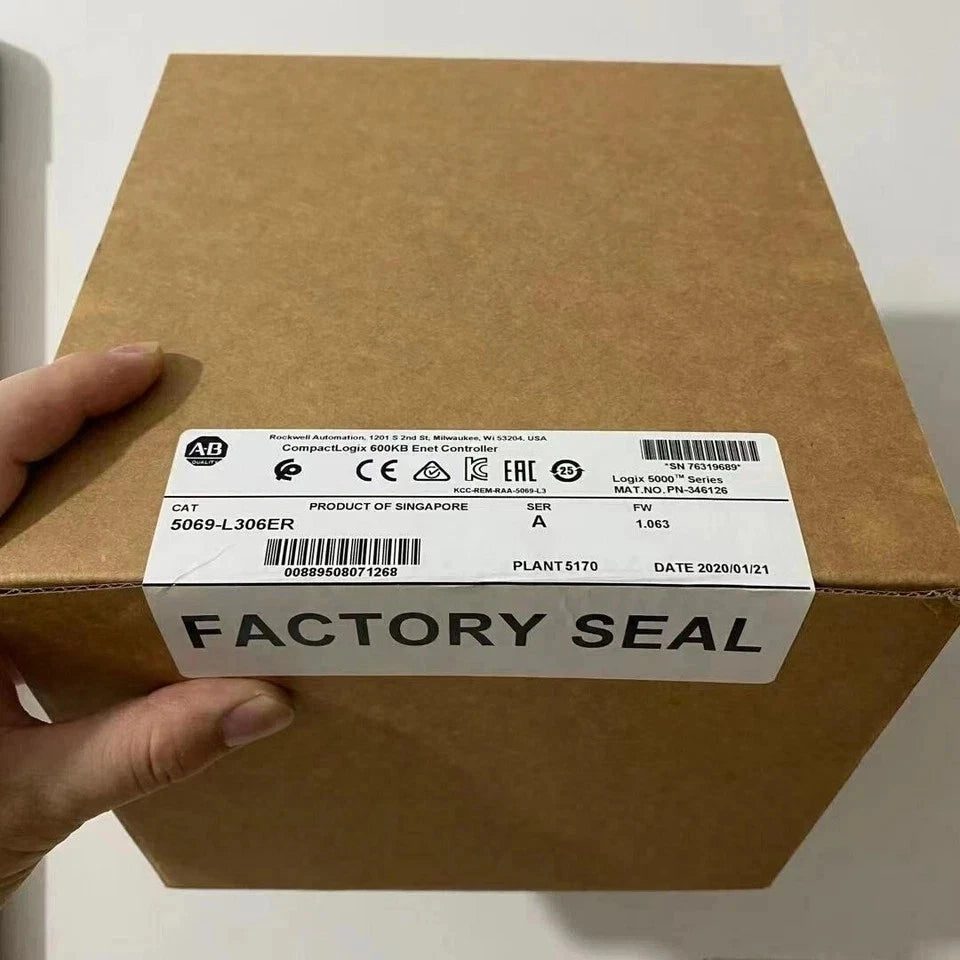

Allen-Bradley 5069-L306ER PLC Controller 600KB 8 I/O 16 EtherNet/IP Devices
Available in stock (400)
Regular price
$1,234.68
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 5069-L306ER |
| Product Category | PLC Controller |
| Controller Family | CompactLogix 5380 |
| Controller Memory | 600 KB |
| Local I/O Modules | 8 Maximum |
| EtherNet/IP Devices | 16 Maximum |
| Communication | EtherNet/IP, USB |
| Ethernet Interface | 2 × 1 Gb Ethernet Ports |
| Ethernet Configuration | DLR or Dual IP Address, Selectable |
| Processor | Quad Core |
| Display | Digit LED Display and Status LEDs |
| MOD Power | 18–32 V DC |
| Mounting | DIN Rail |
| Isolation | 300 V Continuous |
| Dimensions | 123 × 98.1 × 136.81 mm (H × W × D) |
| Required Terminal Kit | 5069-RTB64-SCREW or 5069-RTB64-SPRING |
Key Features
600 KB User Memory
The controller provides 600 KB of user memory for supported control programs, tags and application functions.
8 Local I/O Modules
The 5069-L306ER supports up to eight local I/O modules for compact machine and equipment control architectures.
16 EtherNet/IP Devices
The controller supports up to 16 EtherNet/IP devices for networked industrial automation applications.
Dual Gigabit Ethernet
Two embedded 1 Gb Ethernet ports support EtherNet/IP communication with selectable DLR or Dual IP address configurations.
USB Communication
A USB interface is provided in addition to EtherNet/IP for applicable controller configuration and maintenance functions.
Applications
- Industrial machine control
- Factory automation systems
- Packaging machinery
- Material handling equipment
- PLC-based production equipment
- EtherNet/IP automation networks
- Compact control panels
- Automated assembly equipment
Purchase Information
We support online purchase of the Allen-Bradley 5069-L306ER PLC Controller. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 5069-L306ER?
The 5069-L306ER is a CompactLogix 5380 controller with 600 KB of user memory, support for eight local I/O modules and up to 16 EtherNet/IP devices.
How much memory does 5069-L306ER provide?
The controller provides 600 KB, or 0.6 MB, of user memory.
How many local I/O modules does 5069-L306ER support?
The controller supports a maximum of eight local I/O modules.
How many EtherNet/IP devices does 5069-L306ER support?
The documented maximum is 16 EtherNet/IP devices.
How many Ethernet ports does 5069-L306ER have?
The controller has two embedded 1 Gb Ethernet ports.
Does 5069-L306ER support DLR and Dual IP?
Yes. The two Ethernet ports support selectable DLR or Dual IP address configurations.
Does 5069-L306ER include USB communication?
Yes. Rockwell Automation specifies EtherNet/IP and USB communication for this controller.
What is the operating temperature range?
The documented operating temperature range is 0 to 60 °C, or 32 to 140 °F.
How is 5069-L306ER mounted?
The controller is designed for DIN rail mounting.
Which terminal kit is used with 5069-L306ER?
Rockwell Automation specifies the 5069-RTB64-SCREW or 5069-RTB64-SPRING terminal kit, which is selected separately according to the required termination method.
Is 5069-L306ER the same as 5069-L306ERM?
No. They are separate catalog numbers. The 5069-L306ERM includes integrated motion capability, while the 5069-L306ER is specified without integrated motion.
What should be checked before ordering 5069-L306ER?
Check the complete catalog number, 600 KB memory capacity, eight-module local I/O limit, 16-device EtherNet/IP capacity, network configuration, power requirements and terminal kit requirements.
