7-Inch Widescreen Display
The 2711R-T7T provides a 7 in widescreen color TFT active matrix LCD for machine visualization and operator interaction.
1 / 10
Allen-Bradley

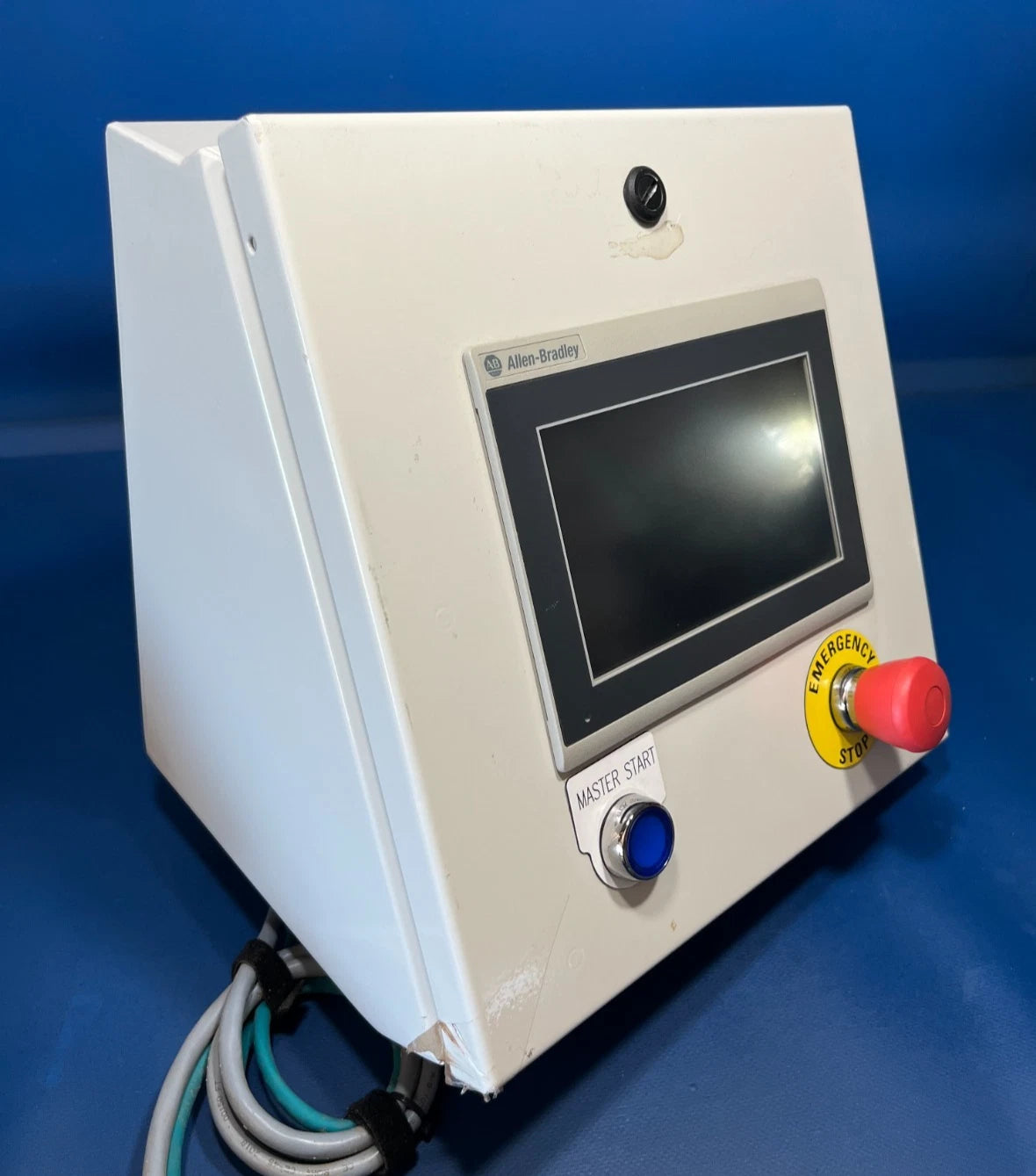

Allen-Bradley 2711R-T7T PanelView 800 HMI 7in Touch 800x480 24VDC
PRODUCT PRICE
USD
$468.70
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 2711R-T7T |
| Product Category | HMI Operator Interface |
| Product Family | PanelView 800 |
| Operator Input | Analog Touch |
| Display Size | 7 in Widescreen |
| Display Type | Color Transmissive TFT Active Matrix LCD |
| Display Resolution | 800 x 480 WVGA |
| Display Colors | 65K Colors |
| Display Area | 153.6 x 86.6 mm |
| Memory | 256 MB Flash, 256 MB DDR SDRAM |
| Input Voltage | 24 VDC |
| Maximum Power Consumption | 11 W |
| Communication Ports | Serial and Ethernet |
Key Features
Analog Touch Input
The PanelView 800 terminal uses an analog touch interface for operator input.
800 x 480 WVGA
The display provides 800 x 480 WVGA resolution with 65K colors.
24 VDC Power
The 2711R-T7T is specified for 24 VDC input power with a maximum power consumption of 11 W.
Serial and Ethernet Ports
The terminal provides both serial and Ethernet communication ports for industrial control applications.
256 MB Memory
The terminal includes 256 MB flash memory and 256 MB DDR SDRAM.
Applications
- Machine operator interface systems
- Production line visualization
- Process status monitoring
- Industrial equipment control interfaces
- Manufacturing system visualization
- Serial and Ethernet connected automation systems
- Operator command and status displays
- Panel-mounted machine interfaces
Purchase Information
We support online purchase of the Allen-Bradley 2711R-T7T HMI Operator Interface. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 2711R-T7T?
Allen-Bradley 2711R-T7T is a PanelView 800 HMI operator interface with a 7 in widescreen touch display.
What display does 2711R-T7T use?
It uses a 7 in color transmissive TFT active matrix LCD in widescreen format.
What is the resolution of 2711R-T7T?
The documented display resolution is 800 x 480 WVGA with 65K colors.
What operator input does 2711R-T7T use?
The terminal uses analog touch operator input.
What input voltage does 2711R-T7T use?
The documented input voltage is 24 VDC.
What is the maximum power consumption of 2711R-T7T?
The documented maximum power consumption is 11 W.
What memory does 2711R-T7T provide?
The terminal provides 256 MB flash memory and 256 MB DDR SDRAM.
What communication ports does 2711R-T7T provide?
The terminal provides serial and Ethernet communication ports.
Can 2711R-T7T be considered for an existing HMI system?
It can be considered after the complete model number and technical requirements have been checked against the existing system requirements.
What should be checked before ordering 2711R-T7T?
Check the complete model number, 7 in display requirement, 24 VDC electrical requirements, 800 x 480 resolution, touch input, communication ports and installation requirements before ordering.
