30 A Output Current
Rockwell Automation specifies an output current rating of 30 A for the 25B-D030N104.
1 / 7
Allen-Bradley

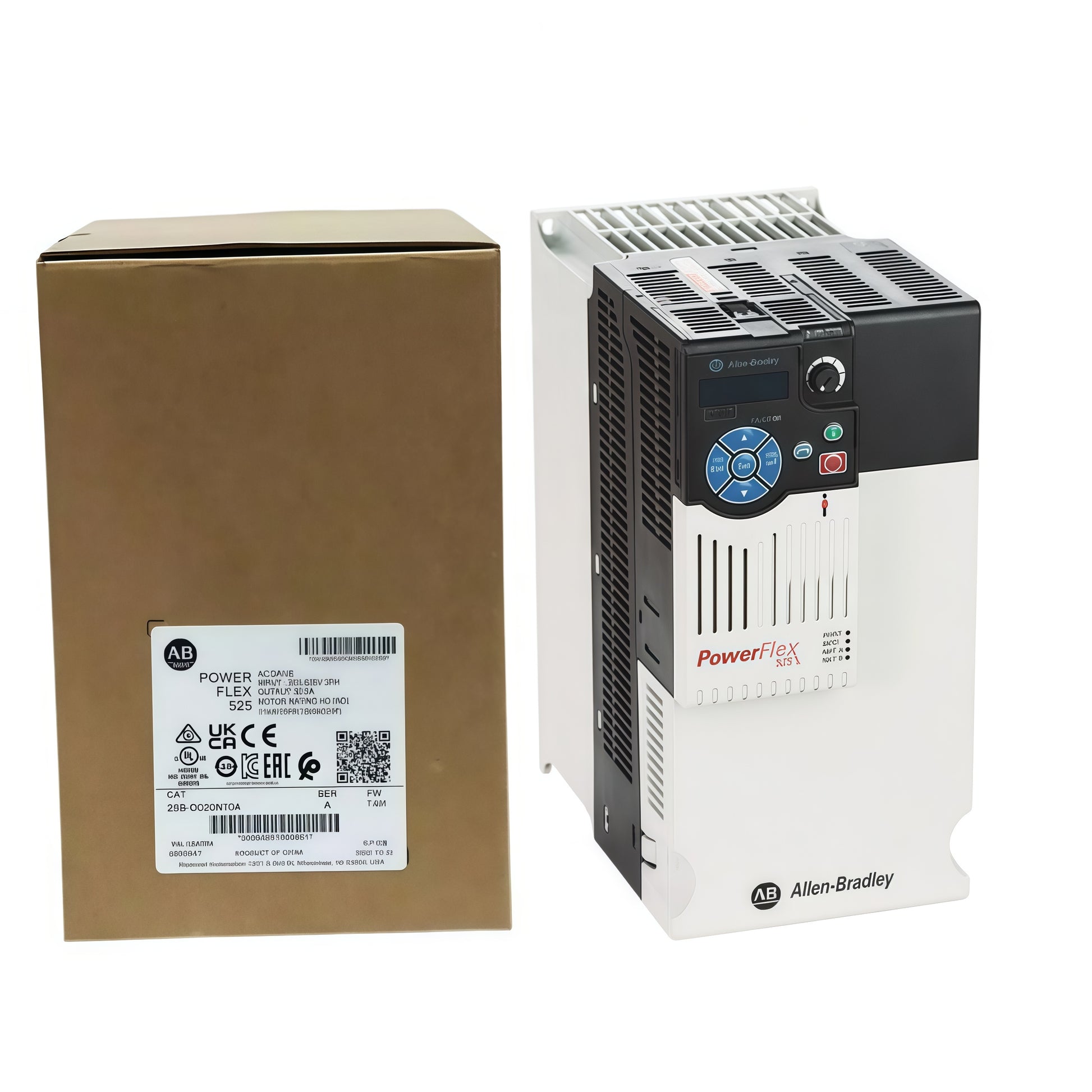

Allen-Bradley 25BD030N104 PowerFlex 525 Variable Frequency Drive
PRODUCT PRICE
USD
$908.93
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 25B-D030N104 |
| Product Category | AC Drive |
| Product Family | PowerFlex 525 |
| Input Voltage | 380-480 VAC |
| Input Phases | 3 Phase |
| Output Current | 30 A |
| Normal Duty Power | 15 kW / 20 hp |
| Heavy Duty Power | 11 kW / 15 hp |
| Frame Size | Frame D |
| Enclosure Type | IP20 NEMA / Open Type |
| EMC Filter | No Filter |
| Communication | Embedded EtherNet/IP |
| Brake IGBT | Included |
| Frequency Rating | 50-60 Hz |
| Power Factor | 0.98 |
| User Interface | Integral Keypad with Potentiometer and LED Display |
Key Features
380-480 VAC Three-Phase
The documented voltage class is 380 to 480 VAC with a three-phase input configuration.
15 kW Normal Duty
The documented normal-duty motor power rating is 15 kW or 20 hp.
11 kW Heavy Duty
The documented heavy-duty motor power rating is 11 kW or 15 hp.
Embedded EtherNet/IP
The PowerFlex 525 configuration includes embedded EtherNet/IP communication.
Brake IGBT Included
Rockwell Automation product information specifies an included brake IGBT for this catalog number.
Applications
- Industrial motor speed control
- Machine automation drive systems
- Conveyor drive applications
- Pump control systems
- Fan control systems
- Industrial process machinery
- EtherNet/IP connected drive systems
- Variable frequency motor applications
Purchase Information
We support online purchase of the Allen-Bradley 25B-D030N104 AC Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 25B-D030N104?
Allen-Bradley 25B-D030N104 is a PowerFlex 525 AC drive with embedded EtherNet/IP, a 380-480 VAC three-phase input and a 30 A output current rating.
What input voltage does 25B-D030N104 use?
Rockwell Automation specifies a 380 to 480 VAC three-phase input configuration.
What output current is specified for 25B-D030N104?
The documented output current rating is 30 A.
What is the normal-duty power rating of 25B-D030N104?
The documented normal-duty rating is 15 kW or 20 hp.
What is the heavy-duty power rating of 25B-D030N104?
The documented heavy-duty rating is 11 kW or 15 hp.
What frame size is 25B-D030N104?
Rockwell Automation specifies Frame D for this catalog number.
What enclosure type is specified?
The documented enclosure is IP20 NEMA / Open Type.
Does 25B-D030N104 include an EMC filter?
No. Rockwell Automation specifies no filter for this catalog number.
Does 25B-D030N104 support EtherNet/IP?
Yes. Embedded EtherNet/IP communication is included in the documented PowerFlex 525 configuration.
Does 25B-D030N104 include a brake IGBT?
Yes. Rockwell Automation specifies an included brake IGBT.
What frequency rating is specified?
The documented frequency rating is 50 to 60 Hz.
What should be checked before ordering 25B-D030N104?
Check the complete 25B-D030N104 catalog number, 380-480 VAC three-phase supply, 30 A output current requirement, normal-duty or heavy-duty motor power, Frame D installation, EtherNet/IP communication and filtering requirements before purchasing.
Need help confirming a model?
Send us your part number and technical requirements.
