7.5kW / 10HP Rating
The 22F-D018N104 PowerFlex 4M AC drive has a documented power rating of 7.5 kW or 10 HP.
1 / 7
Allen-Bradley

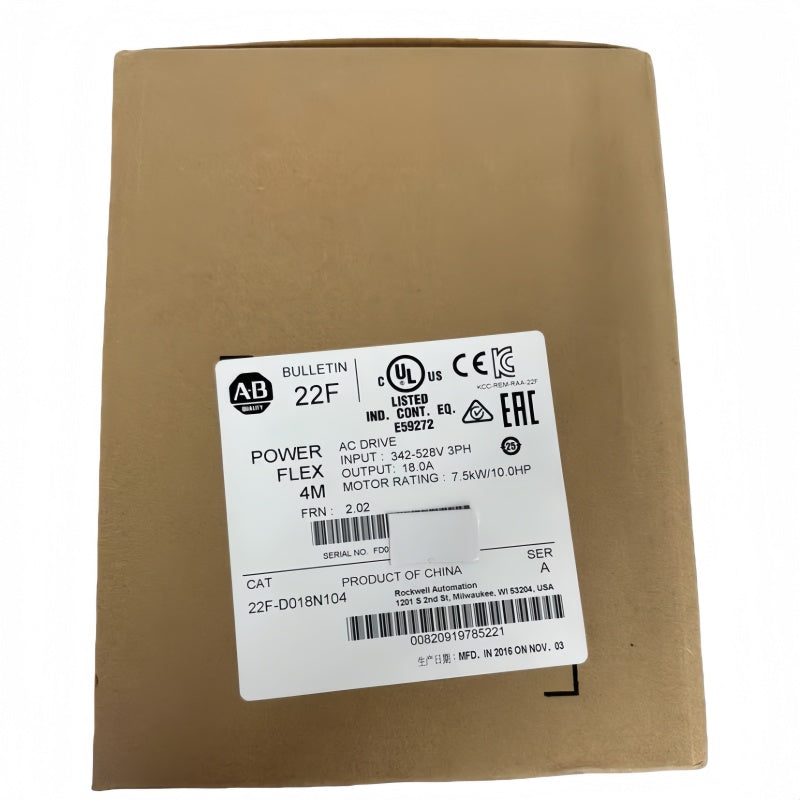

Allen-Bradley 22F-D018N104 18A Variable Frequency Drive AC Drive 7.5kW 480VAC 18A
PRODUCT PRICE
USD
$489.51
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 22F-D018N104 |
| Product Category | AC Drive |
| Product Family | PowerFlex 4M |
| Power Rating | 7.5 kW / 10 HP |
| Input Voltage | 480 VAC |
| Input Phase | 3-Phase |
| Frequency Rating | 50/60 Hz |
| Output Current | 18 A |
| Frame Size | C |
| Enclosure Style | IP20 Open |
| User Interface | LED Display, Fixed Digital Keypad |
| Internal Communication | RS485 |
| Brake IGBT | Included |
| EMC Filtering | Without CE Compliant Filter |
Key Features
480VAC 3-Phase Input
Rockwell Automation specifies a 480 VAC three-phase input configuration for this catalog number.
18A Output Current
The documented drive output-current rating is 18 A.
IP20 Open Enclosure
The drive is supplied in a documented Frame Size C IP20 open enclosure configuration.
Fixed Digital Keypad
The documented human-machine interface includes an LED display and fixed digital keypad.
RS485 Communication
The 22F-D018N104 includes an RS485 internal communication interface.
Applications
- Industrial AC motor speed control
- Conveyor drive systems
- Material handling machinery
- Packaging machinery
- Industrial machine control
- Pump motor control
- Fan motor control
- Factory automation equipment
Purchase Information
We support online purchase of the Allen-Bradley 22F-D018N104 AC Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 22F-D018N104?
Allen-Bradley 22F-D018N104 is a PowerFlex 4M AC drive with a documented 7.5 kW or 10 HP rating.
What input voltage does 22F-D018N104 use?
Rockwell Automation identifies this catalog number as a 480 VAC drive.
Is 22F-D018N104 a three-phase drive?
Yes. The documented input configuration is 480 VAC three-phase.
What is the power rating of 22F-D018N104?
The documented power rating is 7.5 kW or 10 HP.
What is the output-current rating of 22F-D018N104?
The documented output-current rating is 18 A.
What frequency rating is specified for 22F-D018N104?
Rockwell Automation specifies a frequency rating of 50/60 Hz.
What enclosure does 22F-D018N104 use?
The documented enclosure configuration is IP20 open, with Frame Size C.
What user interface does 22F-D018N104 include?
The documented interface consists of an LED display and fixed digital keypad.
What communication interface does 22F-D018N104 provide?
Rockwell Automation specifies RS485 internal communication for this catalog number.
Does 22F-D018N104 include a brake IGBT?
Yes. Rockwell Automation lists the brake IGBT as included for this catalog number.
What applications can 22F-D018N104 be considered for?
It can be considered for industrial AC motor speed-control applications after the motor rating, electrical supply, output-current and control requirements have been checked.
What should be checked before ordering 22F-D018N104?
Check the complete catalog number, 7.5 kW or 10 HP motor requirement, 480 VAC three-phase supply, 18 A output-current requirement, enclosure configuration, RS485 interface and system installation requirements before ordering.
Need help confirming a model?
Send us your part number and technical requirements.
