13 A Output Current
Rockwell Automation specifies an output current rating of 13 A for the 22F-D013N104.
1 / 7
Allen-Bradley

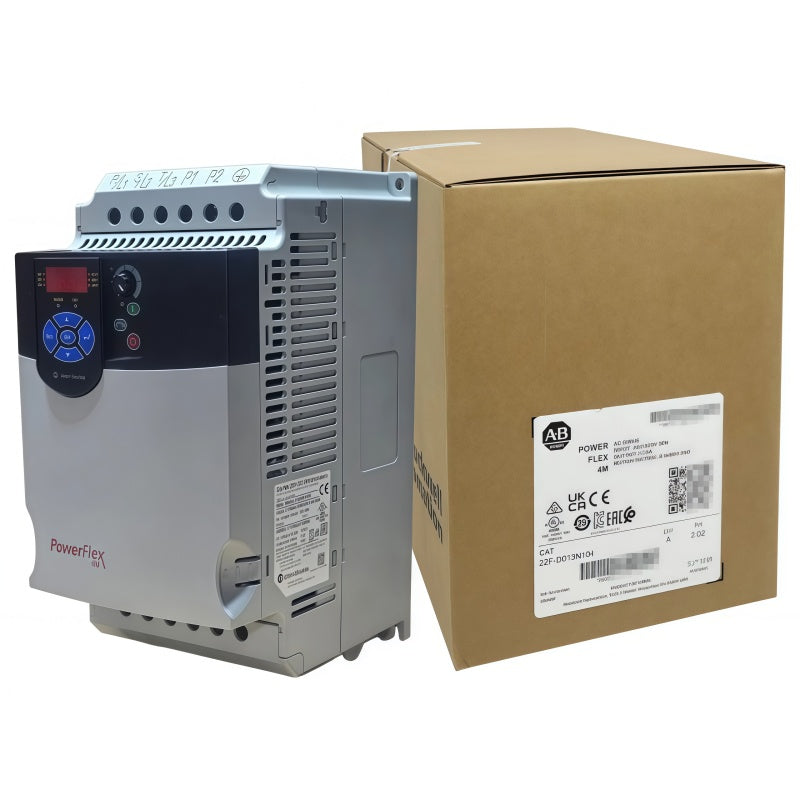

Allen-Bradley 22F-D013N104 PowerFlex 4M Variable Frequency Drive
PRODUCT PRICE
USD
$423.76
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 22F-D013N104 |
| Product Category | AC Drive |
| Product Family | PowerFlex 4M |
| Input Voltage | 480 VAC |
| Input Phases | 3 Phase |
| Output Current | 13 A |
| Motor Power | 5.5 kW |
| Motor Power | 7.5 hp |
| Frame Size | Frame Size C |
| Enclosure Style | IP20 Open |
| User Interface | LED Display, Fixed Digital Keypad |
| Communication | RS485 |
| EMC Filtering | No CE Compliant Filter |
Key Features
480 VAC Three-Phase
The documented input rating is 480 VAC with a three-phase power supply configuration.
5.5 kW Motor Rating
The PowerFlex 4M drive is documented with a motor power rating of 5.5 kW or 7.5 hp.
Frame Size C
Rockwell Automation identifies the 22F-D013N104 as a Frame Size C PowerFlex 4M drive.
Fixed Digital Keypad
The documented human interface includes an LED display and fixed digital keypad.
RS485 Communication
The documented internal communication interface for this catalog number is RS485.
Applications
- Industrial motor speed control
- Machine automation drive systems
- Conveyor speed control
- Material handling machinery
- Pump speed control
- Fan speed control
- Industrial process machinery
- Variable frequency motor applications
Purchase Information
We support online purchase of the Allen-Bradley 22F-D013N104 AC Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 22F-D013N104?
Allen-Bradley 22F-D013N104 is a PowerFlex 4M AC drive with a documented 480 VAC three-phase input, 13 A output current and 5.5 kW motor power rating.
What input voltage does 22F-D013N104 use?
Rockwell Automation specifies a 480 VAC input rating.
Does 22F-D013N104 use a three-phase input?
Yes. The documented input configuration is three phase.
What output current is specified for 22F-D013N104?
The documented output current rating is 13 A.
What motor power is specified for 22F-D013N104?
Rockwell Automation specifies a motor power rating of 5.5 kW or 7.5 hp.
What frame size is 22F-D013N104?
The documented frame size is Frame Size C.
What enclosure style is specified?
Rockwell Automation identifies the enclosure style as IP20 Open.
What user interface does 22F-D013N104 include?
The documented interface includes an LED display and fixed digital keypad.
What communication interface does 22F-D013N104 use?
The documented internal communication interface is RS485.
Does 22F-D013N104 include a CE compliant EMC filter?
No. Rockwell Automation identifies this catalog number as having no CE compliant filter.
Can 22F-D013N104 be considered for an existing motor control system?
It can be considered after the complete catalog number, 480 VAC three-phase supply, 13 A output requirement, motor power, enclosure and communication requirements have been checked against the existing system.
What should be checked before ordering 22F-D013N104?
Check the complete 22F-D013N104 catalog number, 480 VAC three-phase supply, 13 A output current requirement, 5.5 kW motor requirement, Frame Size C installation, RS485 communication and EMC requirements before purchasing.
