8 A Output Current
The 22F-B8P0N103 is specified with an output current rating of 8 A.
1 / 7
Allen-Bradley

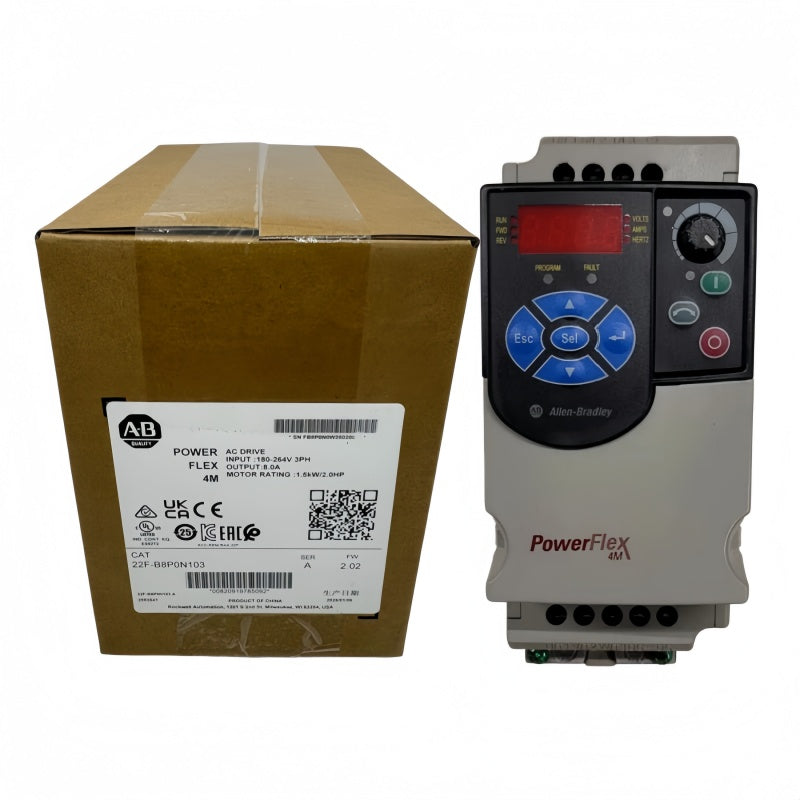

Allen-Bradley 22F-B8P0N103 PowerFlex 4M Variable Frequency Drive
PRODUCT PRICE
USD
$384.27
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 22F-B8P0N103 |
| Product Category | AC Drive |
| Product Family | PowerFlex 4M |
| Input Voltage | 240 (208) VAC |
| Input Phases | 3 Phase |
| Output Current | 8 A |
| Motor Power | 1.5 kW |
| Motor Power | 2 hp |
| Frame Size | Frame Size A |
| Enclosure Style | IP20 Open |
| User Interface | LED Display, Fixed Digital Keypad |
| EMC Filtering | No CE Compliant Filter |
| Brake Configuration | No Brake Drive |
Key Features
240 (208) VAC Input
The documented input voltage is 240 (208) VAC with a three-phase power configuration.
1.5 kW Motor Rating
The PowerFlex 4M drive is documented with a motor power rating of 1.5 kW or 2 hp.
Frame Size A
The 22F-B8P0N103 is documented as a Frame Size A PowerFlex 4M AC drive.
Fixed Digital Keypad
The documented human interface includes an LED display and fixed digital keypad.
IP20 Open Enclosure
The documented enclosure style for this catalog number is IP20 Open.
Applications
- Industrial motor speed control
- Machine automation drive systems
- Conveyor speed control
- Material handling machinery
- Pump speed control
- Fan speed control
- Industrial process machinery
- Variable frequency motor applications
Purchase Information
We support online purchase of the Allen-Bradley 22F-B8P0N103 AC Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 22F-B8P0N103?
Allen-Bradley 22F-B8P0N103 is a PowerFlex 4M AC drive with a documented 240 (208) VAC three-phase input, 8 A output current and 1.5 kW motor power rating.
What input voltage does 22F-B8P0N103 use?
The documented input voltage is 240 (208) VAC.
Does 22F-B8P0N103 use a three-phase input?
Yes. The documented input configuration is three phase.
What output current is specified for 22F-B8P0N103?
The documented output current rating is 8 A.
What motor power is specified for 22F-B8P0N103?
The documented motor power rating is 1.5 kW or 2 hp.
What frame size is 22F-B8P0N103?
The documented frame size is Frame Size A.
What enclosure style is specified?
The documented enclosure style is IP20 Open.
What user interface does 22F-B8P0N103 include?
The documented interface includes an LED display and fixed digital keypad.
Does 22F-B8P0N103 include a CE compliant EMC filter?
No. The documented configuration specifies no CE compliant filter.
Does 22F-B8P0N103 include a brake drive?
No. The documented configuration is specified as no brake drive.
Can 22F-B8P0N103 be considered for an existing motor control system?
It can be considered after the complete catalog number, 240 (208) VAC three-phase supply, 8 A output requirement, motor power, enclosure and control requirements have been checked against the existing system.
What should be checked before ordering 22F-B8P0N103?
Check the complete 22F-B8P0N103 catalog number, 240 (208) VAC three-phase supply, 8 A output current requirement, 1.5 kW motor requirement, Frame Size A installation and EMC requirements before purchasing.
