2.3 A Output Current
The 22B-D2P3N104 is specified with an output current rating of 2.3 A.

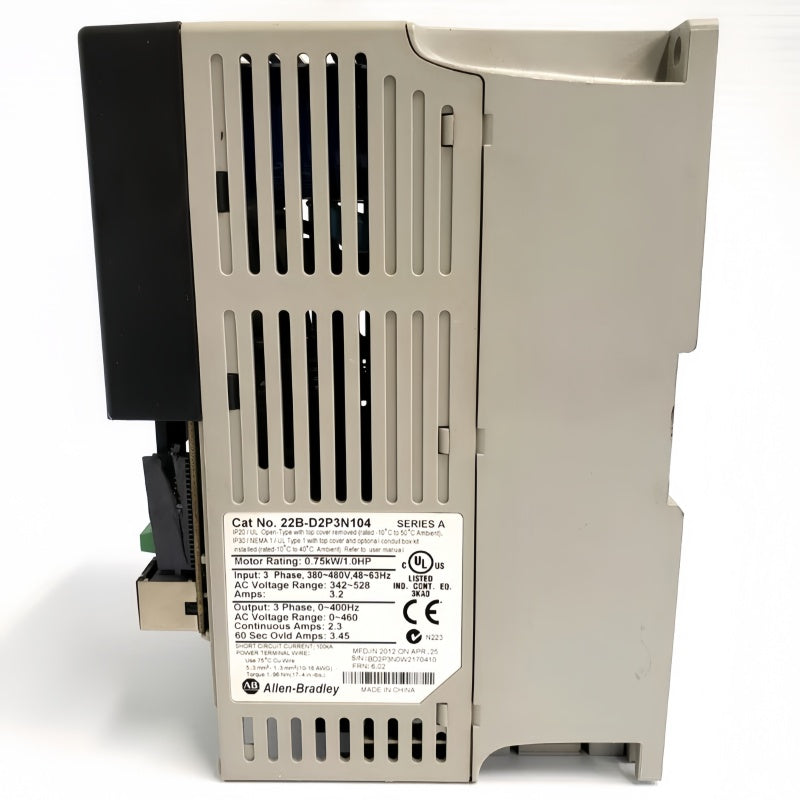

Allen-Bradley 22B-D2P3N104 2.3A PowerFlex 40 AC Drive
Available in stock (200)
Regular price
$317.56
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 22B-D2P3N104 |
| Product Category | AC Drive |
| Product Family | PowerFlex 40 |
| Input Voltage | 380-480 VAC |
| Input Phases | 3 Phase |
| Frequency Rating | 50-60 Hz |
| Output Current | 2.3 A |
| Motor Power | 0.75 kW / 1 hp |
| Frame Size | Frame Size B |
| Enclosure Style | Panel Mount - IP20, NEMA/UL Type Open |
| User Interface | LED Display, Digital Keypad |
| EMC Filtering | No CE Compliant Filter |
| Communication | RS485 |
| Power Factor | 0.98 |
Key Features
380-480 VAC Three-Phase
The documented input configuration is 380 to 480 VAC with three-phase power.
0.75 kW Motor Rating
The documented motor power rating is 0.75 kW or 1 hp.
RS485 Communication
The documented configuration includes an internal RS485 communication interface.
Frame Size B
The 22B-D2P3N104 is specified as a Frame Size B PowerFlex 40 AC drive.
Digital Keypad
The documented human interface includes an LED display and digital keypad.
Applications
- Industrial motor speed control
- Machine automation drive systems
- Conveyor speed control
- Material handling machinery
- Pump speed control
- Fan speed control
- Industrial process machinery
- Variable frequency motor applications
Purchase Information
We support online purchase of the Allen-Bradley 22B-D2P3N104 AC Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 22B-D2P3N104?
Allen-Bradley 22B-D2P3N104 is a PowerFlex 40 AC drive with a 380-480 VAC three-phase input, 2.3 A output current and 0.75 kW motor power rating.
What input voltage does 22B-D2P3N104 use?
The documented input voltage range is 380 to 480 VAC.
Does 22B-D2P3N104 use a three-phase input?
Yes. The documented input configuration is three phase.
What output current is specified for 22B-D2P3N104?
The documented output current rating is 2.3 A.
What motor power is specified for 22B-D2P3N104?
The documented motor power rating is 0.75 kW or 1 hp.
What frame size is 22B-D2P3N104?
The documented frame size is Frame Size B.
What enclosure style is specified?
The documented enclosure style is panel mount IP20, NEMA/UL Type Open.
What user interface does 22B-D2P3N104 include?
The documented human interface includes an LED display and digital keypad.
What communication interface does 22B-D2P3N104 use?
The documented internal communication interface is RS485.
Does 22B-D2P3N104 include a CE compliant EMC filter?
No. The documented configuration specifies no CE compliant filter.
What frequency rating is specified for 22B-D2P3N104?
The documented frequency rating is 50 to 60 Hz.
What should be checked before ordering 22B-D2P3N104?
Check the complete 22B-D2P3N104 catalog number, 380-480 VAC three-phase supply, 2.3 A output current requirement, 0.75 kW motor requirement, Frame Size B installation, enclosure, RS485 communication and filtering requirements before purchasing.
