Technical specifications, features, applications and purchasing information.
| Brand | Allen-Bradley |
| Model | 22B-D010N104 |
| Product Category | Variable Frequency Drive (VFD) |
| Manufacturer | Rockwell Automation |
| Product Family | PowerFlex 40 |
| Drive Type | Adjustable Frequency AC Drive |
| Rated Motor Power | 4 kW |
| Rated Motor Horsepower | 5 HP |
| Nominal Input Voltage | 380 to 480 VAC |
| Permissible Input Voltage Range | 342 to 528 VAC |
| Input Phase | 3-Phase |
| Input Frequency | 50/60 Hz |
| Rated Output Current | 10.5 A According to PowerFlex 40 User Manual |
| Nominal Output Voltage | 0 to 460 VAC, 3-Phase, According to Manufacturer Drive Rating |
| Output Frequency | 0 to 400 Hz, Programmable |
| Input Current Rating | 13.0 A |
| Input Apparent Power | 10.3 kVA |
| Typical Efficiency | 97.5% |
| Power Factor | 0.98 |
| Control Methods | Sensorless Vector Control and Volts-per-Hertz Control |
| Preset Speed Capability | 8 Programmable Preset Speeds |
| Integrated Control Interface | LED Display and Digital Keypad |
| Communication Interface | Integrated RS485 (DSI) |
| Supported Serial Protocol | Modbus RTU Through RS485 (DSI), Subject to Configuration |
| Analog Voltage Input | 0 to 10 VDC |
| Analog Current Input | 4 to 20 mA |
| External Speed Reference | Compatible Analog Input or External Potentiometer |
| Digital Control Inputs | 24 VDC Logic, Source or Sink Configuration |
| Programmable Control Output | Relay Output, Form C |
| Optocoupler Outputs | 2, 30 VDC 50 mA Maximum |
| Analog Output Resolution | 10 Bit |
| Analog Output Options | 0 to 10 VDC or 4 to 20 mA |
| Dynamic Braking | Internal Brake IGBT; External Resistor Selection Required When Applicable |
| Motor Overload Protection | Electronic I²t Overload Protection, Class 10 |
| Current Limit Protection | 200% Hardware Limit; 300% Instantaneous Fault |
| Overvoltage Protection | DC Bus Overvoltage Fault Monitoring |
| Undervoltage Protection | DC Bus Undervoltage Fault Monitoring |
| Control Ride-Through | 0.5 Seconds Minimum; 2 Seconds Typical |
| Faultless Power Ride-Through | 100 ms |
| Recommended Branch Fuse | 20 A, Subject to Manufacturer Protection Requirements |
| Recommended Fuse Classes | UL Class J, CC, T or Type BS88, Appropriate Voltage Rating |
| Mounting Configuration | Panel Mount |
| Enclosure Rating | IP20 |
| NEMA/UL Enclosure Type | Type Open |
| Frame Size | B |
| Approximate Height | 180 mm |
| Approximate Width | 100 mm |
| Approximate Depth | 136 mm |
| Approximate Weight | 2.2 kg |
| EMC Filter Configuration | No Integrated CE-Compliant EMC Filter |
| Drive Catalog Prefix | 22B |
| Voltage Code | D, 480 V Class Three-Phase |
| Enclosure Code | N, Panel Mount IP20 |
| Human Interface Code | 1, Fixed Keypad |
| Emission Filter Code | 0, Not Filtered |
| Brake Configuration Code | 4, Standard Brake IGBT |
| UPC | 820919078576 |
| Manufacturer Lifecycle Status | Discontinued |
| Manufacturer Discontinuation Date | June 30, 2025 |
| Manufacturer Replacement Reference | 25B-D010N104, Engineering Replacement; Compatibility Verification Required |
| Manufacturer User Manual | Rockwell Automation Publication 22B-UM001J-EN-E, September 2025 |
| Manufacturer Product Reference | https://www.rockwellautomation.com/en-us/products/details.22B-D010N104.html |

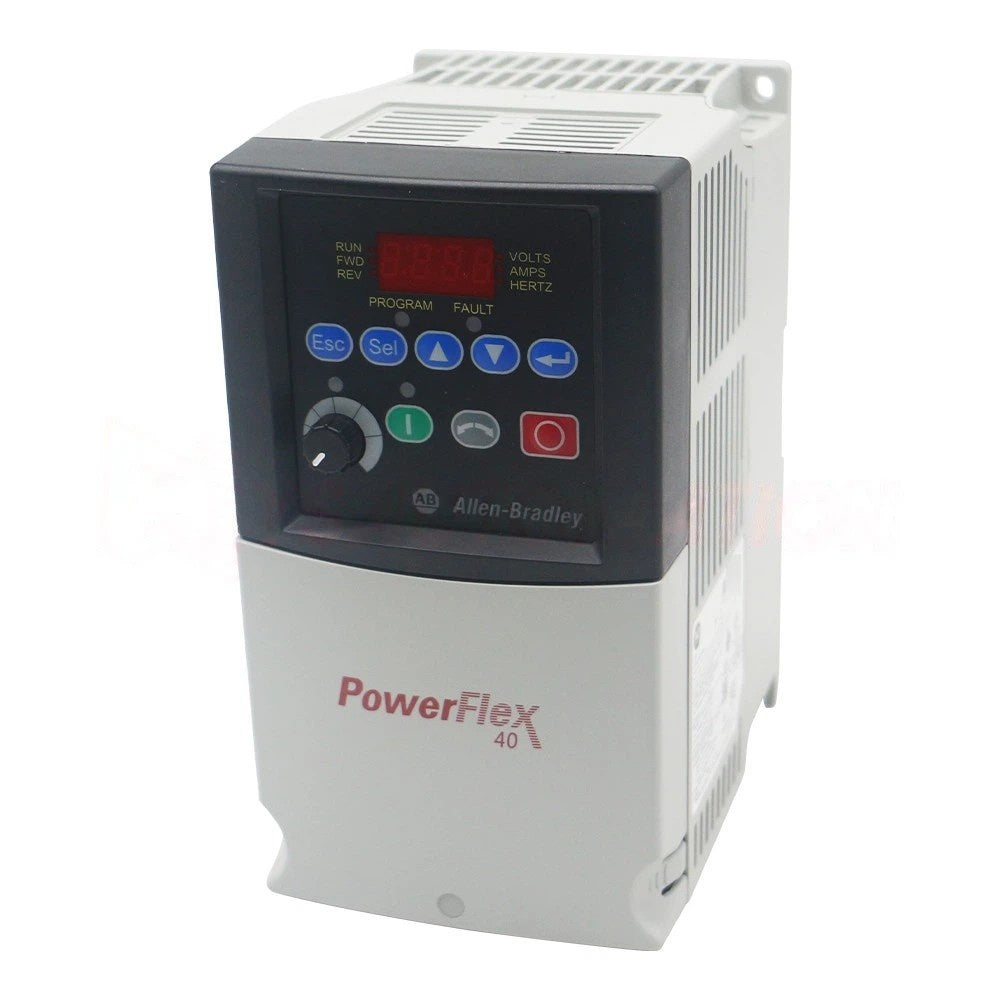

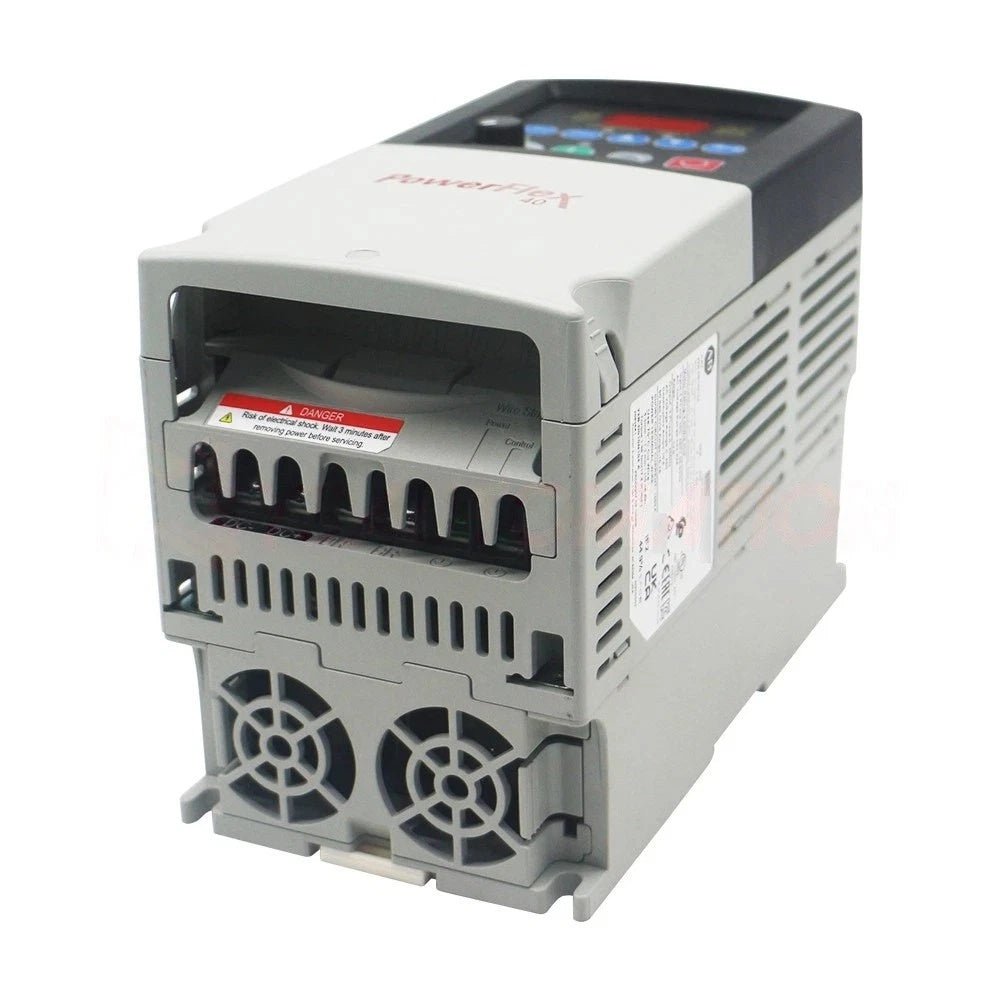

The Allen-Bradley 22B-D010N104 is a PowerFlex 40 variable frequency drive designed for compatible three-phase AC motors. It supports 380–480 VAC nominal three-phase input and a 4 kW (5 HP) motor rating, with 10.5 A rated output current according to the PowerFlex 40 user manual.
The PowerFlex 40 drive supports sensorless vector control and volts-per-hertz operation. These control methods allow drive performance to be configured for applications such as conveyors, pumps and other industrial machinery with suitable motor characteristics.
The built-in digital keypad and LED display provide local access to drive parameters, operational information and diagnostic fault codes. This supports motor setup, maintenance and troubleshooting without requiring a separate external operator panel.
An integrated RS485 DSI interface supports compatible industrial control communications, including Modbus RTU when properly configured. The drive can be incorporated into suitable PLC-controlled systems without assuming Ethernet or EtherNet/IP is built in.
The drive supports programmable speed references, eight preset speeds, digital control inputs and analog signal interfaces. Its configurable controls can be adapted to the requirements of compatible machine operating sequences and motor control circuits.
The panel-mounted Frame B configuration uses an IP20, NEMA/UL Type Open enclosure with an approximate 180 × 100 × 136 mm footprint. It includes an internal dynamic braking IGBT and requires appropriate cabinet protection, ventilation and installation clearances.
We support online purchase of the Allen-Bradley 22B-D010N104 Variable Frequency Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
What is the Allen-Bradley 22B-D010N104?
It is a Rockwell Automation PowerFlex 40 variable frequency drive rated for a 4 kW (5 HP) three-phase AC motor, with 380–480 VAC input, integrated RS485 communication and an IP20 Frame B enclosure.
What is the motor power rating?
The manufacturer specifies a rated motor power of 4 kW, equivalent to 5 HP.
What input voltage does the drive require?
The drive requires a nominal 380–480 VAC three-phase supply at 50/60 Hz. The PowerFlex 40 manual specifies an operating input voltage range of 342–528 VAC for this drive class.
What is the rated output current?
The manufacturer's PowerFlex 40 user manual lists 10.5 A for 22B-D010N104. Some abbreviated product listings round the description to 10 A, so the installation and motor selection should use the applicable official ratings and nameplate.
Is this a single-phase or three-phase drive?
The 22B-D010N104 is a three-phase input drive intended for suitable three-phase AC motors. It should not be treated as a single-phase input model.
What control methods are supported?
The PowerFlex 40 series supports sensorless vector control and volts-per-hertz control. The appropriate method and motor parameters must be configured for the application.
Does 22B-D010N104 support RS485 communication?
Yes. It includes an RS485 DSI interface supporting compatible drive communications and Modbus RTU when configured in accordance with the Rockwell Automation user manual.
Does the drive have a built-in keypad?
Yes. It includes an integrated LED display and digital keypad for parameter programming, monitoring and fault diagnostics.
What is the enclosure protection rating?
The drive is rated IP20, NEMA/UL Type Open. It is intended for installation in an appropriate industrial control cabinet and is not a standalone waterproof drive.
Does this model include an EMC filter?
No. The 22B-D010N104 configuration is specified without an integrated CE-compliant EMC filter. An external filtering solution may be required depending on applicable installation and emissions requirements.
Does the drive support dynamic braking?
Yes. The configuration includes an internal brake IGBT. A suitably selected external dynamic braking resistor and appropriate protection are required where the application calls for resistor-based braking.
What is the difference between 22B-D010N104 and 22B-D010F104?
Both are PowerFlex 40 drives with comparable 480 V-class and 4 kW ratings. The N104 version is a panel-mounted IP20 configuration, while the F104 is a flange-mount configuration. Verify installation dimensions and cooling requirements before substituting one for the other.
Is Allen-Bradley 22B-D010N104 discontinued?
Yes. Rockwell Automation identifies June 30, 2025 as the discontinuation date and lists 25B-D010N104 as an engineering replacement. The new model should not be assumed to be a direct installation replacement without reviewing wiring, parameters, dimensions and communication compatibility.
Can the 25B-D010N104 replace the 22B-D010N104?
Rockwell Automation identifies the PowerFlex 525 model 25B-D010N104 as an engineering replacement. A qualified engineer should compare motor ratings, control wiring, parameter mapping, protection settings, mechanical mounting and network communication before migration.
What should be checked before ordering?
Confirm the complete catalog number 22B-D010N104, 380–480 VAC three-phase input, 4 kW (5 HP) motor rating, 10.5 A manual-rated output current, Frame B mounting, IP20 enclosure, RS485 DSI interface, fixed LED keypad, unfiltered EMC configuration, braking requirements and compatibility with the existing motor and control system.
Send us your part number and technical requirements.
Explore more industrial components from our catalog.
