Technical specifications, features, applications and purchasing information.
| Brand | Allen-Bradley |
| Model | 22A-D8P7N104 |
| Product Category | Variable Frequency Drive (VFD) |
| Manufacturer | Rockwell Automation |
| Product Family | PowerFlex 4 |
| Drive Type | Adjustable Frequency AC Drive |
| Rated Motor Power | 3.7 kW |
| Rated Motor Horsepower | 5 HP |
| Nominal Input Voltage | 380 to 480 VAC, 480 V Class |
| Permissible Input Voltage Range | 340 to 528 VAC, According to PowerFlex 4 Manual |
| Input Phase | 3-Phase |
| Input Frequency | 50/60 Hz |
| Rated Output Current | 8.7 A |
| Overall Width | 100 mm |
| Overall Depth | 136 mm |
| Approximate Shipping Weight | 2.2 kg |

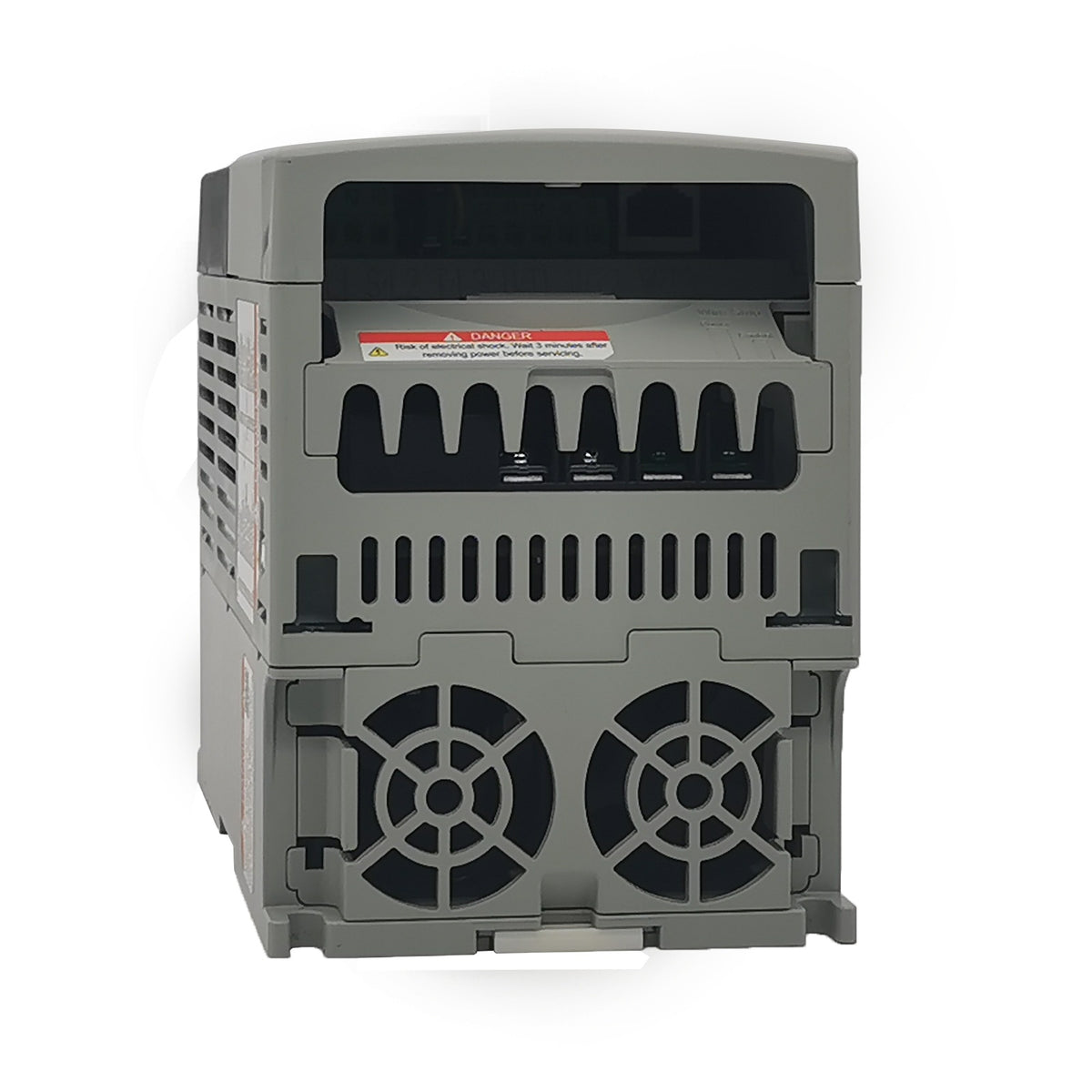

| Cooling Method | Fan Cooling |

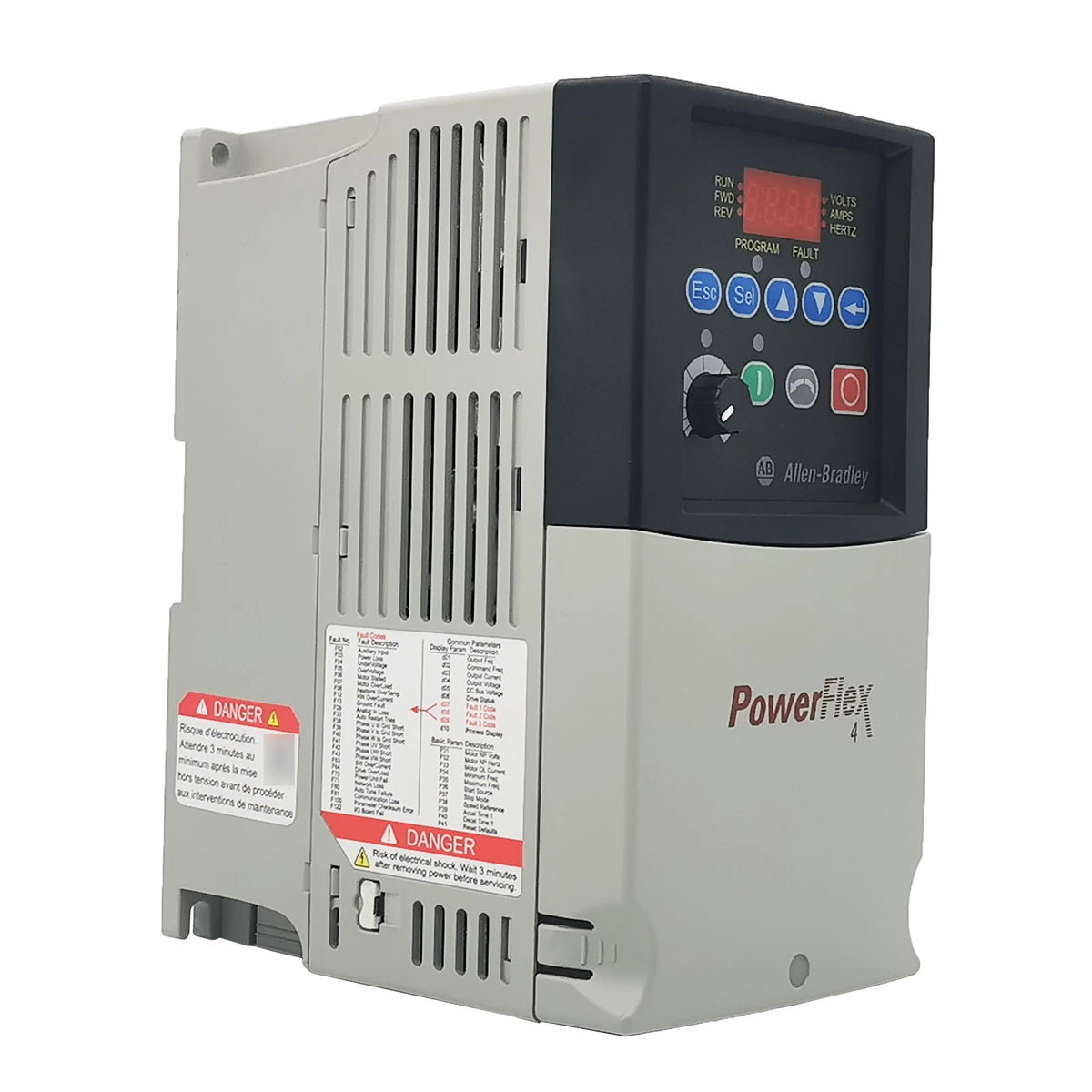

The Allen-Bradley 22A-D8P7N104 is a PowerFlex 4 AC variable frequency drive rated for 3.7 kW (5 HP) motor applications. It uses a 380–480 VAC three-phase power supply and delivers a rated output current of 8.7 A for compatible industrial AC motors.
The PowerFlex 4 supports adjustable volts-per-hertz motor control with slip compensation. Its programmable output frequency range of 0 to 240 Hz supports applications requiring controlled acceleration, deceleration and variable motor speed.
A built-in LED display and fixed digital keypad allow technicians to configure operating parameters, view drive status and access fault information. This supports setup and troubleshooting of existing PowerFlex 4 motor control systems.
The drive incorporates an RS485 DSI communication interface. Supported Modbus RTU functions allow connection to appropriately configured controllers and industrial monitoring equipment without assuming built-in Ethernet connectivity.
The drive includes electronic Class 10 motor overload protection, overcurrent monitoring and an internal dynamic braking IGBT. Configurable stopping modes include ramp, coast, DC braking and S-curve operation. External braking accessories must be selected according to application requirements.
The panel-mounted Frame B enclosure measures approximately 180 × 100 × 136 mm and has an IP20, NEMA/UL Type Open protection rating. It is designed for installation inside an appropriately ventilated industrial control cabinet.
We support online purchase of the Allen-Bradley 22A-D8P7N104 Variable Frequency Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
What is the Allen-Bradley 22A-D8P7N104?
It is a Rockwell Automation PowerFlex 4 variable frequency drive with a 3.7 kW (5 HP) motor rating, 480 V-class three-phase input, 8.7 A output current and integrated RS485 communication.
What is the motor power rating?
The manufacturer specifies a 3.7 kW or 5 HP motor rating. The selected motor must also comply with the drive's rated output current and application load requirements.
What input voltage does this drive require?
It is designed for a nominal 380–480 VAC three-phase supply at 50/60 Hz. The manufacturer's detailed rating table lists an operating input range of 340 to 528 VAC.
What is the rated output current?
The 22A-D8P7N104 has a rated output current of 8.7 A. The manufacturer also lists an input current of 9.0 A under specified operating conditions.
Is this a single-phase or three-phase drive?
The 22A-D8P7N104 is a three-phase drive designed for a nominal 380 to 480 VAC three-phase power supply.
