480VAC Three-Phase Input
The 22A-D4P0N104 is specified for a 480 VAC three-phase input supply.
1 / 7
Allen-Bradley

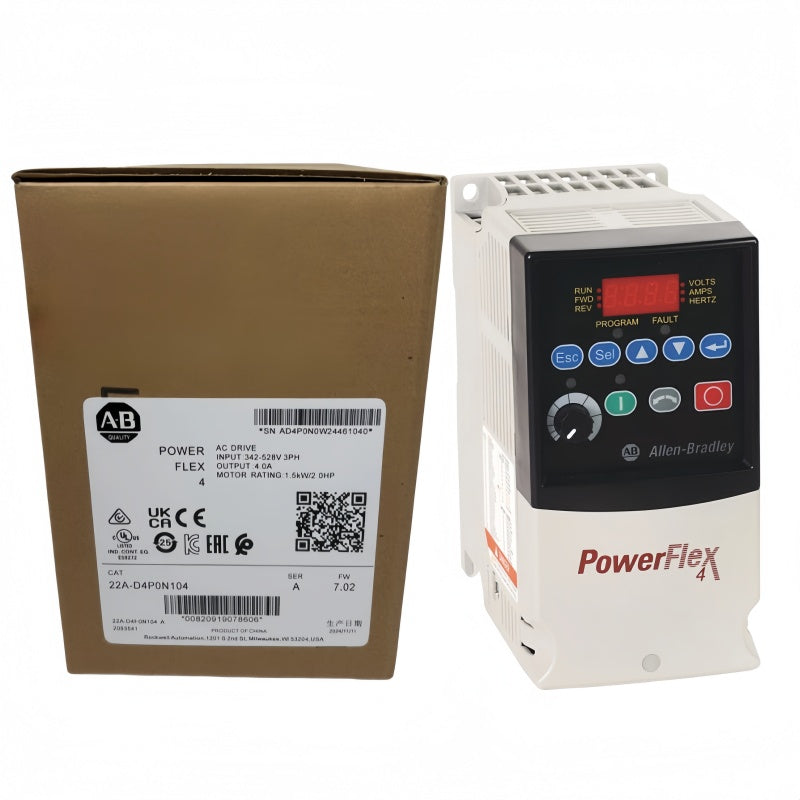

Allen-Bradley 22A-D4P0N104 PowerFlex 4 AC Drive 480VAC 4A 1.5kW
PRODUCT PRICE
USD
$448.58
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 22A-D4P0N104 |
| Product Category | AC Drive |
| Product Family | PowerFlex 4 |
| Input Voltage | 480 VAC, 3-Phase |
| Output Current | 4 A |
| Power Rating | 1.5 kW / 2 HP |
| Frame Size | Frame A |
| Enclosure Style | Panel Mount, IP20, NEMA/UL Type Open |
| User Interface | LED Display, Fixed Digital Keypad |
| Communication Interface | RS485 |
| EMC Filter | No CE Compliant Filter |
Key Features
4A Output Current
The documented output current rating for this PowerFlex 4 drive is 4 A.
1.5kW / 2HP Rating
The drive is rated at 1.5 kW, corresponding to 2 HP in the published product information.
Integrated Keypad and LED Display
The user interface includes an integral fixed digital keypad and LED display for drive setup and operation.
RS485 Communication
An RS485 communication interface is included in the documented configuration of the 22A-D4P0N104.
IP20 Panel-Mount Enclosure
The drive uses a Frame A panel-mount enclosure identified as IP20 and NEMA/UL Type Open.
Applications
- Industrial motor speed control
- Conveyor drive systems
- Pump control applications
- Fan control applications
- Machine automation systems
- Material handling equipment
- Industrial process equipment
- Motor control panel projects
Purchase Information
We support online purchase of the Allen-Bradley 22A-D4P0N104 AC Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 22A-D4P0N104?
Allen-Bradley 22A-D4P0N104 is a PowerFlex 4 AC drive rated at 1.5 kW / 2 HP with a 480 VAC three-phase input and 4 A output current.
What product family does 22A-D4P0N104 belong to?
The 22A-D4P0N104 belongs to the Allen-Bradley PowerFlex 4 AC drive family.
What input voltage does 22A-D4P0N104 use?
The documented input supply is 480 VAC, three-phase.
What is the output current rating of 22A-D4P0N104?
The documented output current rating is 4 A.
What is the power rating of 22A-D4P0N104?
The drive is rated at 1.5 kW / 2 HP.
What enclosure type does 22A-D4P0N104 use?
The documented configuration uses a Frame A panel-mount enclosure rated IP20 and NEMA/UL Type Open.
What user interface is included?
The drive includes an LED display and fixed digital keypad.
What communication interface does 22A-D4P0N104 provide?
The documented communication interface is RS485.
Does 22A-D4P0N104 include a CE compliant EMC filter?
The documented configuration specifies no CE compliant filter.
What applications can 22A-D4P0N104 be considered for?
It can be considered for motor speed control, conveyors, pumps, fans and industrial machinery after electrical and application requirements have been checked.
What should be verified before using 22A-D4P0N104 in an existing system?
The input voltage, phase configuration, motor rating, output current requirement, enclosure, communication requirements and installation documentation should be checked against the existing system.
What should be checked before ordering 22A-D4P0N104?
Check the complete catalog number, 480 VAC three-phase supply, 4 A output requirement, 1.5 kW / 2 HP rating, Frame A enclosure and RS485 communication requirements before purchasing.
