Kinetix 5300 Platform
The 2198-C4015-ERS is a Kinetix 5300 single-axis servo drive for industrial motion-control applications.
1 / 11
Allen-Bradley

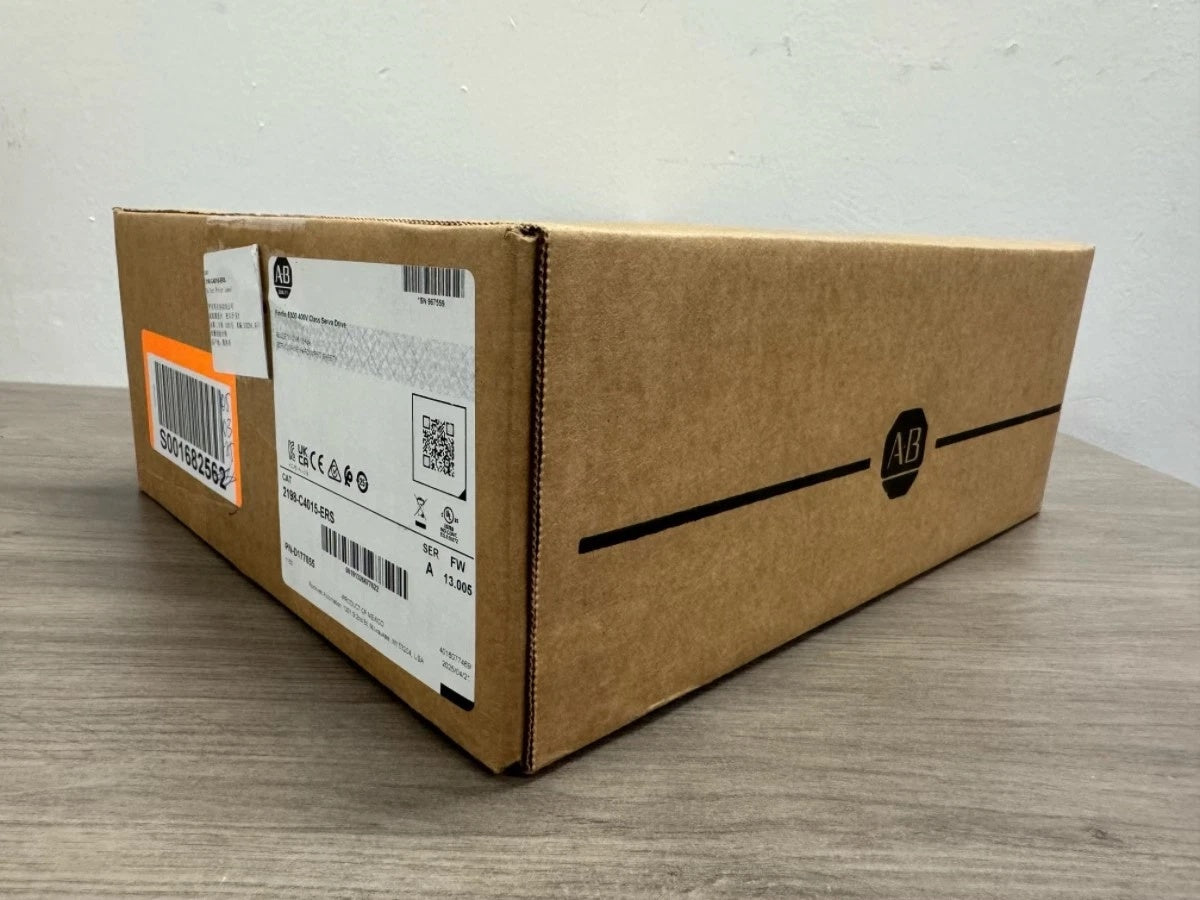

Allen-Bradley 2198-C4015-ERS Kinetix 5300 Servo Drive 480V 2.78kW 5.2A
PRODUCT PRICE
USD
$929.41
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 2198-C4015-ERS |
| Product Category | Servo Drive |
| Series | Kinetix 5300 |
| Voltage Class | 400 V Class |
| Input Voltage | 480 V AC, Three Phase |
| Continuous Output Power | 2.78 kW at 480 V AC |
| Continuous Output Current | 5.2 A |
| Peak Output Current | 18 A |
| Frame Size | Frame 2 |
| Communication | EtherNet/IP |
| Safety Function | Safe Torque Off |
| UPC | 191326677622 |
Key Features
400 V Class
This catalog number belongs to the Kinetix 5300 400 V class and is documented at 2.78 kW output power with 480 V AC three-phase input.
5.2 A Continuous Output
The drive provides a documented continuous output current of 5.2 A.
18 A Peak Output
The documented peak output current is 18 A for motion applications requiring short-duration peak current capability.
EtherNet/IP Communication
The Kinetix 5300 platform uses EtherNet/IP communication for integration into supported industrial motion-control architectures.
Safe Torque Off
The 2198-C4015-ERS configuration incorporates the Safe Torque Off safety function.
Applications
- Single-axis servo motion control
- Packaging machinery
- Material handling equipment
- Assembly and production machinery
- Positioning systems
- Industrial machine automation
- EtherNet/IP motion-control systems
- Automated manufacturing equipment
Purchase Information
We support online purchase of the Allen-Bradley 2198-C4015-ERS Servo Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 2198-C4015-ERS?
It is a Kinetix 5300 single-axis servo drive for industrial motion-control applications.
What voltage class is 2198-C4015-ERS?
It belongs to the Kinetix 5300 400 V class.
What input configuration is documented?
The documented product configuration uses 480 V AC three-phase input.
What is the output power at 480 V AC?
The documented continuous output power is 2.78 kW at 480 V AC three-phase input.
What is the continuous output current?
The documented continuous output current is 5.2 A.
What is the peak output current?
The documented peak output current is 18 A.
What frame size does this servo drive use?
The 2198-C4015-ERS is a Frame 2 Kinetix 5300 servo drive.
What network does the Kinetix 5300 platform use?
The Kinetix 5300 is a single-axis EtherNet/IP servo drive platform.
Does 2198-C4015-ERS provide a safety function?
Yes. The catalog configuration includes Safe Torque Off.
What applications is this servo drive used for?
Typical applications include positioning, packaging, assembly, material handling and other single-axis industrial motion-control systems.
Can 2198-C4015-ERS replace another Kinetix servo drive?
It can be considered after the complete model number and technical requirements have been checked. Input power, output current, motor requirements, feedback, communication, safety and installation requirements should be verified against existing system requirements.
What should be checked before ordering?
The complete catalog number, 400 V class requirement, three-phase input, continuous and peak output ratings, motor and feedback requirements, EtherNet/IP architecture, Safe Torque Off requirements and installation conditions should be checked before ordering.
Need help confirming a model?
Send us your part number and technical requirements.
