PowerFlex 753 Platform
The 20F1ANC140JA0NNNNN is a PowerFlex 753 AC drive with embedded I/O for industrial motor control applications.

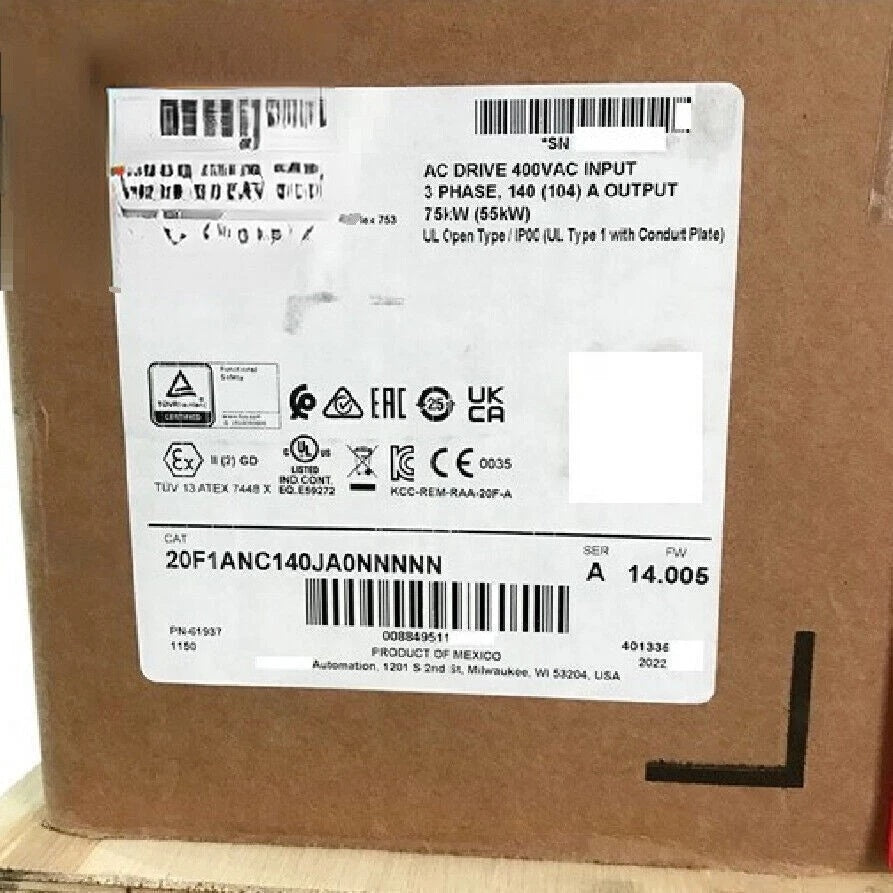

Allen-Bradley 20F1ANC140JA0NNNNN PowerFlex 753 AC Drive 400V 140A 75kW
Available in stock (400)
Regular price
$4,529.63
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 20F1ANC140JA0NNNNN |
| Product Category | AC Drive |
| Series | PowerFlex 753 |
| Embedded I/O | Yes |
| Voltage Class | 400 V AC, 3 Phase |
| Output Current | 140 A |
| Normal Duty Power | 75 kW |
| Heavy Duty Power | 55 kW |
| Frame Size | Frame 6 |
| Protection | Standard Protection |
| Cooling | Forced Air |
| Enclosure | IP20/IP00, NEMA/UL Open Type |
| Input Type | AC Input with Precharge, no DC Terminals |
| EMC Filtering | Filtered, CM jumper installed |
| Dynamic Braking | DB Transistor |
| HIM | Blank, no HIM |
| UPC | 884951166431 |
Key Features
400 V Three-Phase
This configuration is specified for the 400 V AC three-phase voltage class.
140 A Output
The drive has a documented 140 A output current rating for the normal-duty configuration.
75 kW Normal Duty
The documented ratings are 75 kW normal duty and 55 kW heavy duty.
Frame 6 Construction
The drive uses a Frame 6 configuration with standard protection, forced-air cooling and an IP20/IP00 open-type enclosure.
Dynamic Braking Transistor
The catalog configuration includes a DB transistor and EMC filtering with the CM jumper installed.
Applications
- Industrial AC motor speed control
- Conveyor and material handling systems
- Pump and fan drive applications
- Packaging and processing machinery
- Production equipment
- Industrial machine automation
- Variable-speed motor systems
- General industrial drive applications
Purchase Information
We support online purchase of the Allen-Bradley 20F1ANC140JA0NNNNN AC Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 20F1ANC140JA0NNNNN?
It is a PowerFlex 753 AC drive with embedded I/O for industrial motor control applications.
What is the voltage class?
The documented voltage class is 400 V AC, three phase.
What is the output current rating?
The documented normal-duty output current rating is 140 A.
What is the normal-duty power rating?
The documented normal-duty power rating is 75 kW.
What is the heavy-duty power rating?
The documented heavy-duty power rating is 55 kW.
What frame size does this drive use?
The 20F1ANC140JA0NNNNN uses a Frame 6 configuration.
What enclosure configuration is specified?
The documented enclosure is IP20/IP00, NEMA/UL Open Type.
What input configuration does it use?
It uses AC input with precharge and no DC terminals.
Does this configuration include dynamic braking hardware?
The documented catalog configuration includes a DB transistor.
Does it include a HIM?
No. The catalog configuration is specified as blank with no HIM.
Can this drive replace another PowerFlex drive?
It can be considered after the complete model number and technical requirements have been checked. Voltage, current, duty rating, frame size, enclosure, input configuration and option requirements should be verified against existing system requirements.
What should be checked before ordering?
The complete catalog number, 400 V three-phase supply, 140 A output requirement, 75 kW normal-duty or 55 kW heavy-duty rating, Frame 6 construction, enclosure and required drive options should be checked before ordering.
