PowerFlex 753 Platform

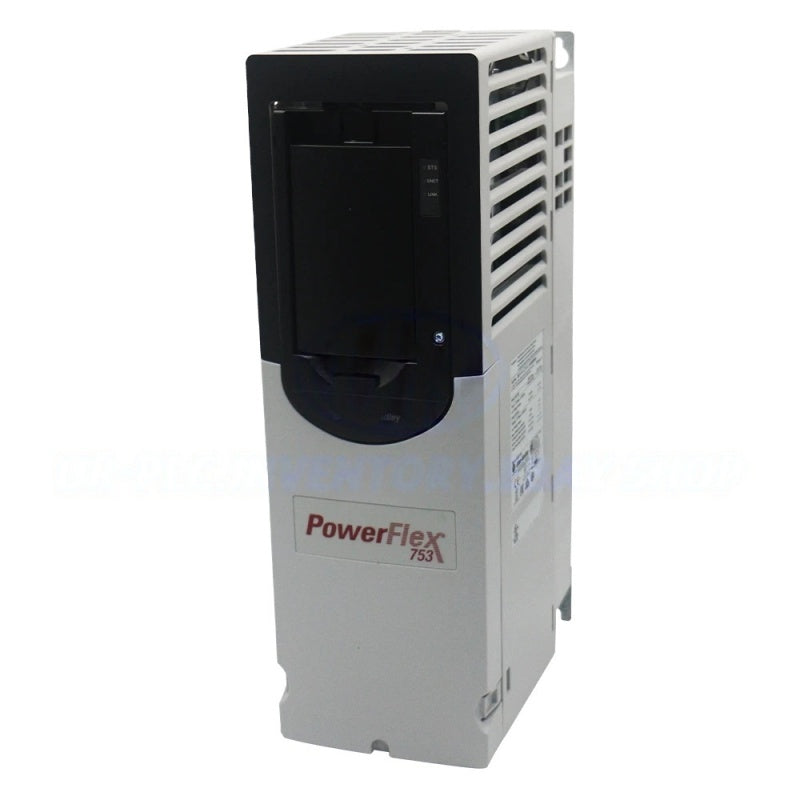

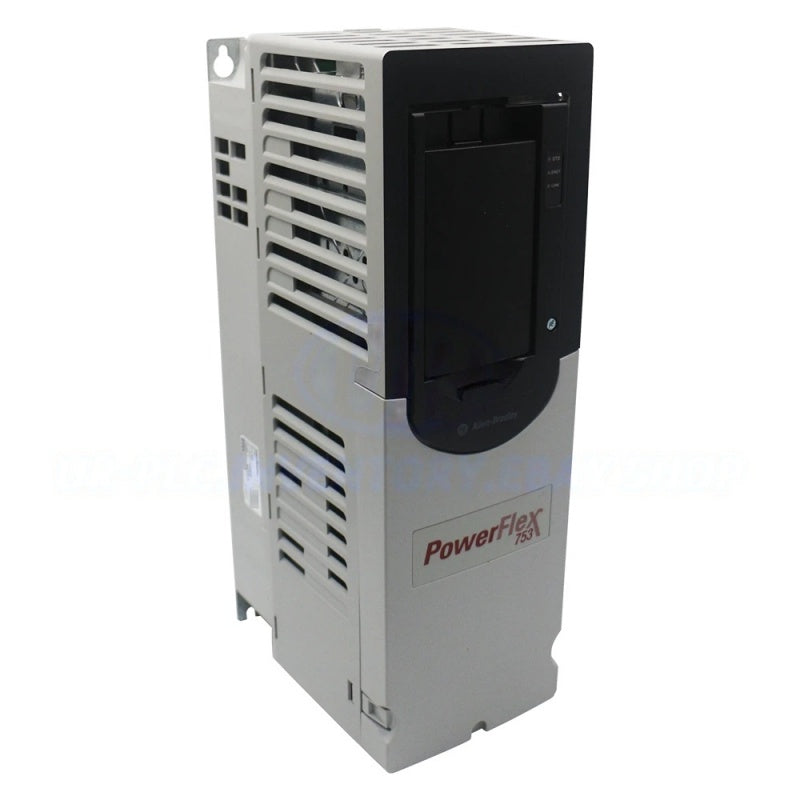

The 20F11NC011JA0NNNNN is a PowerFlex 753 AC drive with embedded I/O for industrial motor-control applications.

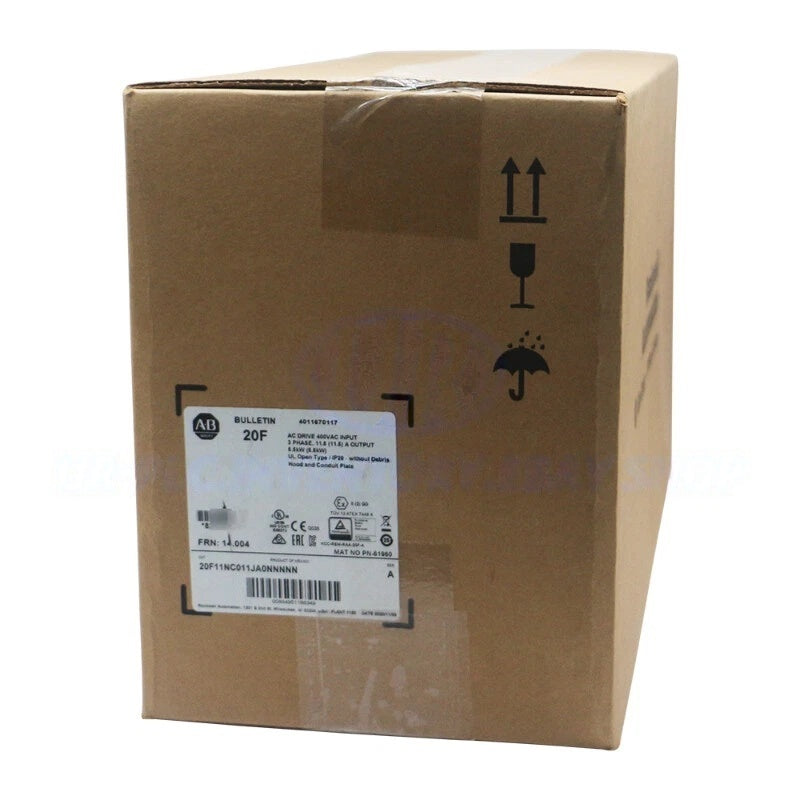

Allen-Bradley 20F11NC011JA0NNNNN PowerFlex 753 AC Drive 400V 11.5A 5.5kW
Available in stock (400)
Regular price
$718.64
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 20F11NC011JA0NNNNN |
| Product Category | AC Drive |
| Product Series | PowerFlex 753 |
| Embedded I/O | Yes |
| Voltage Class | 400 V AC, 3 Phase |
| Output Current | 11.5 A |
| Normal Duty Power | 5.5 kW |
| Heavy Duty Power | 4 kW |
| Frame Size | Frame 2 |
| Enclosure | IP20/IP00, NEMA/UL Open Type |
| Cooling | Forced Air |
| Input Type | AC Input with DC Terminals |
| EMC Filtering | Filtered, CM jumper installed |
| Dynamic Braking | DB Transistor |
| HIM | Blank, no HIM |
| UPC | 884951166349 |
Key Features
400 V Three-Phase
This configuration is specified for the 400 V AC three-phase voltage class.
11.5 A Output
The drive is rated at 11.5 A, with a 5.5 kW normal-duty rating and 4 kW heavy-duty rating for the documented configuration.
Frame 2 Construction

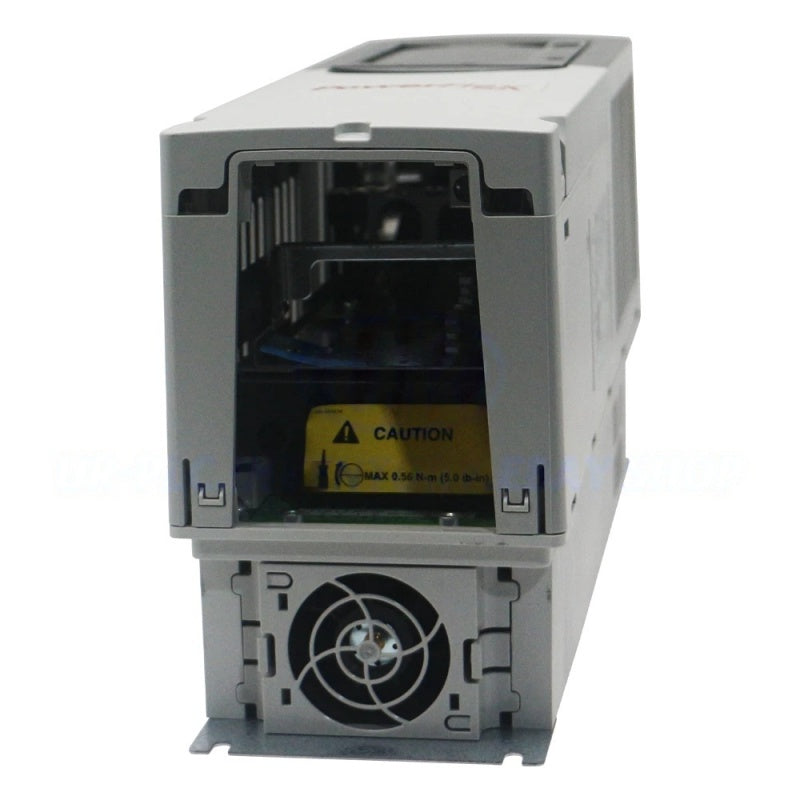

The drive uses the PowerFlex 753 Frame 2 mechanical configuration with forced-air cooling.
Filtered Configuration
This catalog number specifies EMC filtering with the CM jumper installed.
Dynamic Braking Transistor
A DB transistor is included in this drive configuration, while the catalog configuration is supplied without a HIM.
Applications
- Industrial AC motor speed control
- Conveyor drive systems
- Material handling machinery
- Packaging and processing equipment
- Pump and fan control systems
- Production machinery
- Machine automation systems
- General-purpose variable-speed motor applications
Purchase Information
We support online purchase of the Allen-Bradley 20F11NC011JA0NNNNN AC Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 20F11NC011JA0NNNNN?
It is a PowerFlex 753 air-cooled AC drive with embedded I/O for industrial motor-control applications.
What voltage class does this drive use?
The documented voltage class is 400 V AC, three phase.
What is the output current?
The documented output current is 11.5 A.
What is the power rating?
The documented configuration is rated at 5.5 kW for normal duty and 4 kW for heavy duty.
What frame size is 20F11NC011JA0NNNNN?
It is a PowerFlex 753 Frame 2 drive.
What enclosure type does it use?
The documented enclosure configuration is IP20/IP00, NEMA/UL Open Type.
Does this configuration include EMC filtering?
Yes. The catalog configuration specifies filtering with the CM jumper installed.
Does the drive include a dynamic braking transistor?
Yes. A DB transistor is specified for this catalog number.
Does 20F11NC011JA0NNNNN include a HIM?
No. The documented configuration is blank with no HIM.
Can this drive replace another PowerFlex drive?
It can be considered after the complete model number and technical requirements have been checked. Voltage, current, power rating, enclosure, frame size, options and system requirements should be verified against the existing application.
What should be checked before ordering?
The complete catalog number, 400 V three-phase supply, 11.5 A rating, duty requirements, enclosure, frame size, braking configuration and required control options should be checked before ordering.
