PowerFlex 700 Platform
The 20BD014A0AYNAND0 is a PowerFlex 700 AC drive designed for three-phase motor speed and torque control applications.

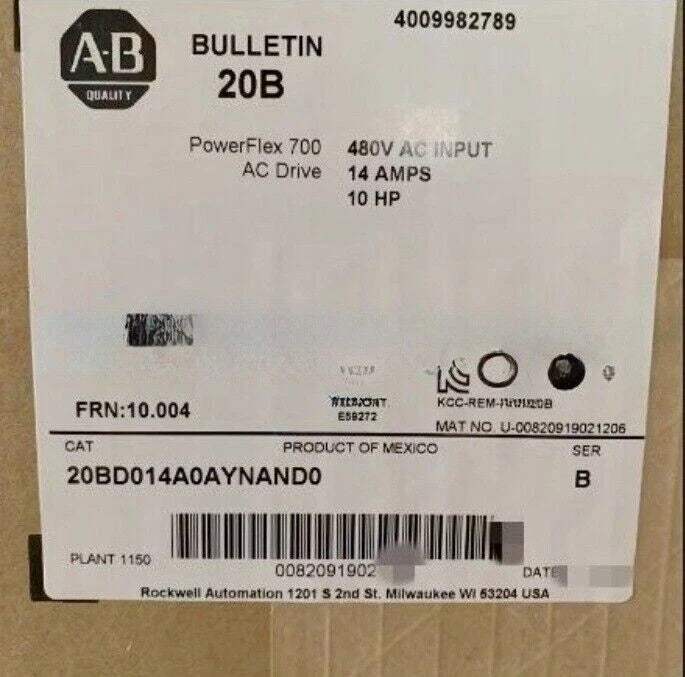

Allen-Bradley 20BD014A0AYNAND0 PowerFlex 700 AC Drive 480V 14A 10HP
Available in stock (400)
Regular price
$3,198.58
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 20BD014A0AYNAND0 |
| Product Category | AC Drive |
| Series | PowerFlex 700 |
| Input Voltage | 480 V AC, 3 Phase |
| Output Current | 14 A |
| Normal Duty Power | 10 HP |
| Heavy Duty Power | 7.5 HP |
| Frame Size | Frame 1 |
| Enclosure | IP20 / Type 1 with conformal coating |
| Control | Vector Control with 120 V I/O |
| Feedback | No Feedback |
| HIM | No HIM, Blank Plate |
| Communication Module | No Communication Module |
| Brake IGBT | Installed |
| Drive Mounted Brake Resistor | Not Included |
| EMC Filtering | Second Environment Filter per CE EMC directive |
| Continuous Output Current | 14 A |
| 1-Minute Output Current | 16.5 A |
| 3-Second Output Current | 22 A |
| UPC | 820919021206 |
Key Features
480 V Three-Phase Input
This catalog configuration operates from a documented 480 V AC three-phase input supply.
14 A Output
The drive provides a 14 A continuous output rating, with documented short-duration current ratings of 16.5 A for one minute and 22 A for three seconds.
10 HP Normal Duty
The documented motor ratings are 10 HP for normal-duty operation and 7.5 HP for heavy-duty operation.
Vector Control
This configuration uses vector control with 120 V I/O and is specified without a feedback option.
Brake IGBT Installed
A brake IGBT is installed in this configuration, while a drive-mounted brake resistor is not included.
Applications
- Three-phase AC motor speed control
- Industrial conveyor systems
- Material handling machinery
- Pump and fan drive applications
- Packaging and processing equipment
- Production machinery
- Industrial machine automation
- Variable-speed motor control systems
Purchase Information
We support online purchase of the Allen-Bradley 20BD014A0AYNAND0 AC Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 20BD014A0AYNAND0?
It is a PowerFlex 700 AC drive for industrial three-phase motor control applications.
What is the input voltage?
The documented input is 480 V AC, three phase.
What is the output current?
The continuous output current is 14 A. The documented short-duration ratings are 16.5 A for one minute and 22 A for three seconds.
What is the power rating?
The drive is rated at 10 HP for normal duty and 7.5 HP for heavy duty.
What frame size does it use?
The documented configuration uses Frame 1.
What enclosure does 20BD014A0AYNAND0 have?
It is specified with an IP20 / Type 1 enclosure with conformal coating.
What control configuration does it use?
The drive uses vector control with 120 V I/O and is configured without feedback.
Does it include a HIM?
No. This catalog configuration is specified with no HIM and a blank plate.
Does it include a communication module?
No communication module is included in the documented catalog configuration.
Does it include a brake IGBT?
Yes. The brake IGBT is installed, but a drive-mounted brake resistor is not included.
Can 20BD014A0AYNAND0 replace another AC drive?
It can be considered after the complete model number and technical requirements have been checked. Input voltage, output current, duty rating, frame size, enclosure, I/O, control method and option requirements should be verified against existing system requirements.
What should be checked before ordering?
The complete catalog number, 480 V three-phase input, 14 A current rating, 10 HP normal-duty or 7.5 HP heavy-duty requirement, Frame 1 construction, control configuration and installed options should be checked before ordering.
