PowerFlex 700 Platform
The 20BC085A0AYNANC0 is a PowerFlex 700 AC drive for three-phase industrial motor control applications.
1 / 8
Allen-Bradley

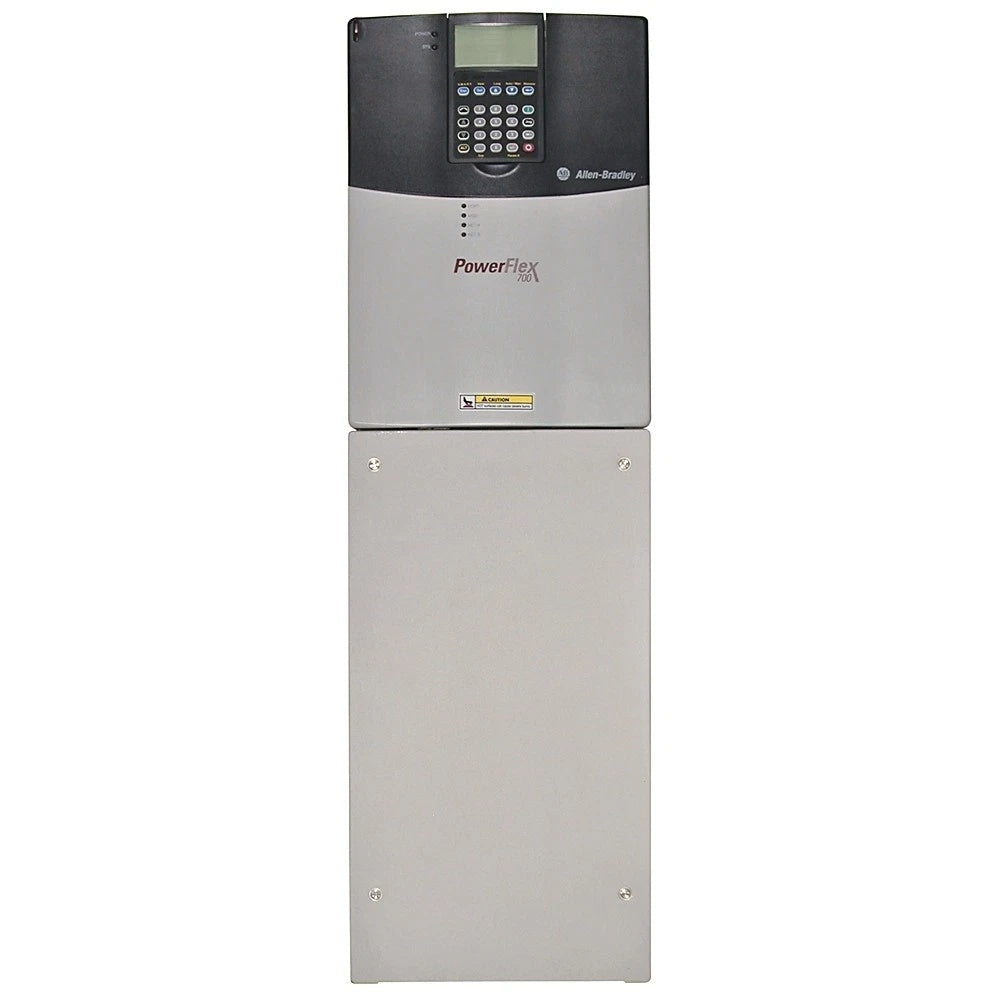

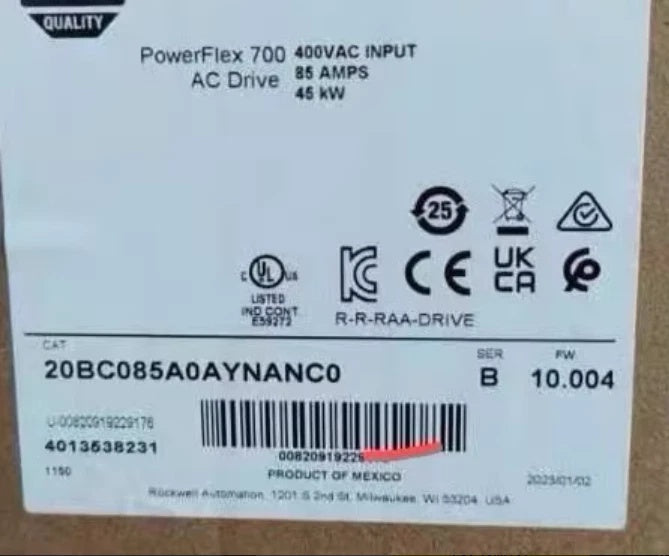

Allen-Bradley 20BC085A0AYNANC0 PowerFlex 700 AC Drive 400V 85A 45kW
PRODUCT PRICE
USD
$8,440.39
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 20BC085A0AYNANC0 |
| Product Category | AC Drive |
| Series | PowerFlex 700 |
| Input Voltage | 400 V AC, 3 Phase |
| Output Current | 85 A |
| Normal Duty Power | 45 kW |
| Heavy Duty Power | 37 kW |
| Enclosure | IP20 / Type 1 with conformal coating |
| Control and I/O | Vector Control with 24 V I/O |
| Feedback | No Feedback |
| HIM | No HIM, Blank Plate |
| Communication Module | No Communication Module |
| Brake IGBT | Installed |
| Drive Mounted Brake Resistor | Not Included |
| EMC Filtering | Second Environment Filter |
Key Features
400 V Three-Phase
This catalog configuration is specified for the 400 V AC three-phase voltage class.
85 A Output
The drive has a documented output current rating of 85 A for the specified configuration.
45 kW Normal Duty
The documented power ratings are 45 kW for normal-duty operation and 37 kW for heavy-duty operation.
Vector Control
This configuration uses vector control with 24 V I/O and is specified without a feedback option.
Brake IGBT Installed
A brake IGBT is installed in this configuration, while a drive-mounted brake resistor is not included.
Applications
- Industrial AC motor speed control
- Conveyor drive systems
- Material handling machinery
- Pump and fan drive applications
- Packaging and processing equipment
- Production machinery
- Industrial machine automation
- Variable-speed motor control systems
Purchase Information
We support online purchase of the Allen-Bradley 20BC085A0AYNANC0 AC Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 20BC085A0AYNANC0?
It is a PowerFlex 700 AC drive for industrial three-phase motor control applications.
What voltage class does this drive use?
The documented voltage class is 400 V AC, three phase.
What is the output current rating?
The documented output current rating is 85 A.
What is the normal-duty power rating?
The documented normal-duty rating is 45 kW.
What is the heavy-duty power rating?
The documented heavy-duty rating is 37 kW.
What enclosure configuration is specified?
The documented enclosure is IP20 / Type 1 with conformal coating.
What control and I/O configuration does it use?
This catalog number specifies vector control with 24 V I/O and no feedback.
Does it include a HIM?
No. The documented configuration has no HIM and uses a blank plate.
Does it include a communication module?
No communication module is included in the documented configuration.
Does it include braking hardware?
A brake IGBT is installed, while a drive-mounted brake resistor is not included.
Can 20BC085A0AYNANC0 replace another PowerFlex 700 drive?
It can be considered after the complete model number and technical requirements have been checked. Voltage, current, duty rating, enclosure, control, I/O, braking and option requirements should be verified against existing system requirements.
What should be checked before ordering?
The complete catalog number, 400 V three-phase supply, 85 A output requirement, 45 kW normal-duty or 37 kW heavy-duty rating, enclosure, control configuration and installed options should be checked before ordering.
Need help confirming a model?
Send us your part number and technical requirements.
