PowerFlex 700 Platform
The 20BC037A0AYNANC0 is a PowerFlex 700 AC drive for industrial three-phase motor control applications.
1 / 8
Allen-Bradley

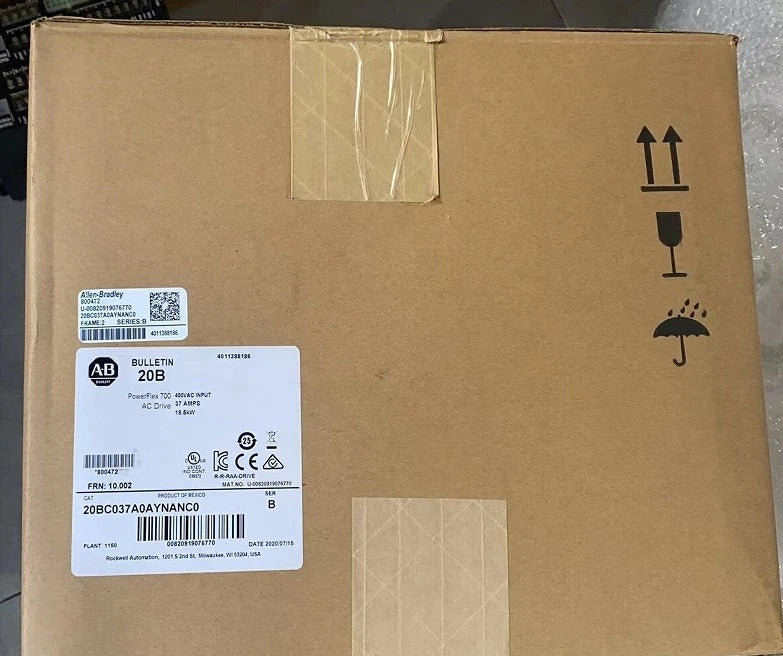

Allen-Bradley 20BC037A0AYNANC0 PowerFlex 700 AC Drive 400V 37A 18.5kW
PRODUCT PRICE
USD
$3,646.83
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 20BC037A0AYNANC0 |
| Product Category | AC Drive |
| Series | PowerFlex 700 |
| Input Voltage | 400 V AC, 3 Phase |
| Output Current | 37 A |
| Normal Duty Power | 18.5 kW |
| Heavy Duty Power | 15 kW |
| Frame Size | Frame 2 |
| Enclosure | IP20 / Type 1 with conformal coating |
| Control and I/O | Vector Control with 24 V I/O |
| Feedback | No Feedback |
| HIM | No HIM, Blank Plate |
| Communication Module | No Communication Module |
| Brake IGBT | Installed |
| Drive Mounted Brake Resistor | Not Included |
| EMC Filtering | Second Environment Filter |
| Continuous Output Current | 37 A |
| 1-Minute Output Current | 45 A |
| 3-Second Output Current | 60 A |
| UPC | 820919076770 |
Key Features
400 V Three-Phase
This catalog configuration is specified for a 400 V AC three-phase power supply.
37 A Output
The drive provides 37 A continuous output, with documented short-duration ratings of 45 A for one minute and 60 A for three seconds.
18.5 kW Normal Duty
The documented power ratings are 18.5 kW for normal-duty operation and 15 kW for heavy-duty operation.
Vector Control
This configuration uses vector control with 24 V I/O and is specified without a feedback option.
Brake IGBT Installed
A brake IGBT is installed in this configuration, while a drive-mounted brake resistor is not included.
Applications
- Industrial AC motor speed control
- Conveyor drive systems
- Material handling machinery
- Pump and fan applications
- Packaging and processing equipment
- Production machinery
- Industrial machine automation
- Variable-speed motor control systems
Purchase Information
We support online purchase of the Allen-Bradley 20BC037A0AYNANC0 AC Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 20BC037A0AYNANC0?
It is a PowerFlex 700 AC drive for industrial three-phase motor control applications.
What is the input voltage?
The documented input voltage is 400 V AC, three phase.
What is the continuous output current?
The continuous output current is 37 A.
What are the short-duration current ratings?
The documented ratings are 45 A for one minute and 60 A for three seconds.
What is the normal-duty power rating?
The documented normal-duty power rating is 18.5 kW.
What is the heavy-duty power rating?
The documented heavy-duty power rating is 15 kW.
What frame size does this drive use?
The 20BC037A0AYNANC0 uses a Frame 2 configuration.
What enclosure configuration is specified?
The documented enclosure is IP20 / Type 1 with conformal coating.
What control and I/O configuration does it use?
This catalog number specifies vector control with 24 V I/O and no feedback.
Does it include a HIM or communication module?
The documented configuration has no HIM and uses a blank plate. No communication module is included.
Does it include braking hardware?
A brake IGBT is installed, while a drive-mounted brake resistor is not included.
Can 20BC037A0AYNANC0 replace another AC drive?
It can be considered after the complete model number and technical requirements have been checked. Input voltage, current, duty rating, frame size, enclosure, control, I/O and installed options should be verified against existing system requirements.
