48 Embedded I/O Points
The Micro850 controller provides 28 digital inputs and 20 relay outputs for machine control and monitoring circuits.
Allen-Bradley
Allen-Bradley Brand New 2080-LC50-48QWB PLC Controller
$376.44
Available
PRODUCT GALLERY
01 / 7

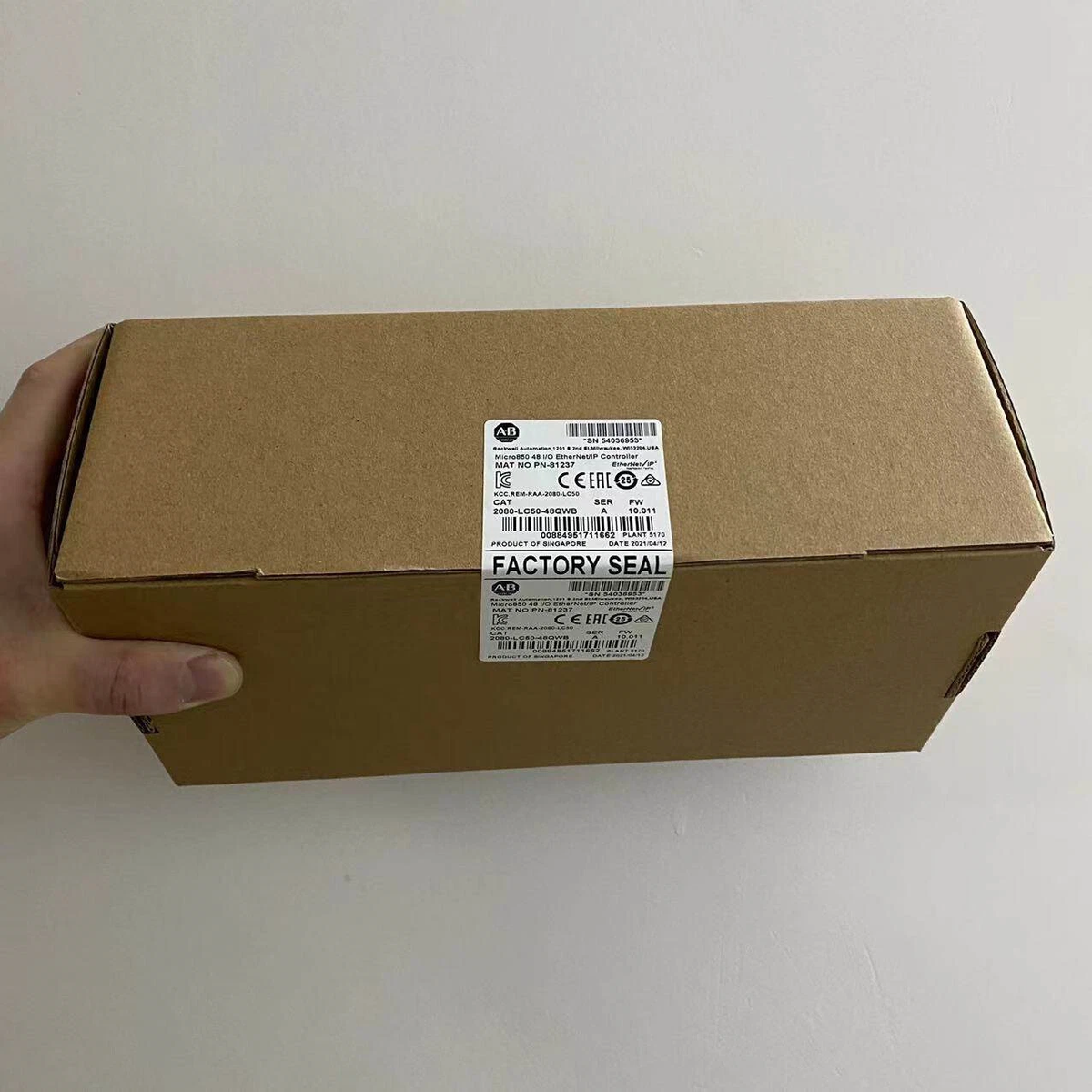

Product images for part identification
Allen-Bradley
Allen-Bradley Brand New 2080-LC50-48QWB PLC Controller
PRODUCT PRICE
USD
$376.44
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 2080-LC50-48QWB |
| Product Category | PLC Controller |
| Product Family | Micro850 |
| Controller Series | Micro800 |
| Total Embedded I/O | 48 Points |
| Digital Inputs | 28 Points |
| Input Type | 24V DC Sink/Source |
| Digital Outputs | 20 Relay Outputs |
| Relay Output Rating | 2 A at 240 VAC or 24 VDC |
| Nominal Power Supply | 24 VDC |
| Supply Voltage Range | 21.4-26.4 VDC |
| Power Consumption Without Expansion | 11 W Max. |
| Power Consumption With Expansion | 33 W Max. |
| Ethernet Communication | EtherNet/IP |
| Serial Communication | RS-232/RS-485 |
| Programming Interface | USB |
| Plug-in Module Capacity | Up to 5 |
| Expansion I/O Capacity | Up to 4 Modules |
| Dimensions (H × W × D) | 90 × 238 × 80 mm |
| Approximate Shipping Weight | 0.725 kg |
| Product Lifecycle | Discontinued July 31, 2023 |
Key Features
24V DC Input Circuits
The digital input configuration supports 24V DC sink/source wiring arrangements.
20 Relay Outputs
The controller includes 20 relay outputs with documented electrical ratings for supported industrial control loads.
EtherNet/IP Interface
Built-in EtherNet/IP communication enables integration with supported industrial Ethernet control networks.
Expandable Controller Architecture
The Micro850 platform supports up to five plug-in modules and four expansion I/O modules, subject to supported system configurations.
24VDC Controller Supply
The controller operates from a nominal 24 VDC power supply, with maximum consumption dependent on the installed expansion configuration.
Applications
- Industrial machine control systems
- Conveyor and material handling automation
- Packaging machinery control
- Manufacturing production line automation
- Pump and motor control circuits
- Industrial digital I/O monitoring
- Machine control panel installations
- Automated assembly equipment
Purchase Information
We support online purchase of the Allen-Bradley 2080-LC50-48QWB PLC Controller. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 2080-LC50-48QWB?
Allen-Bradley 2080-LC50-48QWB is a Micro850 programmable logic controller with 48 embedded I/O points and EtherNet/IP communication.
How many inputs and outputs does the controller provide?
The controller provides 28 digital inputs and 20 relay outputs, for a total of 48 embedded I/O points.
What type of digital inputs does 2080-LC50-48QWB use?
The controller uses 24V DC sink/source digital inputs.
What type of outputs are provided?
The documented configuration includes 20 relay outputs.
What is the relay output current rating?
The documented relay output rating is 2 A at 240 VAC or 24 VDC. Actual load suitability must be checked against the electrical specifications.
What power supply does 2080-LC50-48QWB require?
The controller operates from a nominal 24 VDC supply with a documented supply range of 21.4-26.4 VDC.
What is the power consumption?
The documented maximum power consumption is 11 W without plug-in or expansion I/O modules and 33 W with expansion modules.
Does the controller support EtherNet/IP?
Yes. EtherNet/IP communication is supported by the Micro850 controller.
Can the controller accept additional I/O modules?
The controller supports up to five plug-in modules and four expansion I/O modules, subject to module compatibility and system limitations.
What are the controller dimensions?
The documented dimensions are 90 × 238 × 80 mm, measured as height, width and depth.
Is 2080-LC50-48QWB still in production?
Rockwell Automation lists this catalog number as discontinued as of July 31, 2023. It identifies 2080-L50E-48QWB as a functional successor; electrical, software and mechanical requirements must be evaluated before selecting another controller.
What should be checked before ordering this controller?
Verify the complete catalog number, I/O configuration, supply voltage, communication interfaces, module requirements, controller firmware and installation dimensions against the application documentation before ordering.
