24 Embedded I/O Points
The Micro850 controller includes 14 digital inputs and 10 relay outputs for industrial equipment control and monitoring applications.
Allen-Bradley
Allen-Bradley Brand New 2080-LC50-24QWB PLC Controller
$395.52
Available
PRODUCT GALLERY
01 / 10

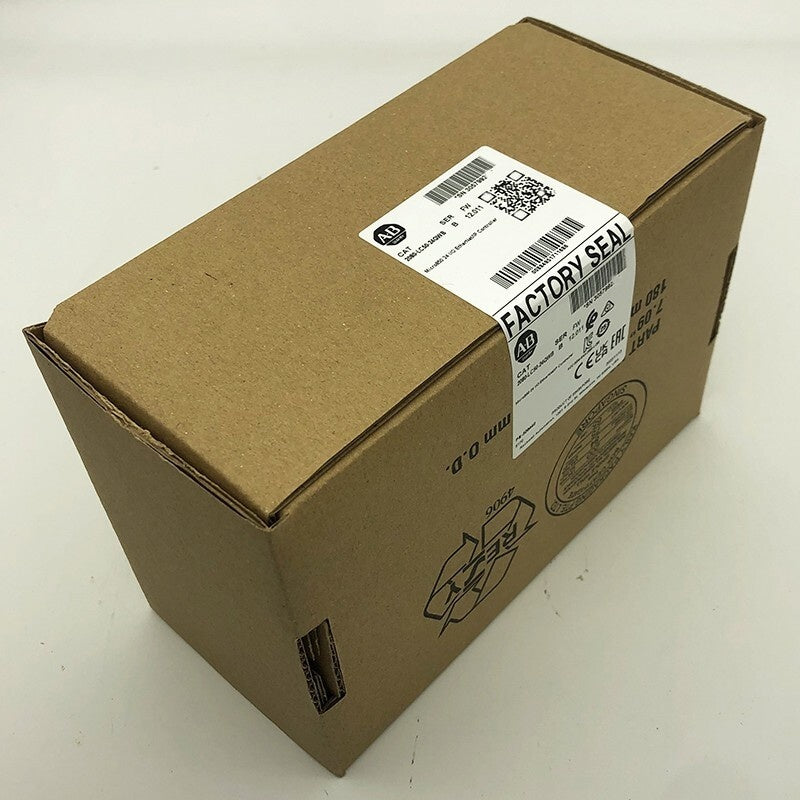

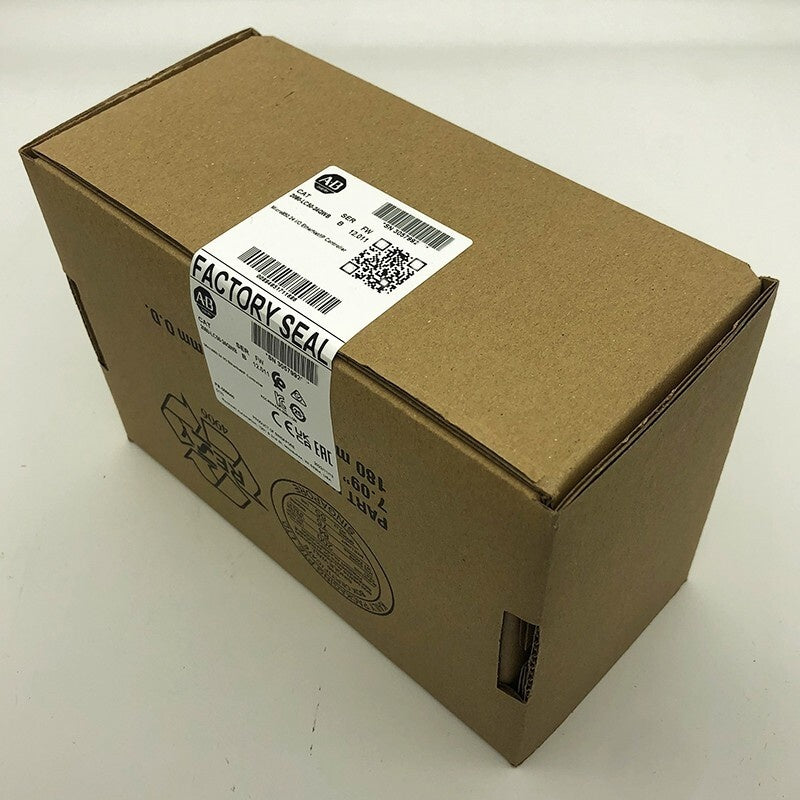

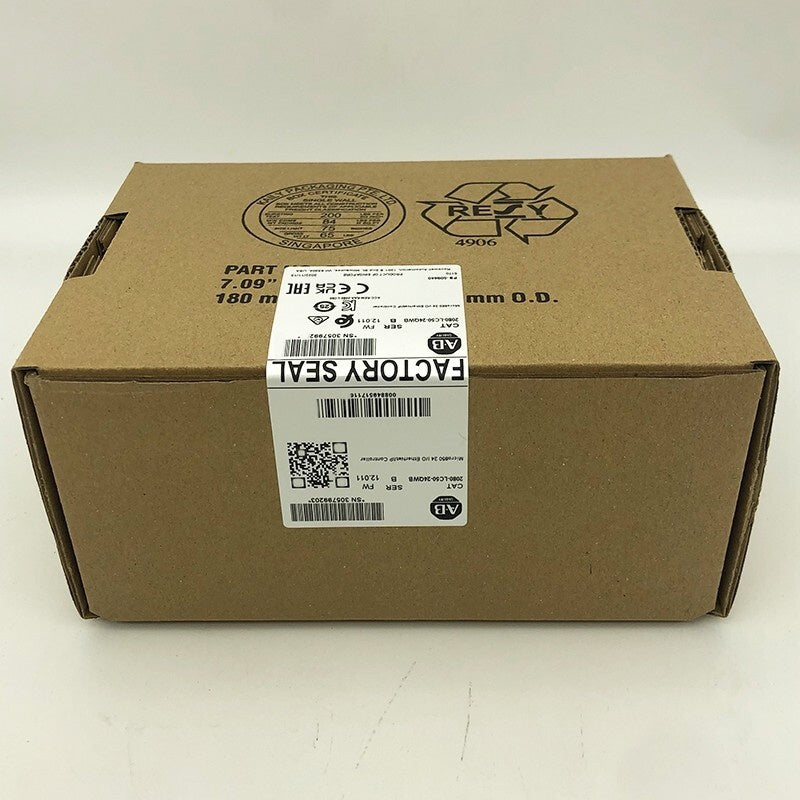

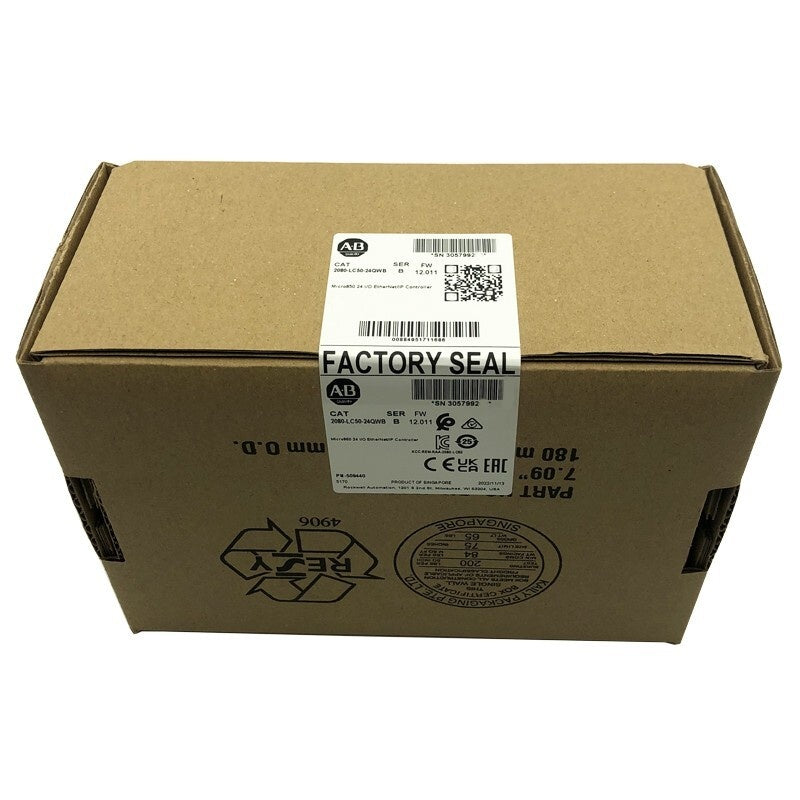

Product images for part identification
Allen-Bradley
Allen-Bradley Brand New 2080-LC50-24QWB PLC Controller
PRODUCT PRICE
USD
$395.52
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 2080-LC50-24QWB |
| Product Category | PLC Controller |
| Product Family | Micro850 |
| Controller Series | Micro800 |
| Controller Type | Programmable Logic Controller |
| Total Embedded I/O | 24 Points |
| Digital Inputs | 14 Points |
| High-Speed DC Inputs | 8 Points (Inputs 0-7) |
| Standard DC Inputs | 6 Points (Inputs 8-13) |
| Input Circuit Type | 12/24V DC Sink/Source (Standard); 24V DC Sink/Source (High-Speed) |
| Digital Outputs | 10 Relay Outputs |
| Relay Output Current | 2 A Maximum Continuous per Point |
| Maximum Current per Common | 5 A |
| Nominal Power Supply | 24 VDC |
| Power Supply Voltage Range | 20.4-26.4 VDC |
| Power Consumption | 28 W |
| Ethernet Interface | RJ-45 EtherNet/IP |
| Serial Interface | RS-232/RS-485 Combination Port |
| USB Interface | USB Type B Programming Port |
| Plug-in Module Capacity | Up to 3 Modules |
| Expansion I/O Capacity | Up to 4 Modules |
| Mounting | DIN Rail or Panel Mounting |
| Enclosure Protection | IP20 |
| Operating Temperature | -20°C to 65°C |
| Relative Humidity | 5-95% Non-Condensing |
| Dimensions (H × W × D) | 90 × 158 × 80 mm |
| Approximate Shipping Weight | 0.423 kg |
Key Features
8 High-Speed DC Inputs
Inputs 0-7 provide the documented high-speed DC input configuration, while inputs 8-13 provide six standard DC input points.
10 Relay Outputs
The controller provides ten relay outputs with a documented maximum continuous load current of 2 A per point, subject to relay load specifications.
EtherNet/IP Communication
The embedded RJ-45 Ethernet connection supports EtherNet/IP communication for compatible industrial automation networks.
Expandable I/O Architecture
The Micro850 24-point controller supports up to three plug-in modules and four Micro800 expansion I/O modules, subject to supported configurations.
24VDC Controller Power
The controller uses a nominal 24 VDC supply with a documented input voltage range of 20.4 to 26.4 VDC.
Applications
- Industrial machine control systems
- Conveyor and material handling automation
- Packaging machinery control
- Manufacturing production line automation
- Pump and motor control circuits
- Industrial digital I/O monitoring
- Machine control panel installations
- Automated assembly equipment
Purchase Information
We support online purchase of the Allen-Bradley 2080-LC50-24QWB PLC Controller. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 2080-LC50-24QWB?
Allen-Bradley 2080-LC50-24QWB is a Micro850 programmable logic controller with 24 embedded I/O points, relay outputs and an EtherNet/IP interface.
How many inputs and outputs does 2080-LC50-24QWB provide?
The controller provides 14 digital inputs and 10 relay outputs, for a total of 24 embedded I/O points.
What is the digital input configuration?
The documented configuration includes eight high-speed DC inputs and six standard DC inputs with sink/source input capability.
What type of outputs does 2080-LC50-24QWB use?
The controller uses ten relay outputs rather than transistor outputs.
What is the maximum relay output current?
The documented maximum continuous load current is 2 A per output point, with a maximum of 5 A per common. Applicable switching-load ratings must also be observed.
What power supply does 2080-LC50-24QWB require?
The controller uses a nominal 24 VDC power supply with a documented operating voltage range of 20.4-26.4 VDC.
What is the documented power consumption?
The controller has a documented power consumption of 28 W.
Does 2080-LC50-24QWB support EtherNet/IP?
Yes. The controller includes an RJ-45 Ethernet interface supporting EtherNet/IP communication.
What other communication interfaces are available?
The controller includes an RS-232/RS-485 combination serial port and a USB Type B port for local programming.
Can 2080-LC50-24QWB use additional I/O modules?
Yes. The documented configuration supports up to three plug-in modules and four expansion I/O modules, subject to compatibility and power requirements.
What are the dimensions and operating temperature range?
The documented dimensions are 90 × 158 × 80 mm, and the operating temperature range is -20°C to 65°C.
What should be checked before ordering 2080-LC50-24QWB?
Verify the complete catalog number, 24 VDC supply, 14-input and 10-relay-output configuration, communication interfaces, expansion requirements, controller programming requirements and mounting dimensions against the existing system documentation.
