20 Embedded I/O Points
The Micro820 controller provides 12 inputs and 8 outputs, combining digital and analog signal connections for industrial automation applications.
Allen-Bradley
Allen-Bradley Brand New 2080-LC20-20AWB PLC Controller Inputs 24VDC
$172.51
Available
PRODUCT GALLERY
01 / 7

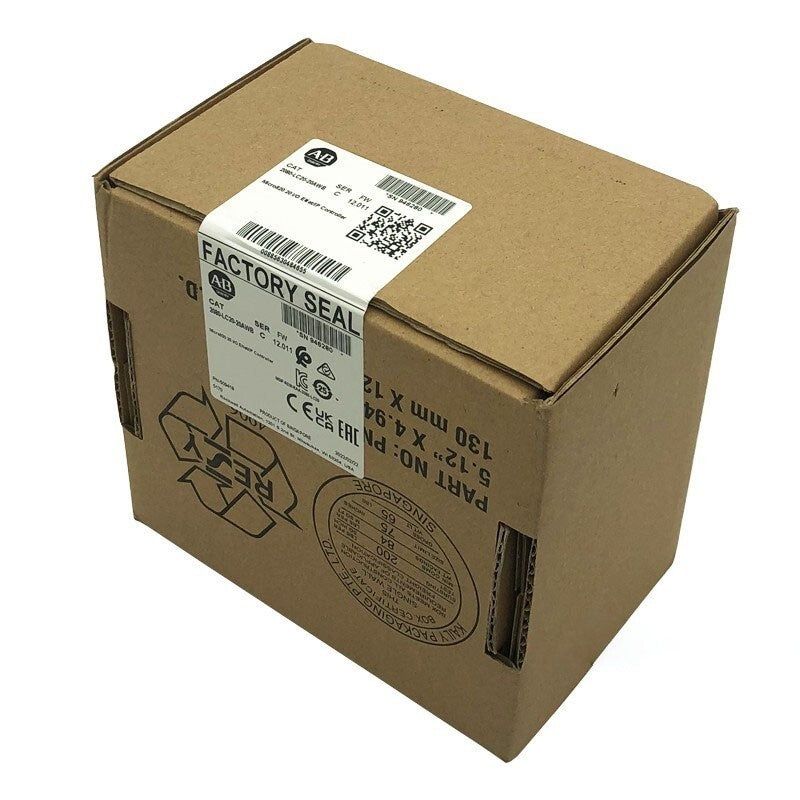

Product images for part identification
Allen-Bradley
Allen-Bradley Brand New 2080-LC20-20AWB PLC Controller Inputs 24VDC
PRODUCT PRICE
USD
$172.51
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 2080-LC20-20AWB |
| Product Category | PLC Controller |
| Product Family | Micro820 |
| Controller Series | Micro800 |
| Controller Type | Programmable Logic Controller |
| Total Embedded I/O | 20 Points |
| Total Inputs | 12 Points |
| AC Digital Inputs | 8 Points |
| AC Input Voltage | 120 VAC Nominal, 50/60 Hz |
| Analog Inputs | 4 Points |
| Analog Input Signal | 0-10 VDC |
| Analog Input Resolution | 12-bit |
| Total Outputs | 8 Points |
| Relay Outputs | 7 Points |
| Relay Output Rating | 2 A at 240 VAC or 24 VDC |
| Analog Outputs | 1 Point |
| Analog Output Signal | 0-10 VDC |
| Analog Output Resolution | 12-bit |
| Nominal Power Supply | 24 VDC |
| Power Supply Voltage Range | 20.4-26.4 VDC |
| Power Consumption Without Plug-in Modules | 5.62 W Maximum |
| Power Consumption With Plug-in Modules | 8.5 W Maximum |
| Ethernet Interface | RJ-45 Ethernet |
| Serial Interface | RS-232/RS-485 Combination Port |
| Plug-in Module Capacity | Up to 2 Modules |
| Memory Card Support | microSD Card |
| Real-Time Clock | Embedded RTC |
| Terminal Block Type | Fixed |
| Mounting | DIN Rail or Panel Mounting |
| Enclosure Protection | IP20 |
| Operating Temperature | -20°C to 65°C |
| Relative Humidity | 5-95% Non-Condensing |
| Dimensions (H × W × D) | 90 × 104 × 75 mm |
| Approximate Shipping Weight | 0.38 kg |
Key Features
8 AC Digital Inputs
The controller includes eight digital inputs rated for 120 VAC nominal operation at 50/60 Hz.
Integrated Analog I/O
Four 0-10 VDC analog inputs and one 0-10 VDC analog output support compatible analog measurement and control signals.
7 Relay Outputs
The controller provides seven relay outputs with documented ratings of 2 A at 240 VAC or 24 VDC, subject to applicable load requirements.
Ethernet and Serial Communication
An embedded RJ-45 Ethernet connection and an RS-232/RS-485 combination port provide communication interfaces for supported control systems.
24VDC Controller Supply
The controller uses a nominal 24 VDC power supply and supports up to two compatible plug-in modules.
Applications
- Industrial machine control systems
- Conveyor and material handling automation
- Packaging machinery control
- Manufacturing production line automation
- AC input signal monitoring
- Analog sensor signal acquisition
- Relay-based equipment control
- Industrial control panel installations
Purchase Information
We support online purchase of the Allen-Bradley 2080-LC20-20AWB PLC Controller. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 2080-LC20-20AWB?
Allen-Bradley 2080-LC20-20AWB is a Micro820 programmable logic controller with 20 embedded I/O points, including AC digital inputs, analog inputs, relay outputs and an analog output.
How many inputs and outputs does 2080-LC20-20AWB provide?
The controller provides 12 inputs and 8 outputs, for a total of 20 embedded I/O points.
What is the digital input configuration?
The controller includes eight digital inputs rated for 120 VAC nominal operation at 50/60 Hz.
Does 2080-LC20-20AWB support analog inputs?
Yes. The controller includes four 0-10 VDC analog input channels with 12-bit resolution.
What type of outputs does 2080-LC20-20AWB provide?
The documented output configuration includes seven relay outputs and one 0-10 VDC analog output.
What is the relay output rating?
The documented relay output rating is 2 A at 240 VAC or 24 VDC. Actual load suitability must be checked against the relay contact specifications.
What power supply does 2080-LC20-20AWB require?
The controller requires a nominal 24 VDC power supply with a documented voltage range of 20.4-26.4 VDC. The 120 VAC rating applies to the AC digital inputs, not the controller power supply.
What is the power consumption of 2080-LC20-20AWB?
The documented maximum power consumption is 5.62 W without plug-in modules and 8.5 W with plug-in modules.
What communication interfaces are available?
The controller includes an RJ-45 Ethernet interface and an RS-232/RS-485 combination serial port.
Can 2080-LC20-20AWB use additional plug-in modules?
Yes. The Micro820 controller supports up to two compatible plug-in modules, subject to module and power requirements.
What are the dimensions and operating temperature range?
The documented dimensions are 90 × 104 × 75 mm, and the operating temperature range is -20°C to 65°C.
What should be checked before ordering 2080-LC20-20AWB?
Verify the complete catalog number, 24 VDC controller supply, 120 VAC digital input requirements, analog signal ranges, relay output ratings, communication interfaces, plug-in module requirements and installation dimensions against the existing system documentation.
