12 Embedded I/O Points
The Micro810 controller provides eight AC digital inputs and four relay outputs for compact programmable machine control applications.
Allen-Bradley
Allen-Bradley Brand New 2080-LC10-12AWA PLC Controller 120/240VAC
$119.56
Available
PRODUCT GALLERY
01 / 9

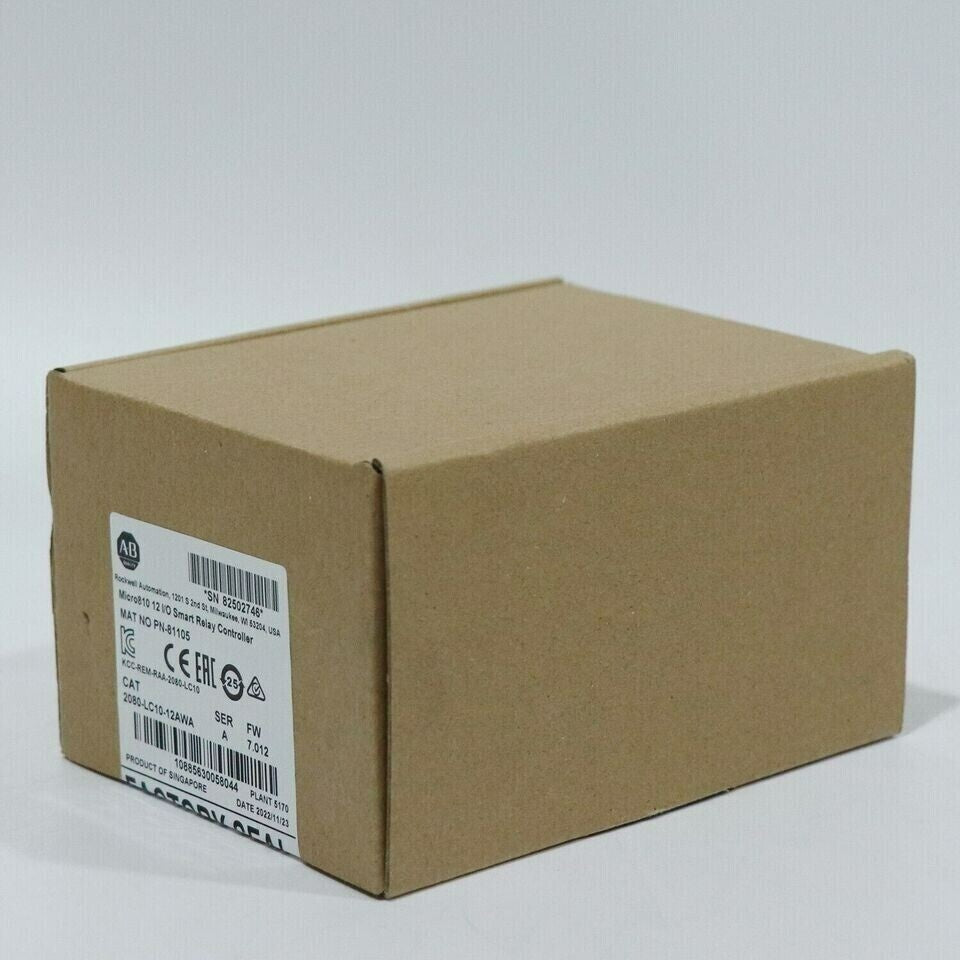

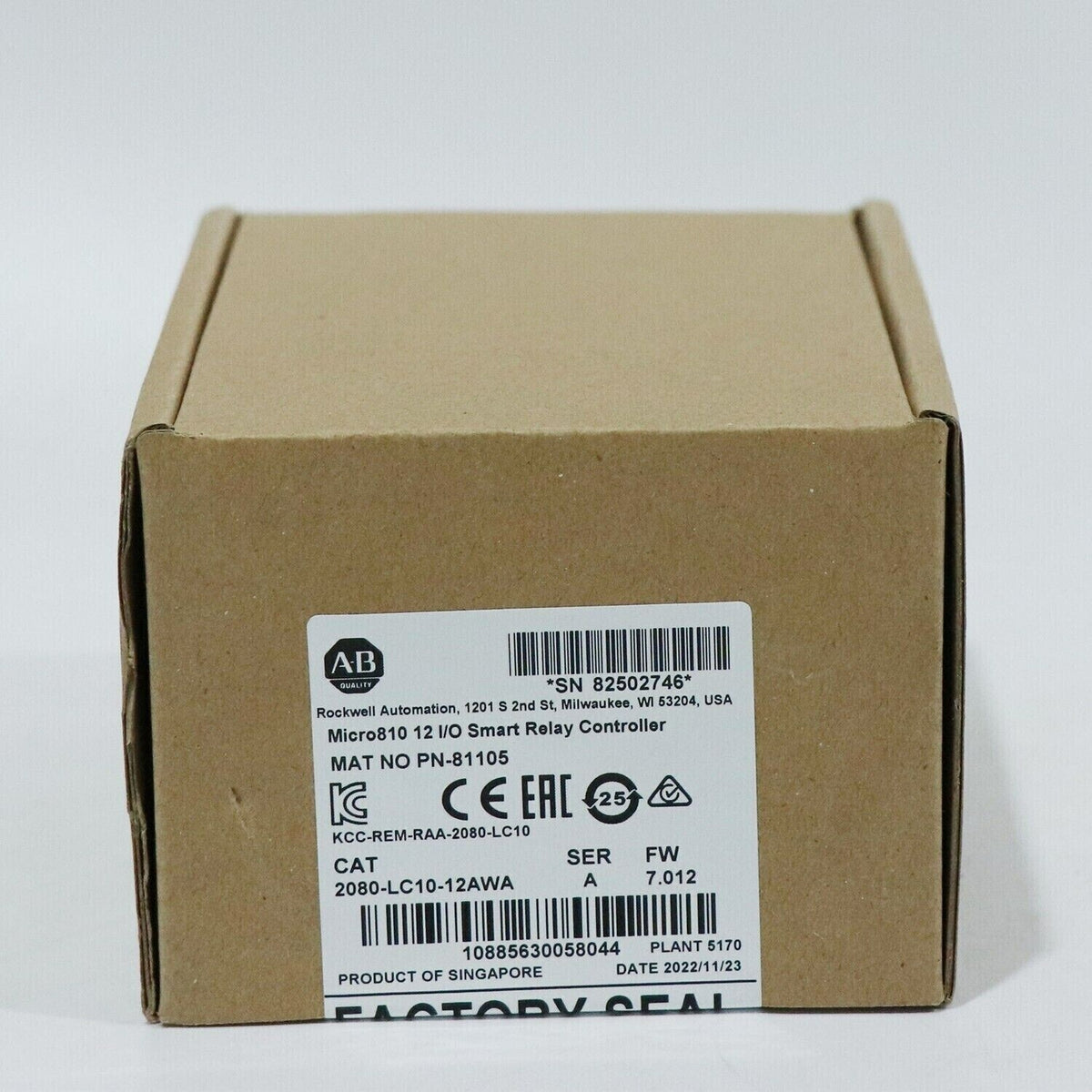

Product images for part identification
Allen-Bradley
Allen-Bradley Brand New 2080-LC10-12AWA PLC Controller 120/240VAC
PRODUCT PRICE
USD
$119.56
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 2080-LC10-12AWA |
| Product Category | PLC Controller |
| Product Family | Micro810 |
| Controller Series | Micro800 |
| Controller Type | 12-Point Programmable Smart Relay Controller |
| Total Embedded I/O | 12 Points |
| Digital Inputs | 8 AC Input Points |
| Digital Input Type | Non-Isolated AC Inputs |
| Digital Input Voltage | 120/240 VAC Nominal |
| Input Operating Frequency | 50/60 Hz |
| Minimum Input On-State Voltage | 79 VAC |
| Maximum Input On-State Voltage | 265 VAC |
| Digital Outputs | 4 Relay Outputs |
| Relay Outputs 00 and 01 | 8 A at 240 VAC; 5 A at 24 VDC |
| Relay Outputs 02 and 03 | 4 A at 240 VAC; 2 A at 24 VDC |
| Relay Turn-On Time | 15 ms |
| Relay Turn-Off Time | 5 ms |
| Controller Supply Voltage | 100-240 VAC, 50/60 Hz |
| Supply Voltage Range | 85-263 VAC |
| Supply Frequency Range | 47-63 Hz |
| Power Consumption | 5 VA |
| Programming Software | Connected Components Workbench |
| USB Programming | Via Optional 2080-USBADAPTER |
| Optional Operator Interface | 2080-LCD, 1.5-inch Display with Keypad |
| Real-Time Clock | Embedded RTC |
| Dimensions (H × W × D) | 91 × 75 × 59 mm |
| Enclosure Protection | IP20 |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | 5-95% Non-Condensing |
| Approximate Shipping Weight | 0.203 kg |
Key Features
120/240VAC Digital Inputs
Eight non-isolated digital input points accept 120/240 VAC nominal signals at 50/60 Hz for supported AC input monitoring applications.
Four Relay Outputs
Relay outputs 00 and 01 are rated at 8 A at 240 VAC, while outputs 02 and 03 are rated at 4 A at 240 VAC, subject to load requirements.
100-240VAC Controller Power
The controller operates from a 100-240 VAC supply at 50/60 Hz, with a documented supply voltage range of 85-263 VAC.
Programmable Control Functions
The Micro810 platform supports control logic programming through Connected Components Workbench and configuration functions through an optional LCD module.
Optional LCD and USB Adapter
The controller supports the optional 2080-LCD operator interface and 2080-USBADAPTER for supported local configuration and programming tasks.
Applications
- Compact industrial machine control
- Programmable relay logic applications
- 120/240VAC equipment status monitoring
- Machine sequence and timing control
- Relay-based equipment switching
- Industrial automation control panels
- Production machinery control circuits
- Small equipment control and maintenance systems
Purchase Information
We support online purchase of the Allen-Bradley 2080-LC10-12AWA PLC Controller. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 2080-LC10-12AWA?
Allen-Bradley 2080-LC10-12AWA is a Micro810 programmable smart relay controller with eight 120/240 VAC digital inputs and four relay outputs.
How many inputs and outputs does 2080-LC10-12AWA provide?
The controller provides eight digital inputs and four relay outputs, for a total of 12 embedded I/O points.
What type of digital inputs does 2080-LC10-12AWA use?
The controller uses eight non-isolated AC digital inputs rated for 120/240 VAC nominal operation at 50/60 Hz.
Does 2080-LC10-12AWA provide analog inputs?
The 2080-LC10-12AWA configuration provides AC digital inputs. The configurable analog input feature applies to specified DC-input Micro810 variants.
What type of outputs does 2080-LC10-12AWA provide?
The controller provides four electromechanical relay outputs for supported switching applications.
What is the relay output current rating?
Relay outputs 00 and 01 are rated at 8 A at 240 VAC or 5 A at 24 VDC. Outputs 02 and 03 are rated at 4 A at 240 VAC or 2 A at 24 VDC. Load characteristics must be checked before use.
What power supply does 2080-LC10-12AWA require?
The controller requires a 100-240 VAC supply at 50/60 Hz, with a documented supply voltage range of 85-263 VAC.
What is the power consumption of 2080-LC10-12AWA?
The documented controller power consumption is 5 VA.
Which software is used to program 2080-LC10-12AWA?
The Micro810 controller supports programming with Connected Components Workbench software.
Does 2080-LC10-12AWA support USB programming?
Yes. USB programming is supported through the optional 2080-USBADAPTER accessory.
Can an LCD module be used with 2080-LC10-12AWA?
Yes. The optional 2080-LCD module provides a 1.5-inch display with keypad for supported monitoring and configuration functions.
What should be checked before ordering 2080-LC10-12AWA?
Verify the complete catalog number, 100-240 VAC power supply, eight AC digital inputs, relay output load ratings, installation dimensions, programming requirements and optional accessories against the existing system documentation.
