Allen-Bradley

Allen-Bradley 2080-L50E-48QBB PLC Controller 24VDC

SKU: LL1-AB-2080L50E48QBB

$461.25

Available

PRODUCT GALLERY 01 / 7

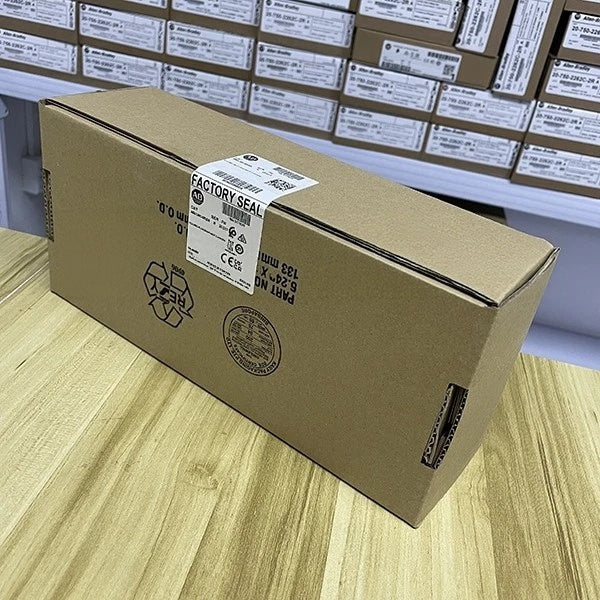

✓ Product images for part identification

Allen-Bradley

Allen-Bradley 2080-L50E-48QBB PLC Controller 24VDC

SKU: LL1-AB-2080L50E48QBB

PRODUCT PRICE USD

$461.25

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Allen-Bradley
Model Number	2080-L50E-48QBB
Product Category	PLC Controller
Product Family	Micro850
Controller Series	Micro800
Controller Type	Programmable Logic Controller
Total Embedded I/O	48 Points
Digital Inputs	28 Points
Digital Input Type	24V DC/AC
Digital Input Circuit	24V DC Sink/Source, Standard and High-Speed
Digital Outputs	20 Points
Digital Output Type	24V DC Source Transistor Outputs
Standard Output Voltage Range	10-26.4 VDC
Output Current at 30°C	1.0 A Maximum per Point in Standard Operation
Output Current at 65°C	0.3 A Maximum per Point in Standard Operation
High-Speed Output Current	100 mA Maximum in High-Speed Operation
High-Speed Counter Support	Up to 6 Embedded Counters
Pulse Train Output / PWM Support	3 Channels
Nominal Controller Power Supply	24 VDC Class 2
Power Supply Voltage Range	21.4-26.4 VDC
Power Consumption Without Expansion	11 W Maximum
Power Consumption With Expansion	33 W Maximum
Ethernet Interface	10/100 Base-T RJ-45
Ethernet Communication	EtherNet/IP
Serial Communication	RS-232/RS-485 Combination Port
USB Interface	USB Type B Programming Port
Plug-in Module Capacity	Up to 5 Modules
Expansion I/O Capacity	Up to 4 Modules
Programming Software	Connected Components Workbench
Dimensions (H × W × D)	90 × 238 × 80 mm
Approximate Shipping Weight	0.725 kg
Enclosure Type	Open Style

Key Features

48 Embedded I/O Points

The 2080-L50E-48QBB provides 28 digital inputs and 20 transistor outputs for industrial machine control and monitoring applications.

20 DC Source Outputs

The controller includes 20 source-type transistor outputs for compatible DC control circuits. Maximum output current depends on ambient temperature and operating mode.

High-Speed Control Functions

The documented configuration supports up to six embedded high-speed counters and three pulse train output or PWM channels for supported control applications.

EtherNet/IP Communication

An embedded 10/100 Base-T RJ-45 Ethernet interface provides EtherNet/IP communication for supported industrial automation networks.

Expandable I/O Architecture

The Micro850 controller supports up to five plug-in modules and four expansion I/O modules, subject to module compatibility and system power requirements.

24VDC Controller Power

The controller operates from a nominal 24 VDC Class 2 supply with a documented voltage range of 21.4 to 26.4 VDC.

Applications

Industrial machine control systems
Conveyor and material handling automation
Packaging equipment control
Manufacturing production line automation
Pulse output and motion control applications
High-speed input signal monitoring
DC actuator and equipment control circuits
Industrial automation control panels

Purchase Information

We support online purchase of the Allen-Bradley 2080-L50E-48QBB PLC Controller. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is Allen-Bradley 2080-L50E-48QBB?
Allen-Bradley 2080-L50E-48QBB is a Micro850 programmable logic controller with 48 embedded I/O points, EtherNet/IP communication and 24 VDC controller power.

How many inputs and outputs does 2080-L50E-48QBB provide?
The controller provides 28 digital inputs and 20 digital outputs, for a total of 48 embedded I/O points.

What type of digital inputs does 2080-L50E-48QBB use?
The controller uses 24V DC/AC digital inputs. The documented DC input circuit configuration supports sink/source wiring.

What type of outputs does 2080-L50E-48QBB provide?
The controller provides 20 24V DC source-type transistor outputs rather than relay outputs.

What is the maximum output current?
The documented maximum current per point is 1.0 A at 30°C or 0.3 A at 65°C in standard operation. High-speed operation has a maximum load current of 100 mA.

What power supply does 2080-L50E-48QBB require?
The controller uses a nominal 24 VDC Class 2 power supply with a documented operating voltage range of 21.4-26.4 VDC.

What is the maximum power consumption?
The documented maximum power consumption is 11 W without plug-in or expansion I/O modules and 33 W with plug-in and expansion modules.

Does 2080-L50E-48QBB support EtherNet/IP?
Yes. The controller includes a 10/100 Base-T RJ-45 Ethernet interface supporting EtherNet/IP communication.

Does 2080-L50E-48QBB support high-speed counters and pulse outputs?
Yes. The documented configuration supports up to six embedded high-speed counters and three PTO/PWM channels.

What other communication interfaces are available?
The controller includes an RS-232/RS-485 combination serial port and a USB Type B programming port.

Can 2080-L50E-48QBB support additional I/O modules?
Yes. The controller supports up to five plug-in modules and four expansion I/O modules. Module compatibility and power requirements must be checked before installation.

What should be checked before ordering 2080-L50E-48QBB?
Verify the complete catalog number, 24 VDC supply requirements, 28-input and 20-source-output configuration, output current ratings, communication requirements, expansion module compatibility, programming requirements and installation dimensions against the existing system documentation.
