Four Analog Inputs
The 2080-IF4 provides four analog input channels for acquiring analog signals in Micro800 control applications.
1 / 11
Allen-Bradley

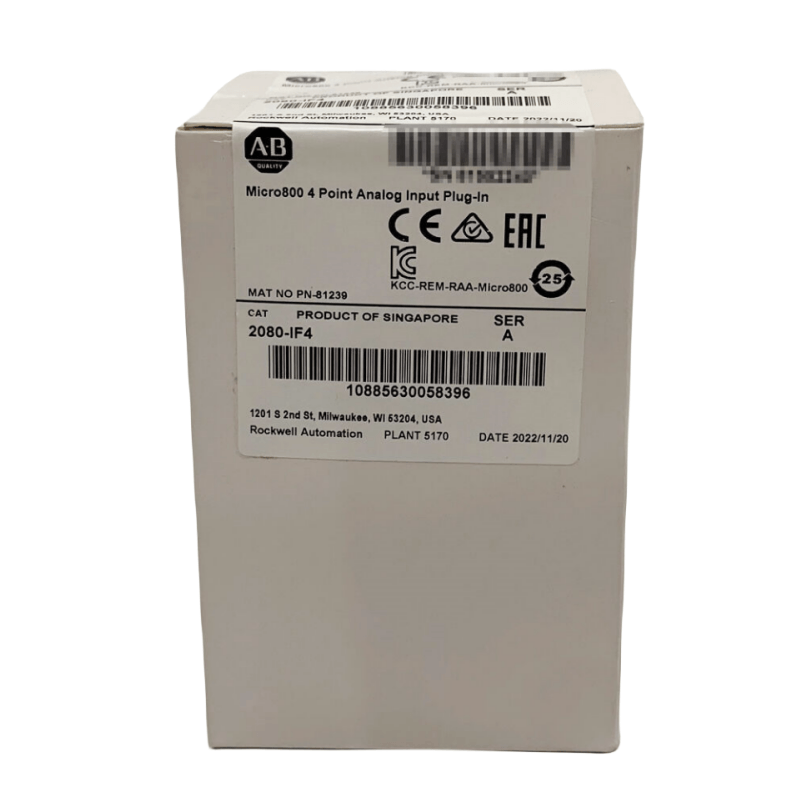

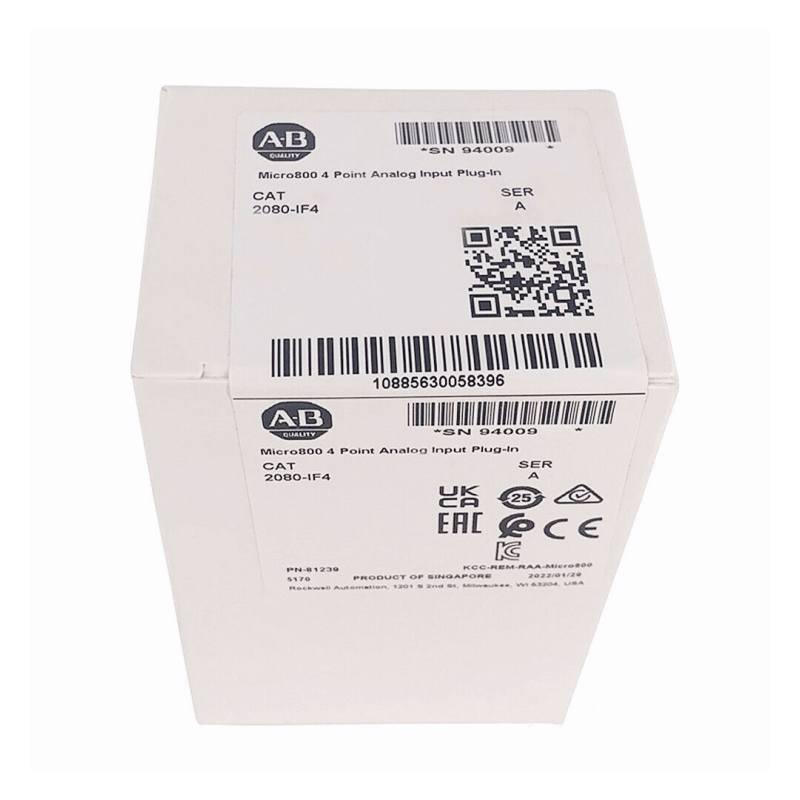

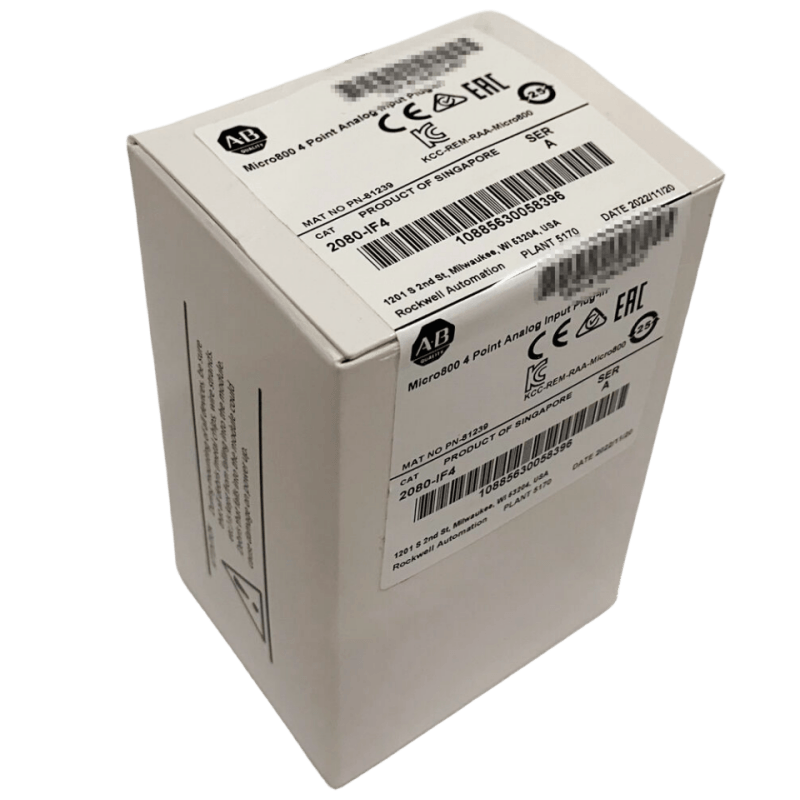

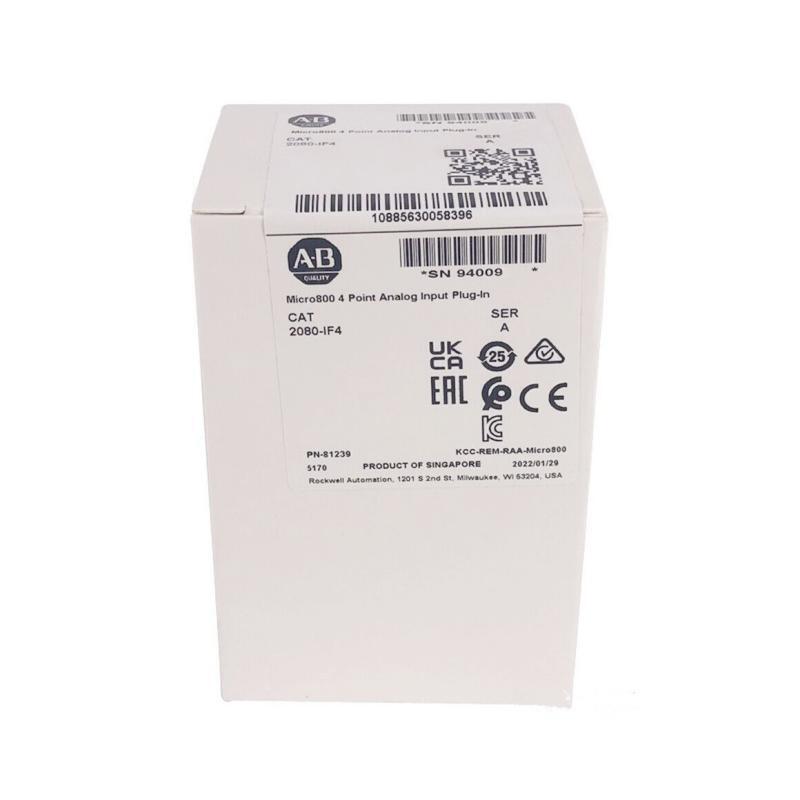

Allen-Bradley 2080-IF4 Analog Input Module 4-Channel 12-Bit
PRODUCT PRICE
USD
$132.51
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 2080-IF4 |
| Product Category | Analog Input Module |
| Product Family | Micro800 |
| Module Type | Expansion I/O |
| Number of Inputs | 4 |
| Input Type | Analog Voltage / Current |
| Voltage Input Range | 0 to 10 V |
| Current Input Range | 0 to 20 mA |
| Resolution | 12-bit |
| Data Format | Left Justified, 12-bit |
| Mounting | DIN Rail |
Key Features
Voltage and Current Signals
The module supports 0 to 10 V voltage inputs and 0 to 20 mA current inputs for connection to compatible industrial field devices.
12-Bit Resolution
Analog input conversion uses 12-bit resolution for measurement and processing within the controller application.
Micro800 Expansion I/O
The module is designed as expansion I/O for compatible Allen-Bradley Micro800 programmable controller systems.
DIN-Rail Installation
The module format supports installation on DIN rail as part of a compatible Micro800 control system.
Industrial Analog Signal Acquisition
Four channels allow compatible sensors, transmitters and other analog field signals to be integrated into compact machine-control applications.
Applications
- Machine automation analog signal acquisition
- Process variable monitoring
- Pressure transmitter signal input
- Level and flow measurement systems
- Industrial sensor data acquisition
- Compact equipment control panels
- Micro800 PLC expansion systems
- General industrial automation applications
Purchase Information
We support online purchase of the Allen-Bradley 2080-IF4 Analog Input Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Allen-Bradley 2080-IF4?
It is a four-channel analog input expansion module in the Allen-Bradley Micro800 product family.
How many analog inputs does the 2080-IF4 provide?
It provides four analog input channels.
What input signals does the 2080-IF4 support?
It supports analog voltage and current signals, including 0 to 10 V and 0 to 20 mA ranges.
What is the analog resolution?
The module provides 12-bit analog input resolution.
Is the 2080-IF4 a digital input module?
No. The 2080-IF4 is an analog input expansion module.
Which Allen-Bradley family does it belong to?
The 2080-IF4 belongs to the Micro800 family of control products.
Can it receive signals from industrial transmitters?
It can receive compatible voltage or current signals from field devices when their output ranges and wiring requirements match the module specifications.
Can the 2080-IF4 generate analog output signals?
No. This model is designed for analog inputs rather than analog outputs.
How is the module installed?
It is designed for installation as expansion I/O in a compatible Micro800 system and supports DIN-rail mounting.
Can all four channels be used simultaneously?
The module provides four analog input channels for use within the supported system configuration.
Is it compatible with every Allen-Bradley PLC?
No. Compatibility should be checked against the specific Micro800 controller and system configuration before ordering.
What should be checked before ordering?
Confirm model 2080-IF4, controller compatibility, required number of channels, voltage or current signal range, wiring requirements and the intended Micro800 system configuration.
