1-Meter HIM Interface Cable
The Allen-Bradley 20-HIM-H10 is a 1 m (39 in.) PowerFlex HIM interface cable designed to connect a compatible human interface module to supported drive or controller equipment for handheld or remote use.
Allen-Bradley

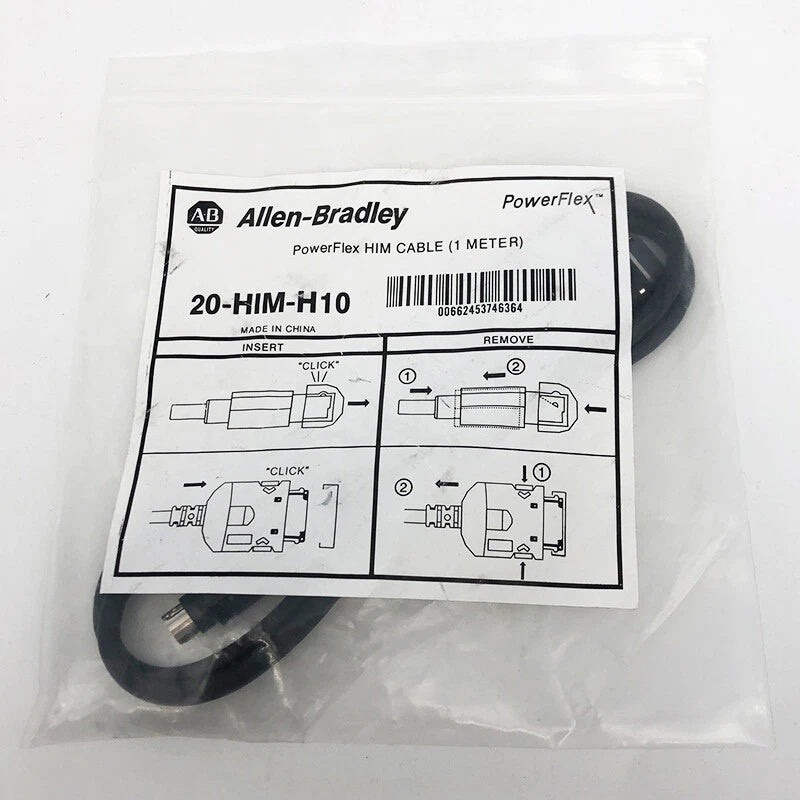

Allen-Bradley 20‑HIM‑H10 PowerFlex HIM Interface Cable 1m
$97.90
Available
PRODUCT GALLERY
01 / 7
Product images for part identification
Allen-Bradley
Allen-Bradley 20‑HIM‑H10 PowerFlex HIM Interface Cable 1m
PRODUCT PRICE
USD
$97.90
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 20‑HIM‑H10 |
| Manufacturer Catalog Number | 20-HIM-H10 |
| Product Category | HIM Interface Cable |
| Product Family | PowerFlex HIM Accessories |
| Accessory Type | Remote HIM Interface Cable Kit |
| Manufacturer Description | PowerFlex Remote HIM Cable |
| Cable Length | 1 m (39 in.) |
| Primary Function | Connects a Compatible Human Interface Module for Handheld or Remote Operation |
| Interface | PowerFlex HIM / DPI Accessory Connection on Compatible Equipment |
| Compatible Equipment Family | Selected PowerFlex 7-Class and PowerFlex 750-Series Drives |
| Other Documented Application | Compatible SMC Controllers and HIM-Enabled Devices as Specified in Their Manuals |
| Compatible HIM Examples | 20-HIM-A3, 20-HIM-A5 and Supported 20-HIM-A6 Models |
| Remote Use | Supported with Compatible HIM and Drive Interface |
| Handheld Use | Supported with Compatible HIM and Drive Interface |
| Extension Accessories | Selected 1202-H Series Male-Female Cable Kits |
| Maximum Extended Cable Run | Up to 10 m Total with Specified Compatible Extension Cables |
| Connector Pinout | Refer to the Applicable HIM and Drive Installation Documentation |
| Standalone Display or Keypad | Not Included; This Part Is a Cable Accessory |
| Motor Drive Power Cable | No |
| USB Programming Cable | No |
| Manufacturer Product Identifier | 20-HIM-H10 |
| Manufacturer UPC | 662453746364 |
| Product Lifecycle Status | Active |
| Manufacturer Documentation | 20HIM-UM001 Human Interface Module User Manual; 750-TD001 PowerFlex 750-Series Technical Data |
Key Features
Handheld HIM Operation
The cable provides the interface required when a supported PowerFlex HIM is removed from its normal mounting location and used as a handheld operator or maintenance interface. Available functions depend on the attached HIM and the connected device.
Remote HIM Installation Support
The 20-HIM-H10 forms part of compatible remote HIM connection arrangements, allowing the user interface to be positioned separately from the drive under the installation conditions specified by Rockwell Automation.
PowerFlex Accessory Compatibility
Rockwell Automation lists the cable among PowerFlex HIM accessories, including applications involving selected PowerFlex 7-Class and 750-Series products. Always verify the drive model, HIM catalog number and supported connection method.
Extension Cable Options
For installations requiring greater separation, selected 1202-H series male-female extension cables can be used with the 20-HIM-H10 within the manufacturer's specified total cable length limit of 10 m.
Dedicated Interface Accessory
This part is a HIM interface cable rather than a display, keypad, USB cable or motor power cable. It is used with separately selected compatible equipment and does not independently provide drive programming or control functions.
Applications
- Handheld operation of compatible PowerFlex human interface modules
- Remote HIM connections for selected industrial variable frequency drives
- Drive parameter configuration using a compatible external HIM
- Motor drive diagnostic and fault viewing through a connected HIM
- Industrial drive commissioning and maintenance access
- Compatible PowerFlex drive control cabinet installations
- SMC controller HIM connections where specified by the manufacturer
- Replacement of damaged or missing 1-meter HIM interface cables
Purchase Information
We support online purchase of the Allen-Bradley 20‑HIM‑H10 HIM Interface Cable. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 20-HIM-H10?
The Allen-Bradley 20-HIM-H10 is a 1-meter PowerFlex HIM interface cable accessory used to connect compatible human interface modules for handheld or remote operation. It is not a complete HIM display or keypad.
How long is the 20-HIM-H10 cable?
The manufacturer specifies a cable length of 1 m, approximately 39 inches. This is the interface cable length, not the maximum distance achievable with supported extension cables.
Is 20-HIM-H10 a human interface module?
No. The 20-HIM-H10 is the connection cable. A compatible HIM, such as a supported 20-HIM-A3, 20-HIM-A5 or 20-HIM-A6, is a separate component that provides the display and operating controls.
Which PowerFlex drives can use 20-HIM-H10?
Rockwell Automation documents its use with selected PowerFlex 7-Class and 750-Series HIM configurations. Compatibility must be confirmed using the exact drive catalog number, HIM type and associated installation manual.
Can 20-HIM-H10 be used with a handheld HIM?
Yes. It is specifically listed as an interface cable for supported handheld or remote HIM arrangements. The HIM's actual programming, monitoring and control capabilities depend on the connected equipment.
Can the 20-HIM-H10 cable be extended?
Yes. Rockwell Automation lists selected 1202-H series male-female extension cable kits for use with the 20-HIM-H10, subject to a total maximum cable length of 10 m in the documented configurations.
What is the difference between 20-HIM-H10 and 1202-H10?
The 20-HIM-H10 is the 1 m HIM interface cable required for supported handheld or remote HIM use. The 1202-H10 is a separate 1 m male-female extension cable kit that can be used in compatible extended-cable arrangements. They are not the same accessory.
Does 20-HIM-H10 include a keypad or LCD display?
No. The catalog number identifies a cable accessory only. A display and keypad must be supplied by a compatible separately selected human interface module.
Can 20-HIM-H10 connect directly to a computer through USB?
No. The 20-HIM-H10 is not identified as a USB programming cable. Its intended function is to provide the specified interface between compatible HIM and drive equipment, not a general-purpose PC programming connection.
Can this cable be used for drive parameter programming?
When connected to a compatible drive and HIM, the cable enables access to the HIM's available parameter configuration functions. The cable itself contains no display, keypad or standalone programming functionality.
Can 20-HIM-H10 be used with an SMC controller?
Selected Rockwell Automation SMC controller documentation specifies the 20-HIM-H10 for temporary connection of a compatible HIM. The particular SMC model, port and supported HIM firmware must be verified before installation.
What should be checked before ordering 20-HIM-H10?
Confirm the manufacturer catalog number 20-HIM-H10, required 1 m cable length, compatible HIM model, PowerFlex drive or controller model, designated HIM interface port, handheld or remote mounting arrangement, and whether any separately purchased 1202-H extension cable is required. Do not confuse this interface cable with a complete HIM, USB programming accessory or motor power cable.
