16 Digital Outputs
The 1769-OB16 provides 16 solid-state DC output points in a single output group for industrial control applications.

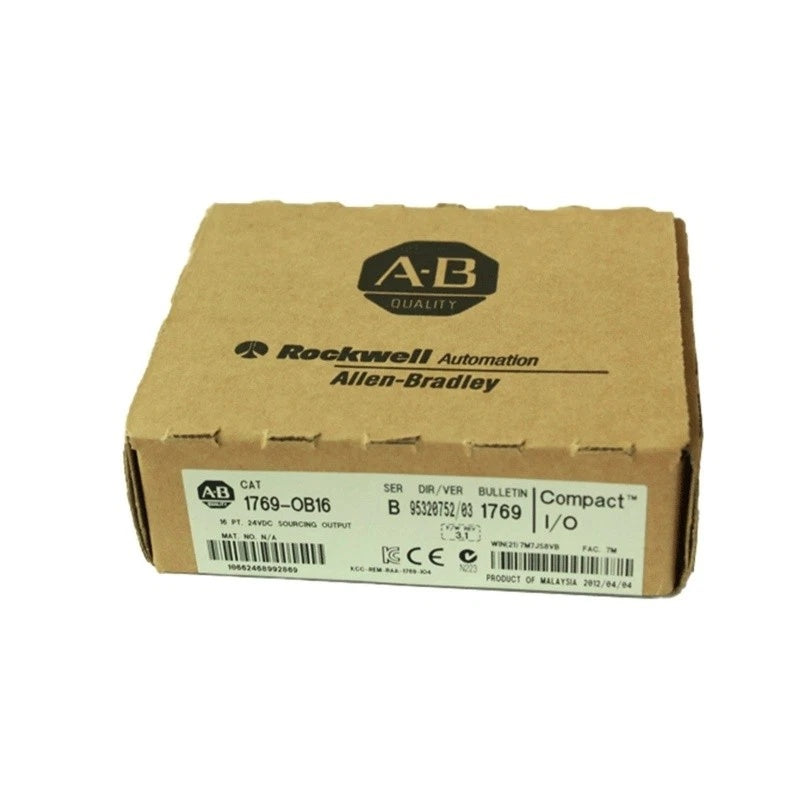

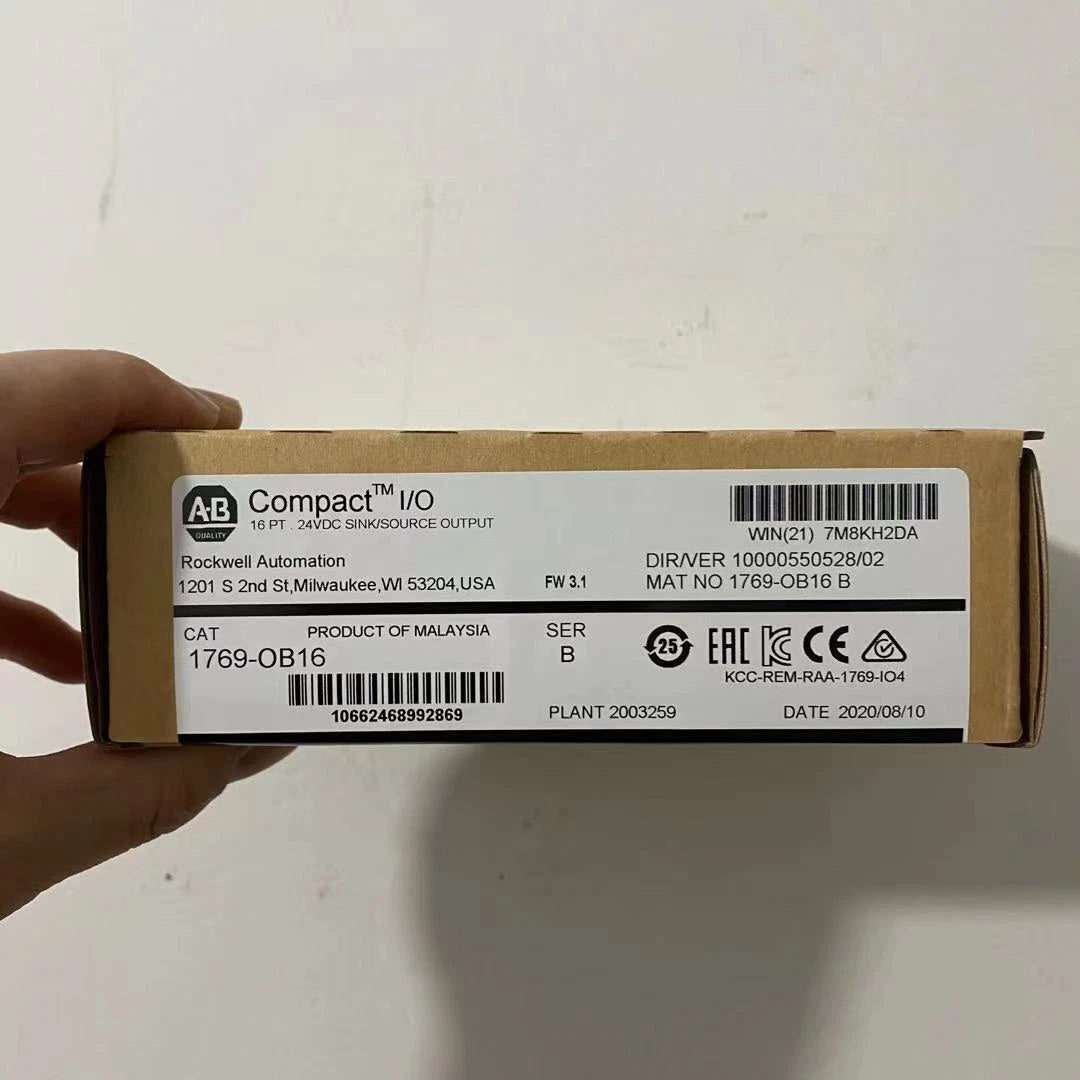

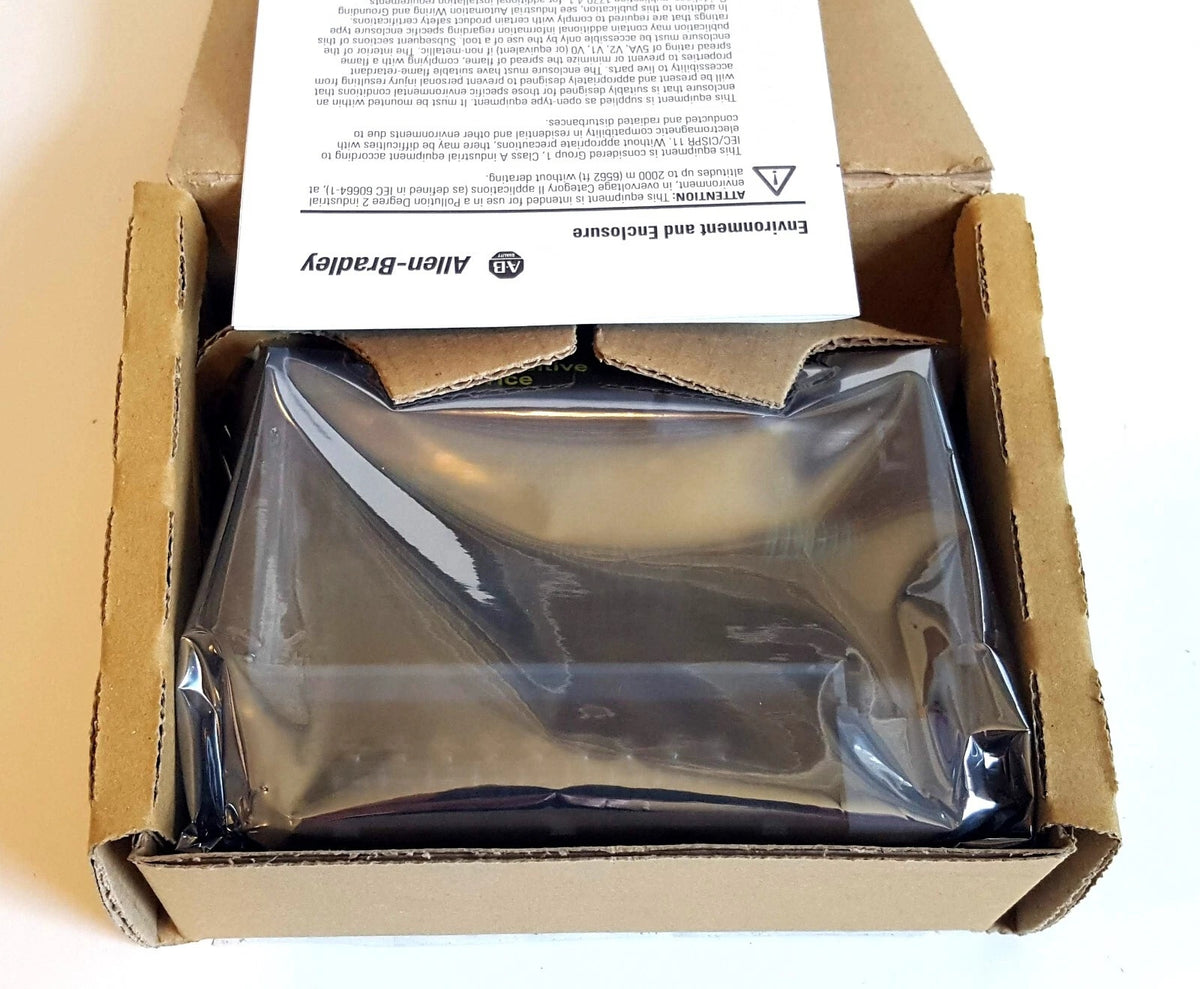

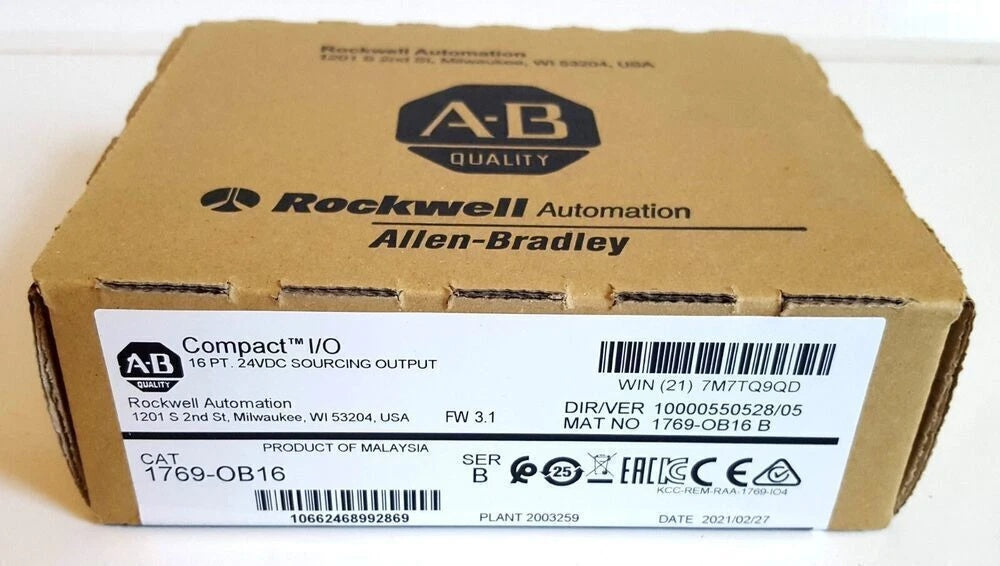

Allen-Bradley 1769-OB16 Compact I/O Output Module 16-Point 24V DC
Available in stock (400)
Regular price
$136.58
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 1769-OB16 |
| Product Category | Output Module |
| Product Family | Compact I/O |
| Module Type | Digital Solid-State Sourcing Output Module |
| Number of Outputs | 16 |
| Voltage Category | 24 V DC Source |
| Operating Voltage Range | 20.4-26.4 V DC |
| Outputs per Group | 16 |
| Output Delay | 0.1 ms On; 1.0 ms Off |
| Current Draw | 200 mA at 5.1 V DC |
| Heat Dissipation | 2.11 W Maximum |
| Off-State Leakage Current | 1.0 mA Maximum at 26.4 V DC |
| On-State Current | 1.0 mA Minimum |
| On-State Voltage Drop | 1.0 V DC Maximum at 1 A |
| Current per Point | 0.5 A Maximum at 60°C; 1.0 A Maximum at 30°C |
| Current per Module | 4.0 A Maximum at 60°C; 8.0 A Maximum at 30°C |
| Isolation | 1200 V AC for 1 s or 1697 V DC for 1 s |
| Mounting | DIN Rail or Panel |
| Slot Width | 1 |
Key Features
24 V DC Sourcing Outputs
The module uses sourcing outputs with a documented operating voltage range of 20.4 to 26.4 V DC.
Compact I/O Platform
The 1769-OB16 belongs to the Allen-Bradley 1769 Compact I/O family for modular automation system configurations.
Fast Output Switching
Documented output delays are 0.1 ms for turn-on and 1.0 ms for turn-off with applicable loads.
Defined Output Current Ratings
Maximum current per point is 0.5 A at 60°C or 1.0 A at 30°C, subject to the documented module derating requirements.
Flexible Mounting
The module supports DIN-rail or panel mounting within applicable 1769 Compact I/O system installations.
Applications
- 24 V DC actuator control
- Relay and contactor control circuits
- Solenoid valve control
- Machine automation systems
- Production line control equipment
- Material handling systems
- Compact I/O output expansion
- Industrial control panel assemblies
Purchase Information
We support online purchase of the Allen-Bradley 1769-OB16 Output Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 1769-OB16?
It is a 16-point 24 V DC sourcing solid-state output module in the 1769 Compact I/O family.
How many outputs does 1769-OB16 provide?
The module provides 16 digital output points in one output group.
What type of outputs does it use?
The 1769-OB16 uses 24 V DC sourcing solid-state outputs.
What is the operating voltage range?
The documented operating voltage range is 20.4 to 26.4 V DC.
What are the output switching delays?
The documented output delays are 0.1 ms for turn-on and 1.0 ms for turn-off.
What is the current draw from the 1769 bus?
The documented current draw is 200 mA at 5.1 V DC.
What is the maximum output current per point?
The documented maximum is 0.5 A per point at 60°C or 1.0 A per point at 30°C, subject to applicable derating requirements.
What is the maximum current for the complete module?
The documented maximum is 4.0 A at 60°C or 8.0 A at 30°C.
Can the 1769-OB16 be DIN-rail mounted?
Yes. The documented mounting options include DIN-rail and panel mounting.
Is 1769-OB16 an input module?
No. It is a digital sourcing output module used to control 24 V DC field loads.
Can 1769-OB16 replace another 1769 output module?
It can be considered after the complete model number and technical requirements have been checked. Output type, voltage range, channel count, current ratings, wiring and system requirements should be verified against existing system requirements.
What should be checked before ordering?
The complete catalog number, 24 V DC sourcing requirement, 16-point configuration, load current, temperature derating, power-supply distance rating, mounting and existing 1769 system requirements should be checked before ordering.
