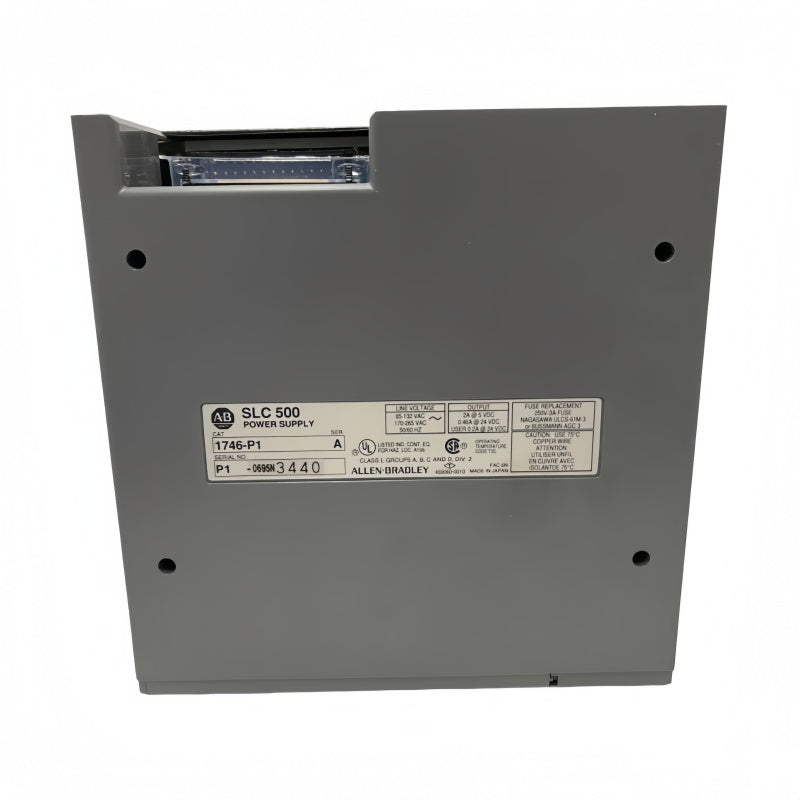

Allen-Bradley 1746-P1 120/240V AC SLC 500 Rack-Mount Power Supply Module
Available in stock (200)
Allen-Bradley 1746-P1 120/240V AC SLC 500 Rack-Mount Power Supply Module
The Allen-Bradley 1746-P1 Power Supply Module is a rack-mount power supply for the Allen-Bradley SLC 500 modular control platform. It supplies internal 5V DC and 24V DC power to processors and I/O modules installed in an SLC 500 chassis. The module accepts selectable 120V AC or 240V AC input and includes a power status indicator for operating confirmation.
Product Features
The Allen-Bradley 1746-P1 Power Supply Module mounts directly to an SLC 500 chassis and supports integration with compatible SLC processors, communication adapters, and I/O modules. Its selectable AC input arrangement supports installation in control panels with either 120V AC or 240V AC supply systems. The integrated 24V DC user-power terminals can supply compatible external sensors or peripheral loads within the specified capacity. This design supports OEM machine construction, existing SLC 500 system maintenance, and replacement of an installed 1746-P1 unit.
Technical Specifications
| Brand | Allen-Bradley |
| Model | 1746-P1 |
| Product Category | Power Supply Module |
| Product Type | Rack-Mount Power Supply |
| Product Family | SLC 500 |
| Operating Voltage | 120/240V AC, selectable |
| Frequency Rating | 47 to 63 Hz |
| Internal Current Capacity | 2.0 A at 5V DC; 0.46 A at 24V DC |
| User Power Output | 24V DC, 200 mA maximum |
| Connection Type | Chassis-mounted with line-power and user-power terminals |
| Special Feature | Input-voltage selection jumper and power status indicator |
Product Advantages
The Allen-Bradley 1746-P1 Power Supply Module provides the chassis power required by compatible SLC 500 hardware while maintaining a compact rack-mounted configuration. Direct chassis installation helps simplify system wiring and panel organization. The selectable input-voltage jumper supports use with two common AC supply levels, while the status indicator assists technicians during inspection and troubleshooting. For facilities operating installed SLC 500 equipment, the module can support maintenance planning and replacement procurement based on the existing chassis power requirements.
Applications
The Allen-Bradley 1746-P1 Power Supply Module is used with compatible SLC 500 chassis-based control systems in factory automation, machine equipment, OEM control panels, production machinery, and maintenance of existing SLC 500 installations. Power-supply selection must be based on the total 5V DC and 24V DC current requirements of the processor, communication equipment, and I/O modules installed in the chassis.
