2 Analog Current Outputs
The 1734-OE2C provides two single-ended, non-isolated analog current output channels.

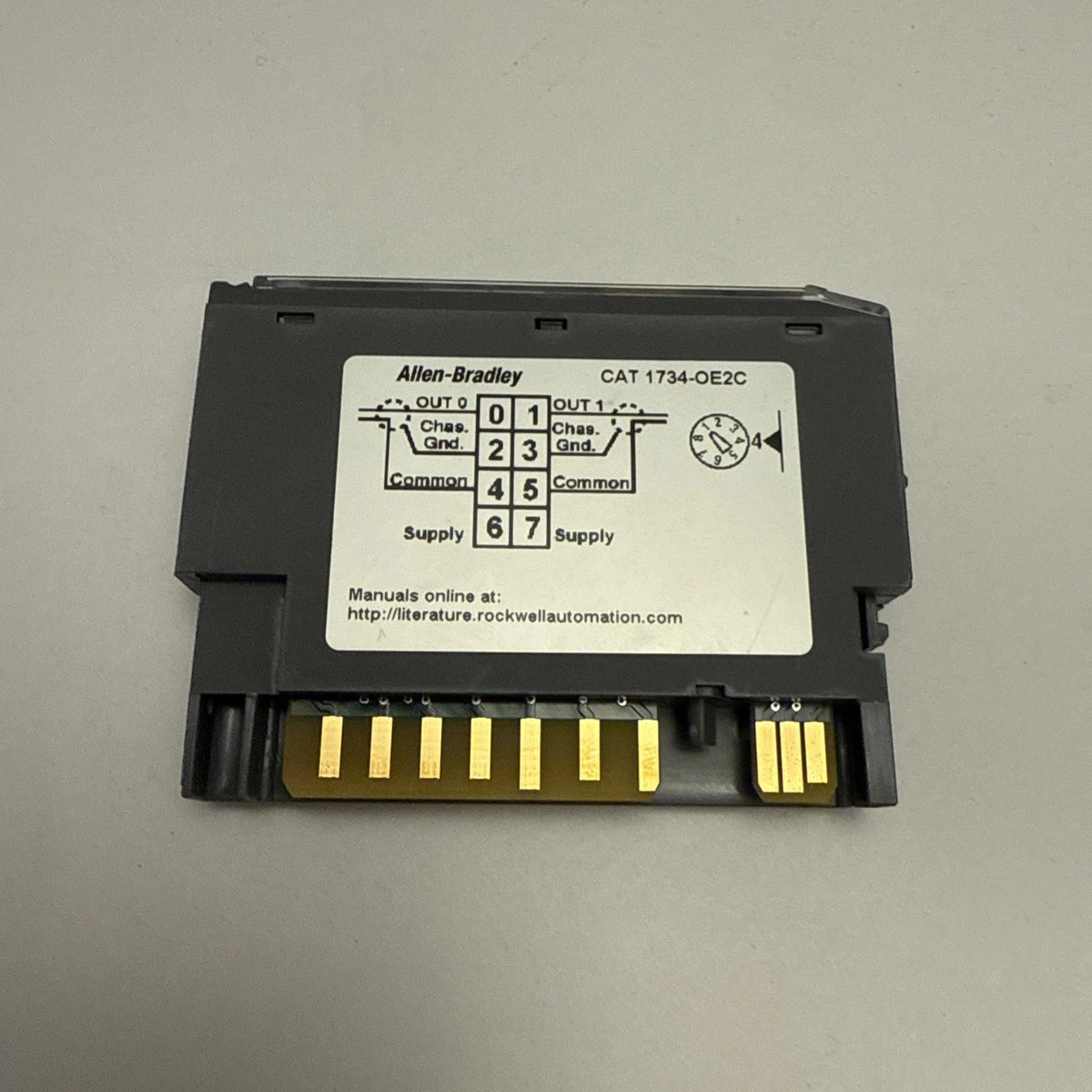

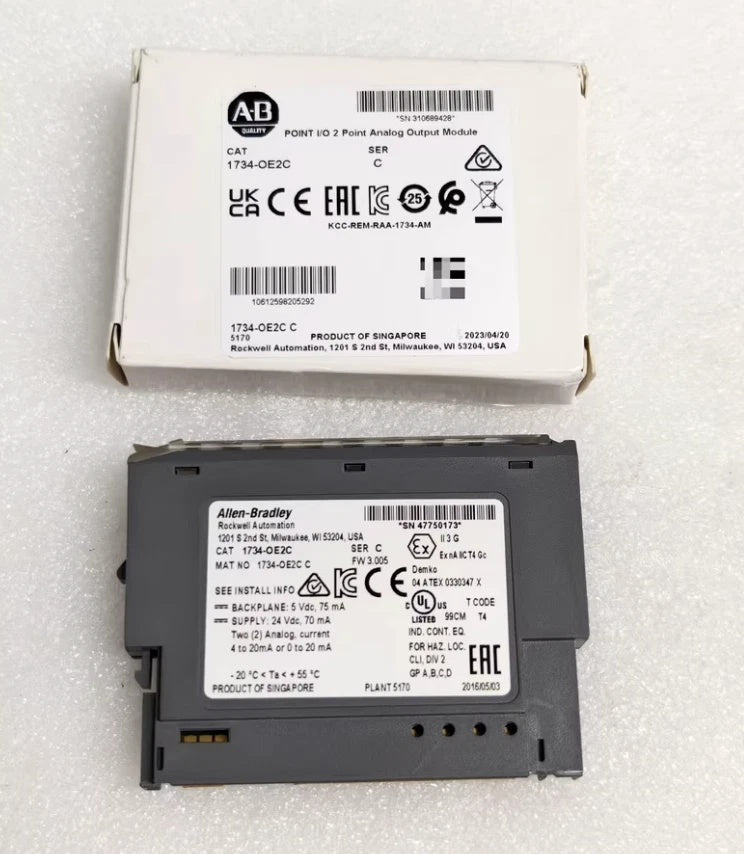

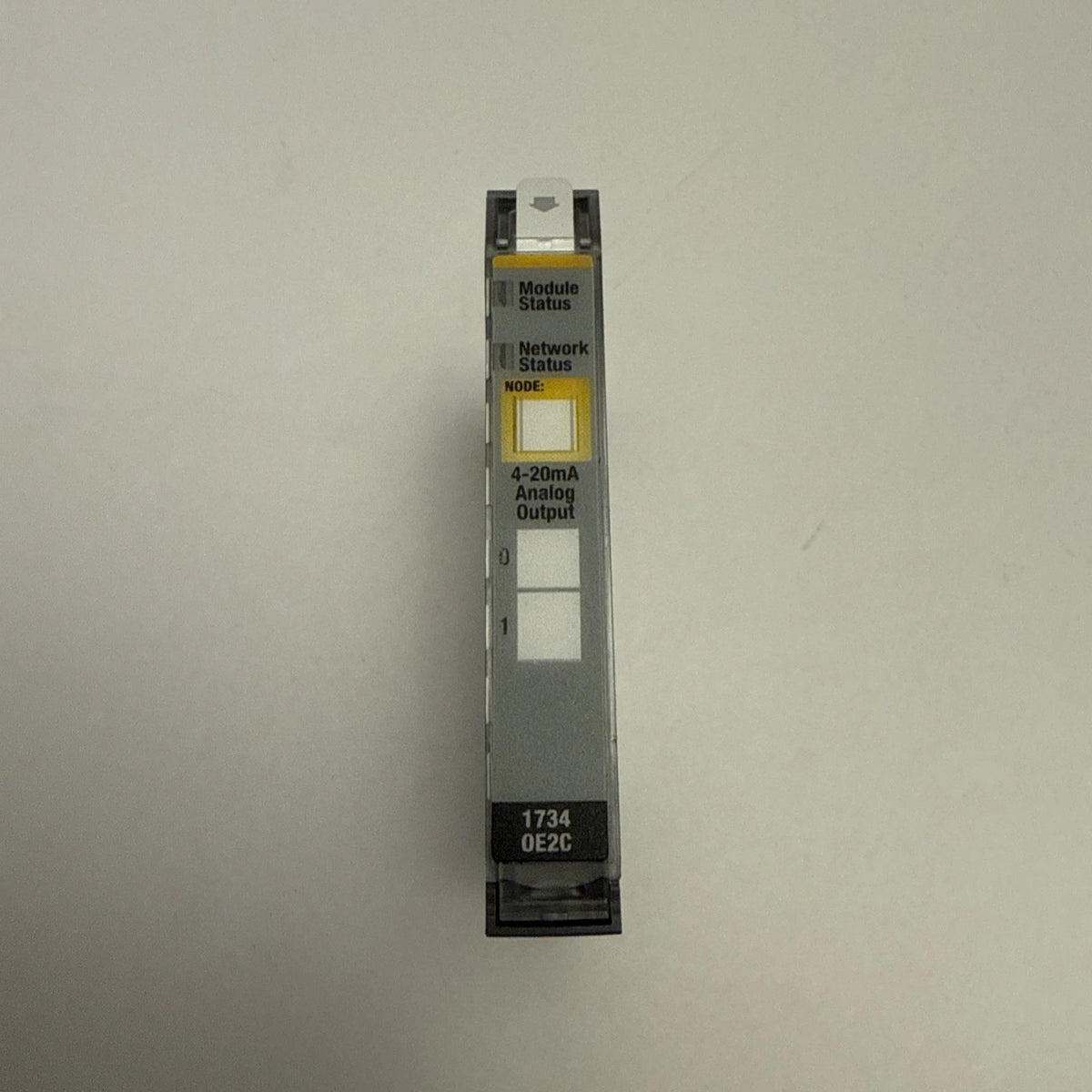

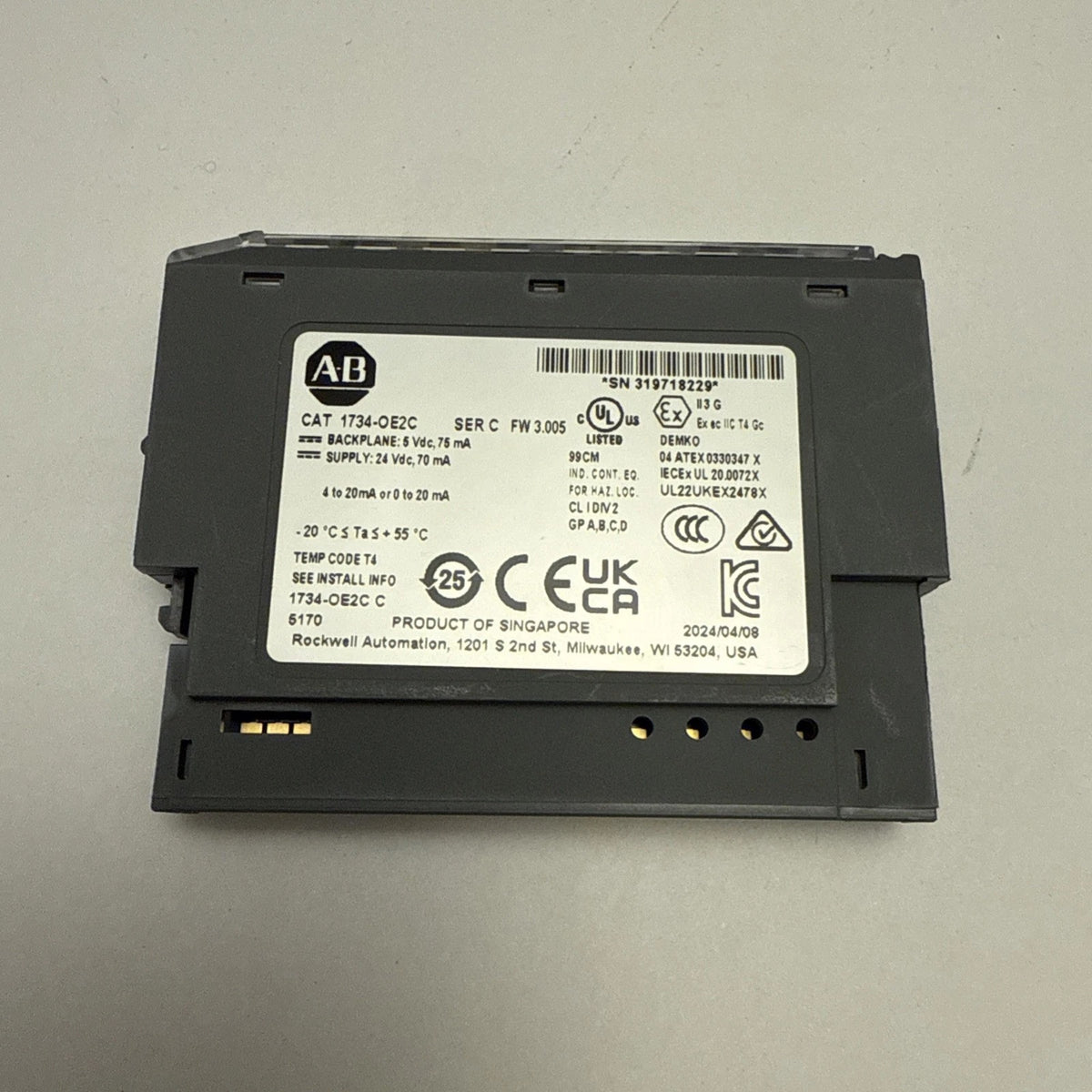

Allen-Bradley 1734-OE2C Analog Output Module 2-Channel 4-20mA 24VDC
Available in stock (200)
Regular price
$99.74
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 1734-OE2C |
| Product Category | Analog Output Module |
| Product Family | POINT I/O |
| Module Type | Analog Current Output Module |
| Number of Outputs | 2 Single-Ended, Non-Isolated Current Outputs |
| Output Range | 4…20 mA or 0…20 mA |
| Field Power Supply Voltage | 24 VDC Nominal |
| Field Power Voltage Range | 10…28.8 VDC |
| Output Resolution | 13-bit over 0…21 mA |
| Absolute Accuracy | 0.1% Full Scale at 25°C |
| Resistive Load | 0…750 Ω |
| Digital-to-Analog Conversion Rate | 16 µs |
| POINTBus Current | 75 mA at 5 VDC |
| Isolation Voltage | 50 V Continuous |
| Keyswitch Position | 4 |
Key Features
4–20mA or 0–20mA
The module supports configurable 4…20 mA and 0…20 mA output ranges.
24VDC Field Power
The documented nominal field power supply is 24 VDC with a 10…28.8 VDC operating range.
13-Bit Resolution
Output resolution is specified as 13 bits over the 0…21 mA range.
0.1% Full-Scale Accuracy
Absolute accuracy is specified as 0.1% of full scale at 25°C.
POINT I/O Platform
The 1734-OE2C belongs to the Allen-Bradley POINT I/O distributed I/O family.
Applications
- Industrial process control systems
- Analog actuator control
- Control valve signal output
- Variable frequency drive reference signals
- Distributed I/O systems
- Machine automation systems
- PLC-based control panels
- 4–20 mA current loop applications
Purchase Information
We support online purchase of the Allen-Bradley 1734-OE2C Analog Output Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 1734-OE2C?
Allen-Bradley 1734-OE2C is a POINT I/O analog current output module with two output channels.
How many outputs does 1734-OE2C have?
It provides two single-ended, non-isolated analog current outputs.
What output ranges does 1734-OE2C support?
The documented output ranges are 4…20 mA and 0…20 mA.
What field power voltage does 1734-OE2C use?
The nominal field power supply is 24 VDC.
What is the field power voltage range?
The documented field power voltage range is 10…28.8 VDC.
What is the output resolution of 1734-OE2C?
The documented output resolution is 13 bits over the 0…21 mA range.
What is the accuracy of 1734-OE2C?
Absolute accuracy is specified as 0.1% of full scale at 25°C.
What resistive load does the current output support?
The documented resistive load range is 0…750 Ω.
What is the digital-to-analog conversion rate?
The documented digital-to-analog conversion rate is 16 µs.
What POINTBus current does 1734-OE2C require?
The documented POINTBus current is 75 mA at 5 VDC.
Can 1734-OE2C be used in an existing POINT I/O system?
It can be considered after the required output range, field power, POINTBus capacity, terminal base, wiring, adapter configuration and control-system requirements have been checked.
What should be checked before ordering 1734-OE2C?
Check the complete 1734-OE2C catalog number, required 2-channel current output configuration, 4…20 mA or 0…20 mA signal range, 24 VDC field power requirements, terminal base requirements and system configuration before ordering.
